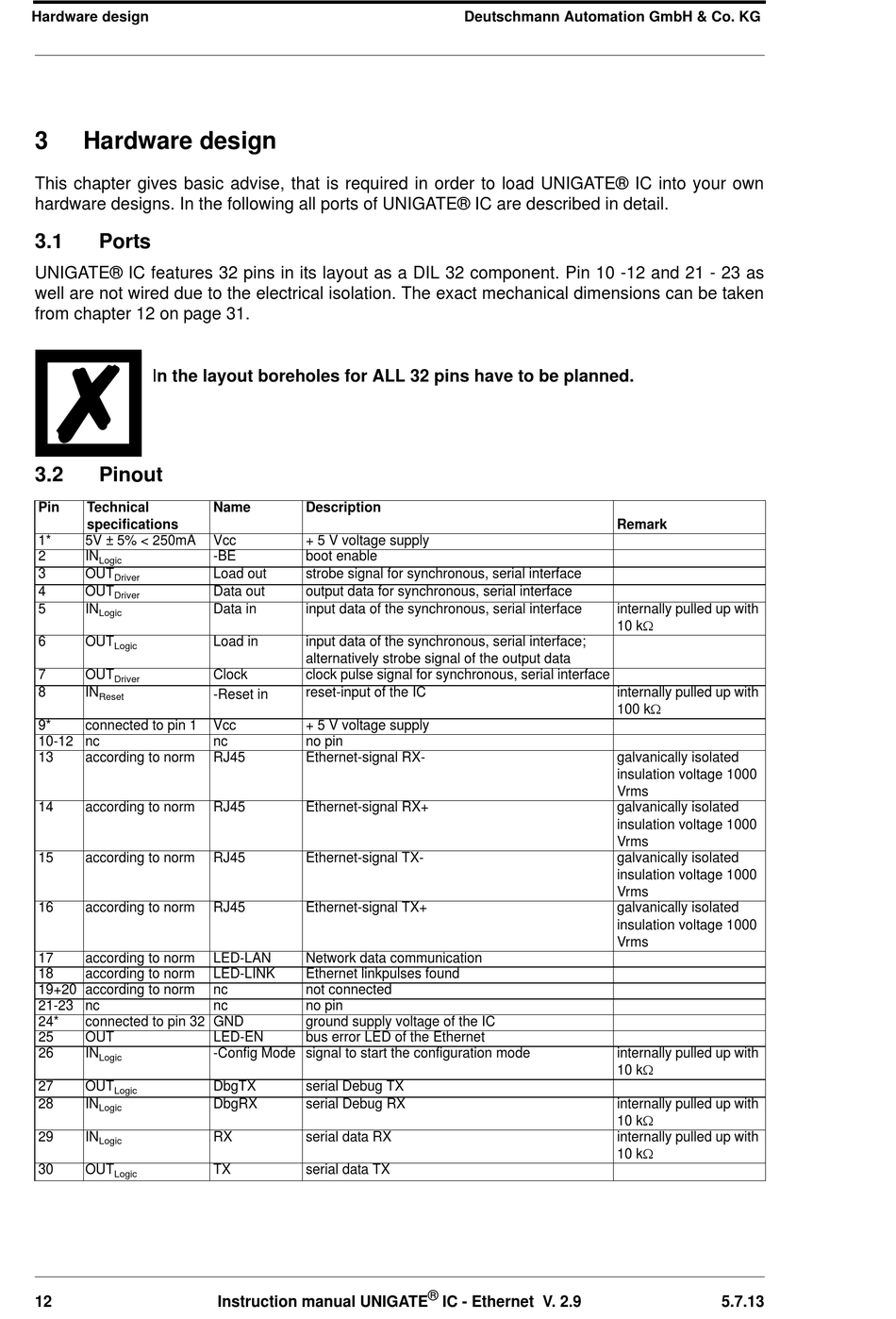

Hardware design

3 Hardware design
This chapter gives basic advise, that is required in order to load UNIGATE® IC into your own
hardware designs. In the following all ports of UNIGATE® IC are described in detail.
3.1

Ports

UNIGATE® IC features 32 pins in its layout as a DIL 32 component. Pin 10 -12 and 21 - 23 as
well are not wired due to the electrical isolation. The exact mechanical dimensions can be taken
from chapter 12 on page 31.
In the layout boreholes for ALL 32 pins have to be planned.
3.2

Pinout

Pin Technical
specifications
1* 5V ± 5% < 250mA
2 IN
Logic
3 OUT
Driver
4 OUT
Driver
5 IN
Logic
6 OUT
Logic
7 OUT
Driver
8 IN
Reset
9* connected to pin 1
10-12 nc
13 according to norm
14 according to norm
15 according to norm
16 according to norm
17 according to norm
18 according to norm
19+20 according to norm
21-23 nc
24* connected to pin 32 GND
25 OUT
26 IN
Logic
27 OUT
Logic
28 IN
Logic
29 IN
Logic
30 OUT
Logic
12
Name Description
Vcc + 5 V voltage supply
-BE boot enable
Load out strobe signal for synchronous, serial interface
Data out output data for synchronous, serial interface
Data in input data of the synchronous, serial interface
Load in input data of the synchronous, serial interface;
alternatively strobe signal of the output data
Clock clock pulse signal for synchronous, serial interface
reset-input of the IC
-Reset in
Vcc + 5 V voltage supply
nc no pin
RJ45 Ethernet-signal RX-
RJ45 Ethernet-signal RX+
RJ45 Ethernet-signal TX-
RJ45 Ethernet-signal TX+
LED-LAN Network data communication
LED-LINK Ethernet linkpulses found
nc not connected
nc no pin
ground supply voltage of the IC
LED-EN bus error LED of the Ethernet
-Config Mode signal to start the configuration mode
DbgTX serial Debug TX
DbgRX serial Debug RX
RX serial data RX
TX serial data TX
Instruction manual UNIGATE
Deutschmann Automation GmbH & Co. KG
®
IC - Ethernet V. 2.9
Remark
internally pulled up with
10 k
internally pulled up with
100 k
galvanically isolated 
insulation voltage 1000
Vrms
galvanically isolated 
insulation voltage 1000
Vrms
galvanically isolated 
insulation voltage 1000
Vrms
galvanically isolated 
insulation voltage 1000
Vrms
internally pulled up with
10 k
internally pulled up with
10 k
internally pulled up with
10 k
5.7.13
