Hardware-ports and light-emitting diodes (LED)

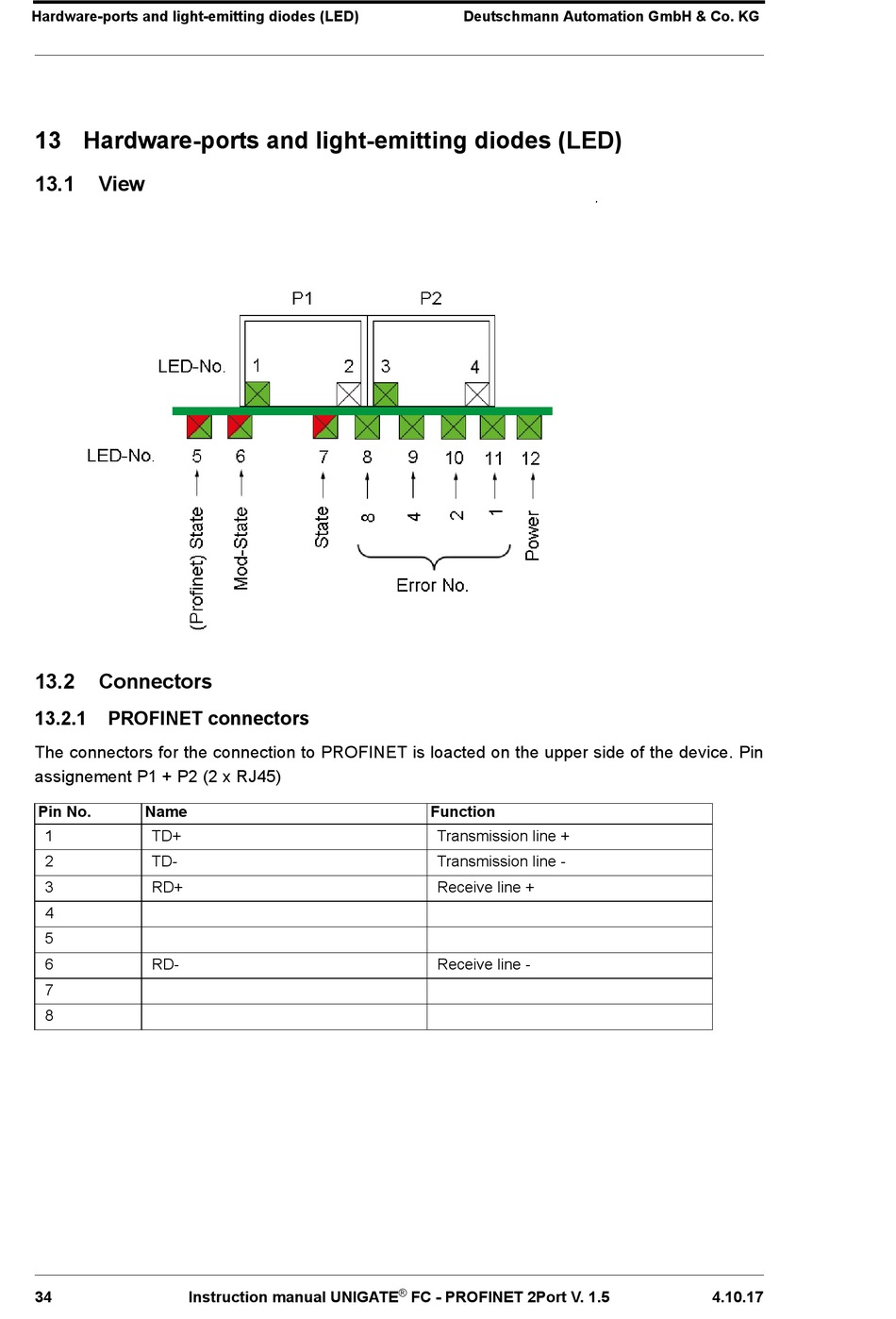

13 Hardware-ports and light-emitting diodes (LED)

13.1

13.2

13.2.1

The connectors for the connection to PROFINET is loacted on the upper side of the device. Pin

assignement P1 + P2 (2 x RJ45)

Pin No.

Name

TD+

TD-

RD+

RD-



Instruction manual UNIGATE



Function

Transmission line +

Transmission line -

Receive line +

Receive line -

FC - PROFINET 2Port V. 1.5

Deutschmann Automation GmbH & Co. KG

4.10.17
