3.2 Assembly

3.2.1 Mounting in rack

The Teldat Connect-4GE cannot be mounted in a rack. However, there are other types of mounting.

3.2.2 Standalone

The Teldat Connect-4GE can be placed as a standalone on a flat, stable surface.
Make sure there is enough space around the router for ventilation purposes and that electricity cables can reach it.

3.2.3 Wall mounting

The Teldat Connect-4GE can be mounted on the wall.
There are two slots on the underside of the device for wall mounting. You can see this under
page 5.
We recommend the following accessories, valid for solid walls and Gypsum board (plaster) walls:

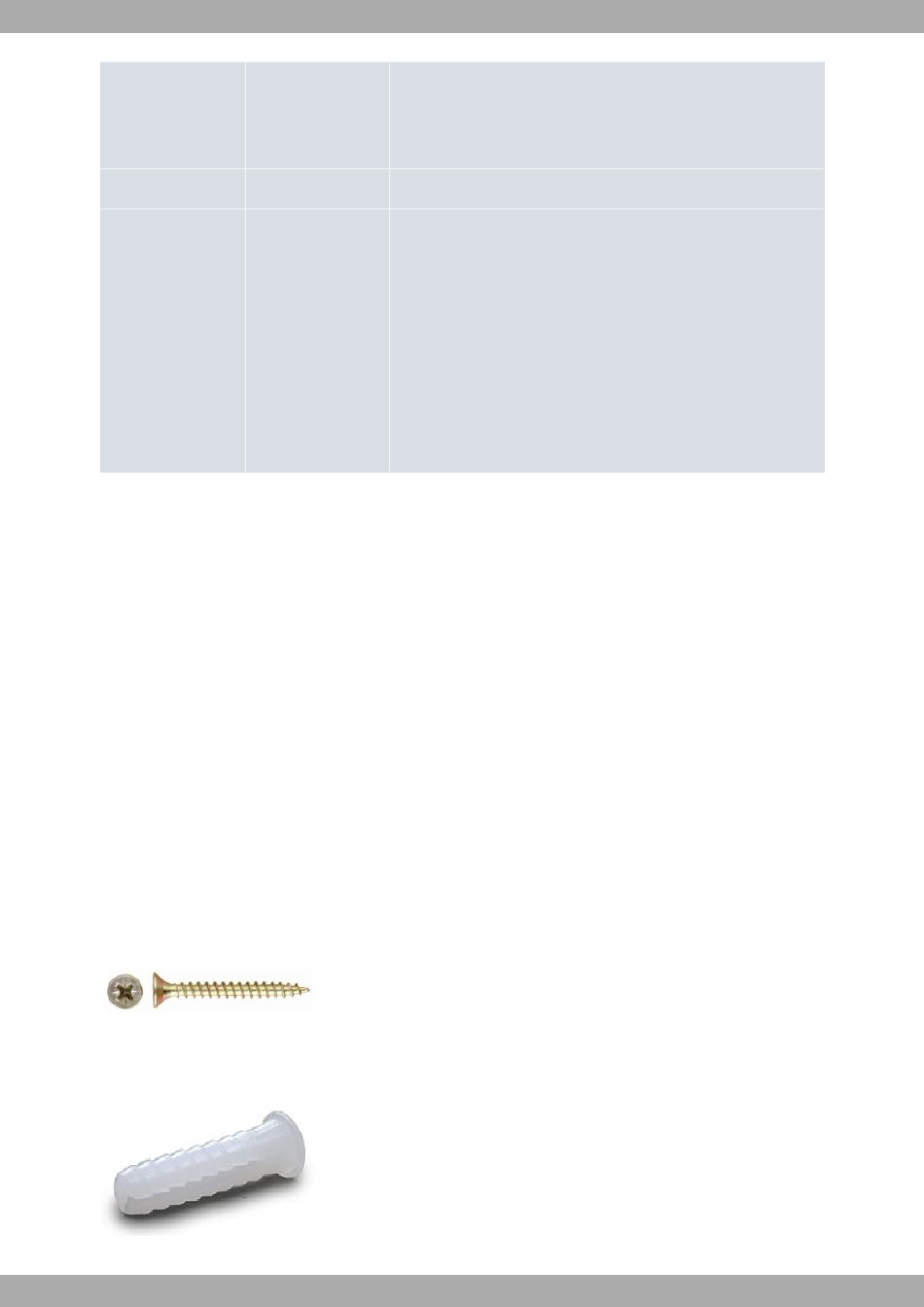

• 2 screws [COACH SCREW HEAD 90 DEGR.POZIDR. 3,5x30]
Fig. 7: Screw
• 2 wall anchors: [WHITE STRIATED WALL ANCHOR DIAM.8mm]
Fig. 8: Wall anchor
Teldat Connect-4GE Router
Tricolor Green -> connected. Blinking: connection data activity.
Amber -> blinking: auto-test.
Red -> disconnected.
Monochrome green Device ON/OFF. This lights up when connected to the power source.
Tricolor Off -> system stopped.
Red -> interface is unavailable because it is installing, not enabled
(shutdown) or due to auto-test failure.
Yellow -> idle.
• Rapid blinking. It hasn't registered in the network or the quality is
insufficient.
• Slow blinking. GSM connection (GPRS).
• Steady. WCDMA (UMTS/HSDPA) or LTE connection.
Green -> connected. Blinking: connection data activity.
3 Components and Power Supply
Underside Panel on
