Caution
The screws must go into a wall stud (wood) or a wall anchor of the appropriate type for the wall. Screws
into drywall are not strong enough to mount the router.

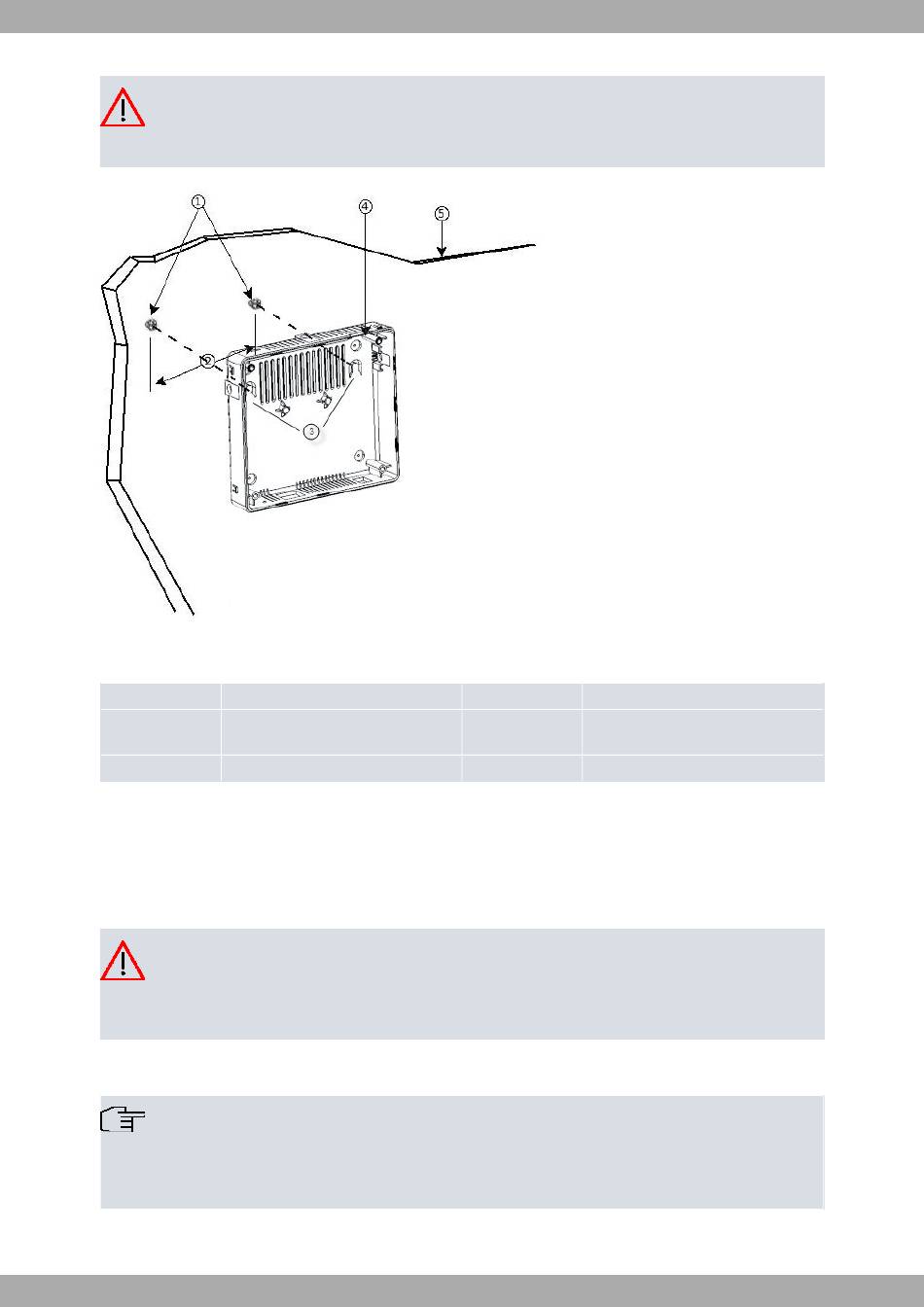

Fig. 9: Wall-mounting features on the Teldat Connect-4GE router
The above figure shows the wall-mounting features on the Teldat Connect-4GE router.
1
3
5
To mount the router on a wall or other surface, follow these steps:
Procedure
Step 1 Install the two screws (3.5x30) horizontally apart on a wall or any other vertical surface.
The screws should protrude 0.6 cm (0.25 inch) from the surface of the wall.
Caution
If you install the screws in drywall, use hollow-wall anchors (8mm – 5/16 inch) to secure the screws. If
the screws are not properly anchored, the strain of the cables connected to the router back panel could
pull the router from the wall.
Step 2 Hang the router on the screws. This is the appropriate orientation for a safe use. (See Figure 9.)
Note
• The accessories to mount the device on the wall are not provided in the package and must be ac-
quired separately.
• The accessories must match the kind of wall and have to support the weight of the device.
8
Wall screws
Chassis mounting holes (on the un-
derside)
Mounting surface
2 8,8 cm (3.46 inches)
4 Router chassis
