Installation

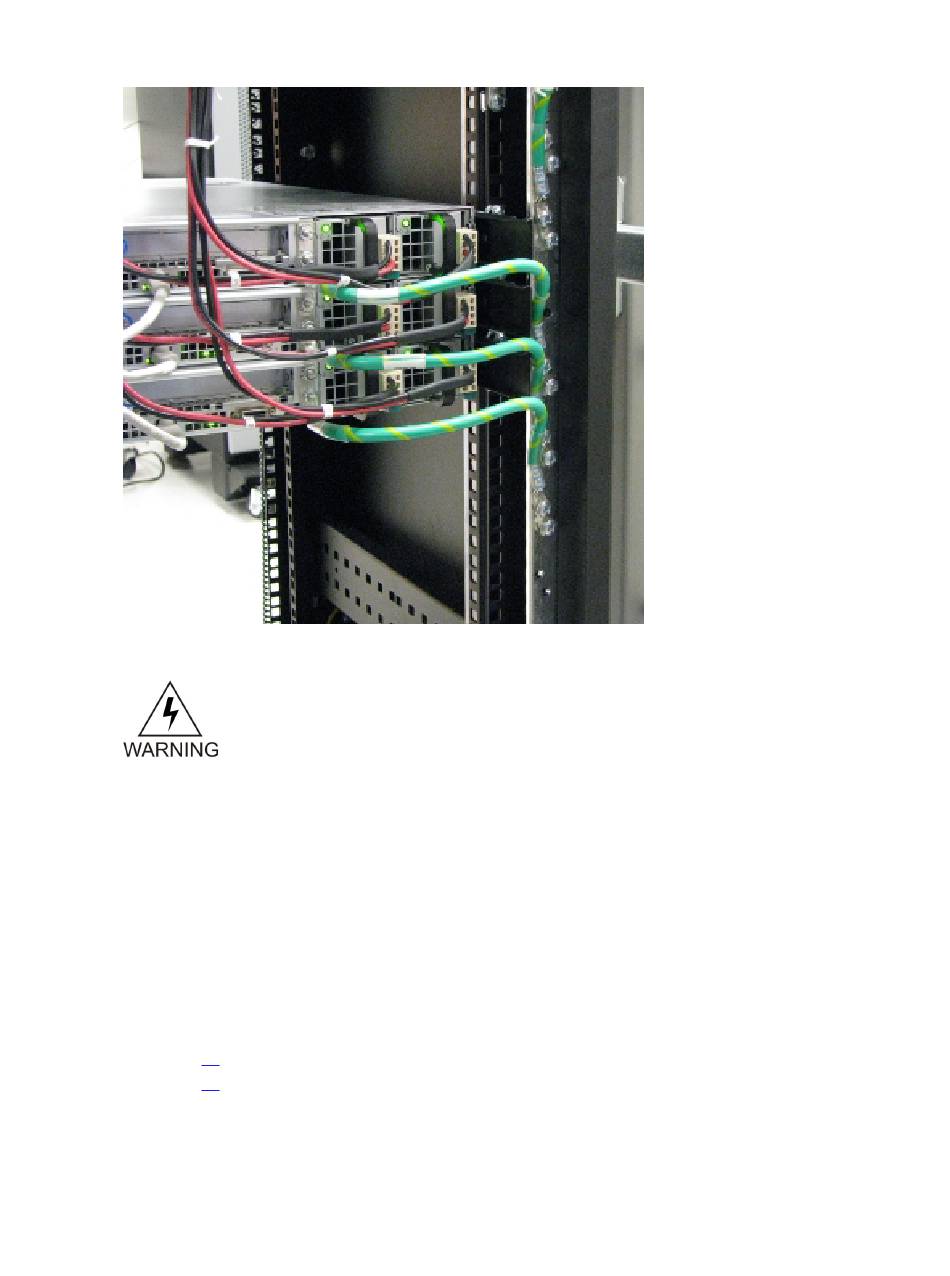

Figure 34: Grounded T1200 Application Server
Warning: Always install an isolator pad between the cabinet and ground floor.
Tekelec cabinets are shipped with isolator pads to isolate the cabinets from the floor.
If a non-Tekelec cabinet is used, an isolator pad must be provided.
• Cabinet/chassis ground
The cabinet/chassis ground path provides a low impedance connection for all metal parts of the
entire system, including the cabinet, doors, shelves, and end panels. Each cabinet/chassis connection
within the system lineup terminates to the cabinet bus bar. The bus bar connects to the Central
Office main ground bus by way of Htaps, #6 American Wire Gauge (AWG) to 1/0 cable.
Note: The cabinet/chassis ground path does not carry current.
Frame Ground Cabling Procedures
This section covers these procedures:
•
Procedure
Ground Frame
•
Procedure
Connect Ground Cable to T1200
910-5681-001 Revision E, February 2014
Cabinet Installation
61
