panel accommodates up to 26 IMG-style pluggable breakers, which can be installed or removed in
the field. Alarm circuitry is provided to indicate and extend alarm conditions when faults occur.

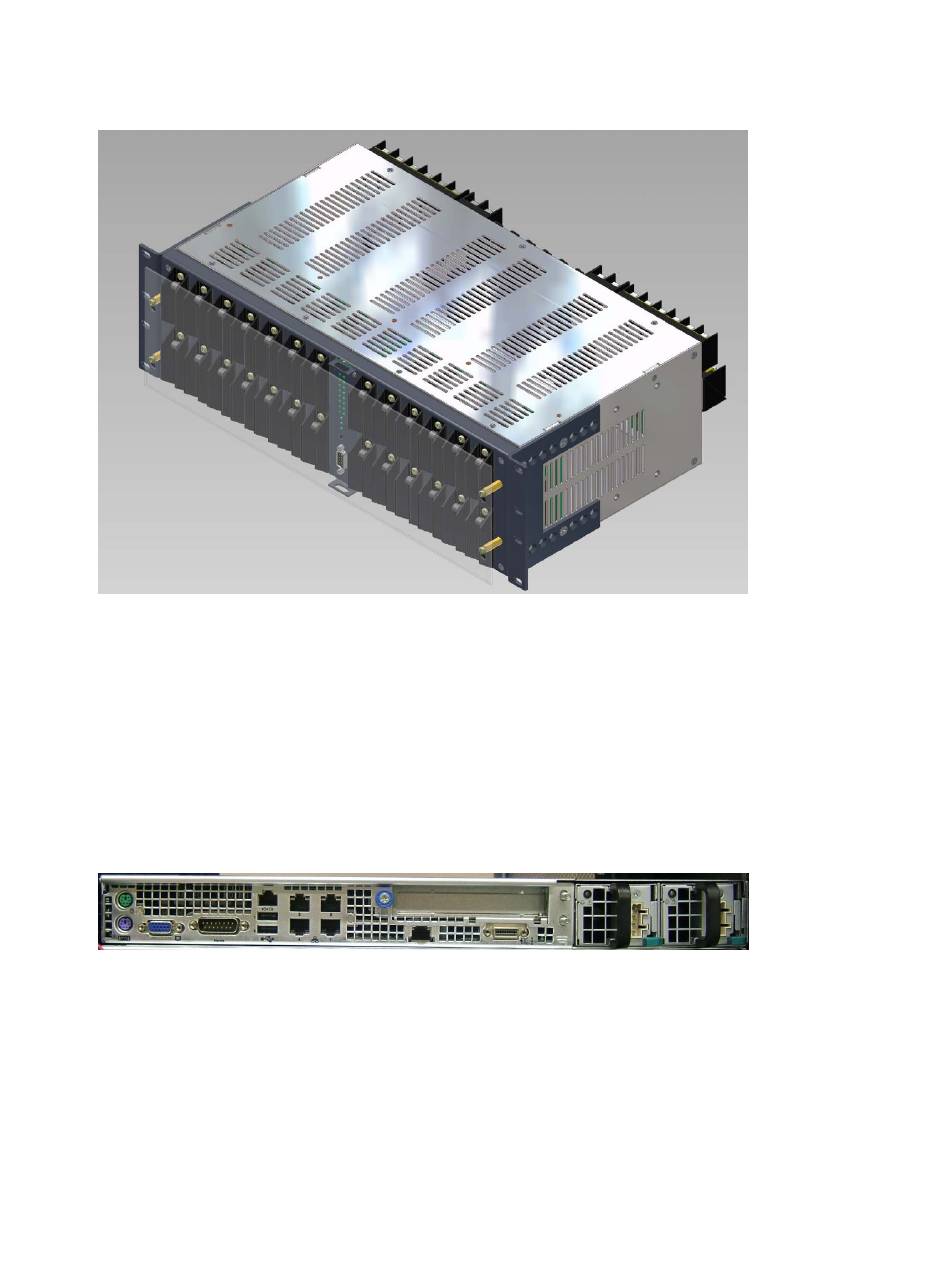

Figure 11: Power Distribution Panel (rear)
T1200 Application Server
The T1200 application server is an off-the-shelf 1U server to host Tekelec central office applications at
a significant performance improvement.
The T1200 application server has high availability. Advanced server management and alarming ensures
maximum uptime. Redundant hot-swap power and cooling reduce Mean-Time-To-Repair (MTTR)
and increase Mean-Time-Between-Failures (MTBF).
Figure 12: T1200 Application Server (rear view) - DC
T5100 Applications Shelf
The T5100 applications shelf is an integrated designed assembly that includes a shelf alarm display
and a shelf alarm panel at the top, two shelf manager modules at the bottom, the 14-slot card cage, a
mid-plane circuit board, integrated redundant fan modules, and redundant power entry modules.
See
Figure 13: T5100 Applications Shelf
910-5681-001 Revision E, February 2014
(front).
Hardware Description
38
