6. Remove the drag chain if it had not been removed prior to shipment.
7. Use the 9/16" open end wrench to turn the threaded rod clockwise to lower the wheels of the
dollies and to raise the cabinet and dolly enough to clear the front edge of the shipping container,
approximately 1 inch. Refer to
The threaded bolts must be turned at the same time by two people, one in the front and one in the
rear to avoid making the cabinet tilt.
8. When the cabinet and dollies have been raised enough to clear the angle created by the front ramp,
slowly and carefully roll the cabinet out of the shipping container.
Be sure to have two people perform this procedure.
Topple: Never try to unpack any frame from the shipping container without at least
two people to steady any movement of the frame and related components. At least
two people are required to safely move and position a frame into place.
9. Move the cabinet to the desired location. At the correct site location, turn the threaded rods counter
clockwise to lower the cabinet by raising the wheels of the dolly.
Again two technicians must turn the threaded rods at the same time to avoid tilting.
10. Remove the 19 mm bolts, front and rear, that attach the dollies to the cabinet. Refer to
Figure 21: Dolly Mounting Bolts
11. Inventory the shipment to make sure that all items listed on the pick list have been received in
good condition. Report any discrepancies or damaged equipment.
12. Do not allow the empty shipping containers to become a safety problem or a fire hazard. Contact
the site supervisor for specific instructions for disposal of leftover packaging materials according
to local recycling procedures. Follow this procedure when opening all similar shipping containers.

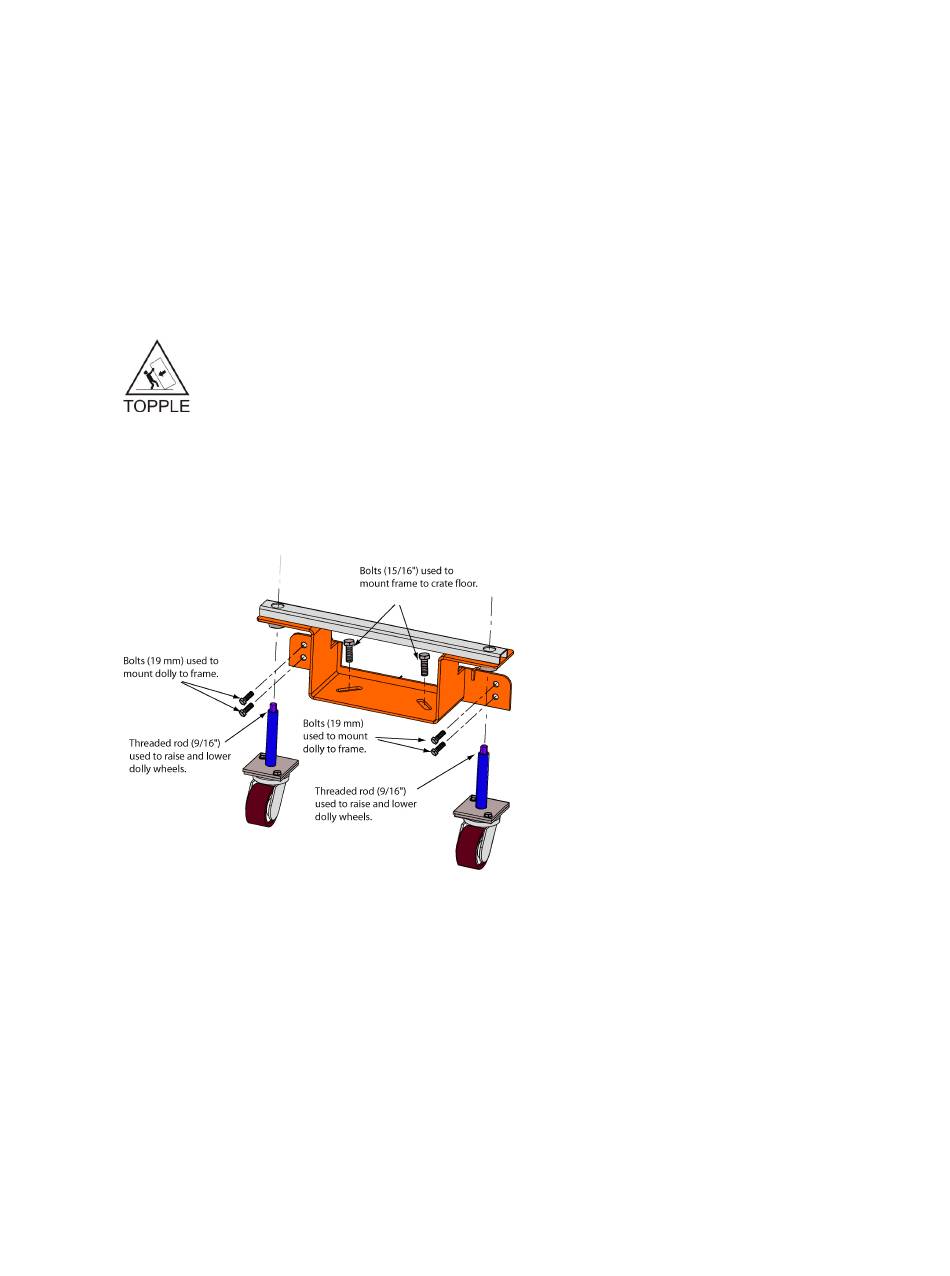

Bolts (15/16") used to mount frame to crate floor. Bolts (19 mm) used to mount dolly to frame.
Threaded rod (9/16") used to raise and lower dolly wheels.
910-5681-001 Revision E, February 2014
Figure 20: Shipping, Detach Dolly
Cabinet Installation
Frame.
