Installation

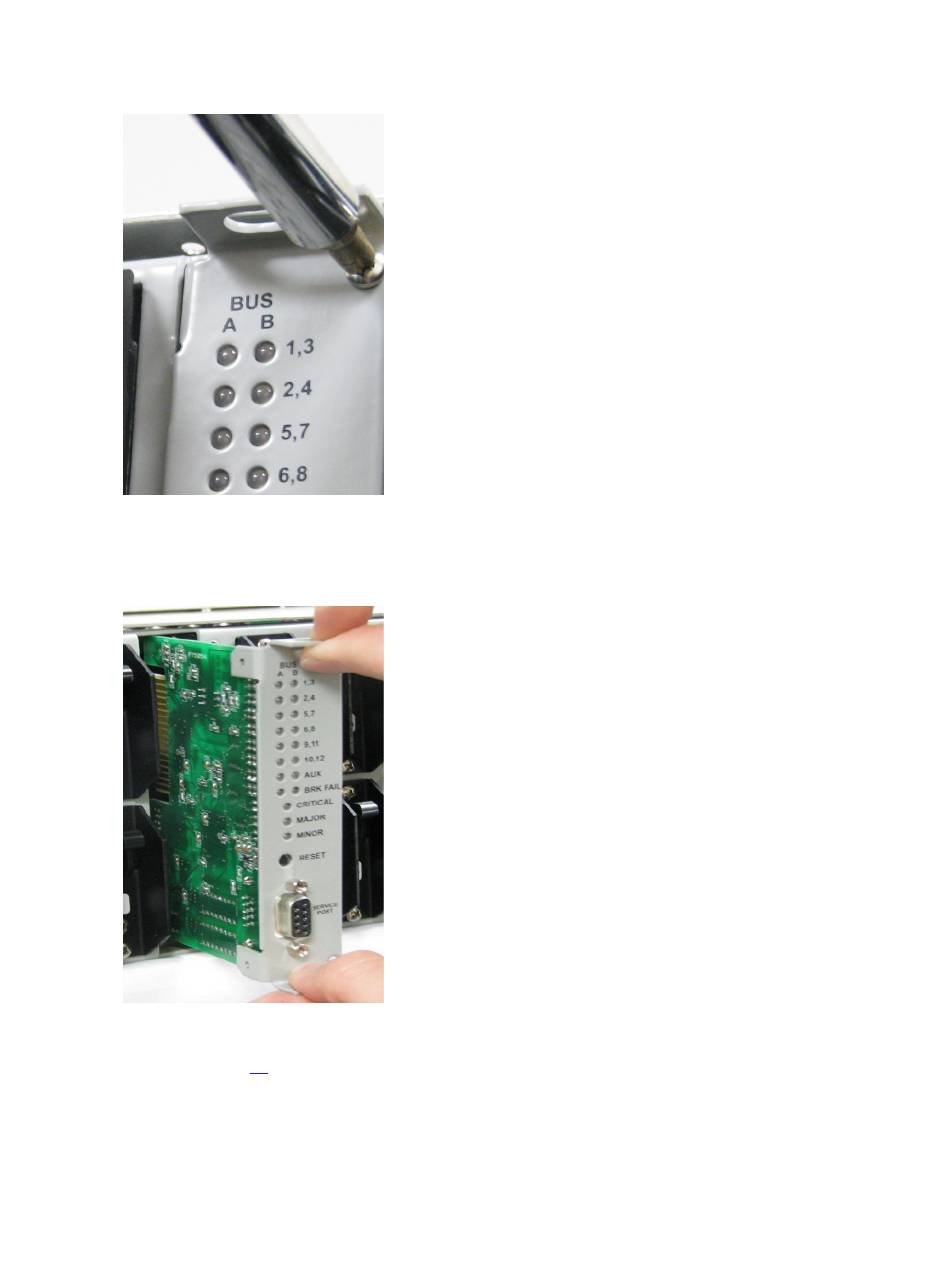

3. Remove the top and bottom screws from the alarm card face plate.
Figure 37: Unscrewing Alarm Card
4. Hold the card at the top and bottom edge and pull it out straight. The removal of the alarm card
will cause another alarm.
Figure 38: Removing the Alarm Card
5. Go to
Procedure
6. Locate the top and bottom rail as well as the socket in the open alarm card slot.
910-5681-001 Revision E, February 2014
Configuring the PDP Alarm Card
to set the monitoring of the PDP Alarm Card.
Cabinet Installation
66
