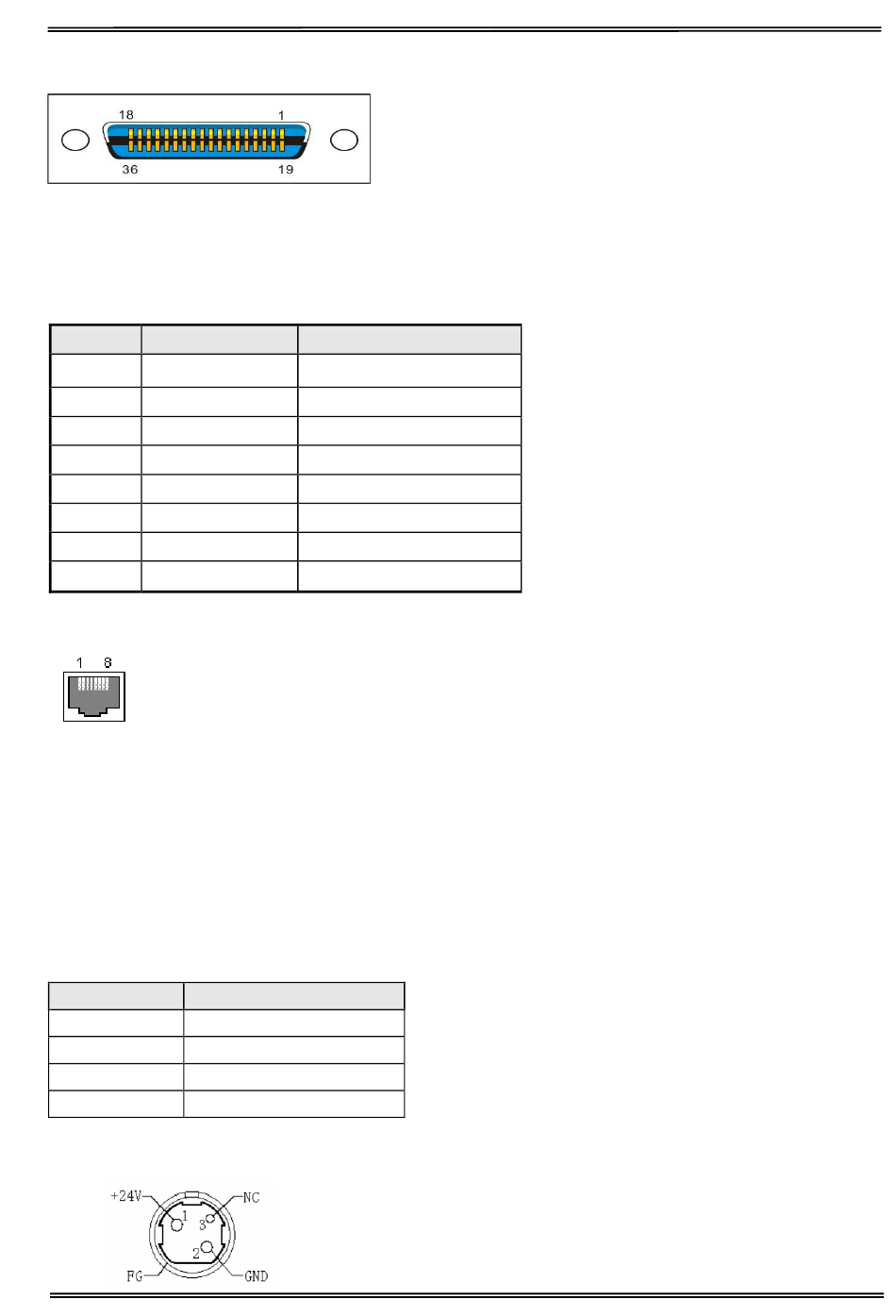

Parallel interface connector diagram

7.5 Ethernet interface

Ethernet interface pin assignment
Pin. No. Name
1
TX+
2
TX-
3
RX+
4
n/c
5
n/c
6
RX-
7
n/c
8
n/c
Ethernet interface connector diagram

7.6 Wi-Fi interface

Wi-Fi interface supports 2.4 GHz, IEEE Std. 802.11b/g/n standard.

7.7 Power Adapter

Power Socket pin assignment
Pin Number
1
2
3
SHELL
Power Supply connector diagram
Description
Tranceive Data+
Tranceive Data-
Receive Data+
Not connected
Not connected
Receive Data-
Not connected
Not connected
Signal Name
+24 V
GND
N.C
F.G.
