Tally Dascom DT-210/230

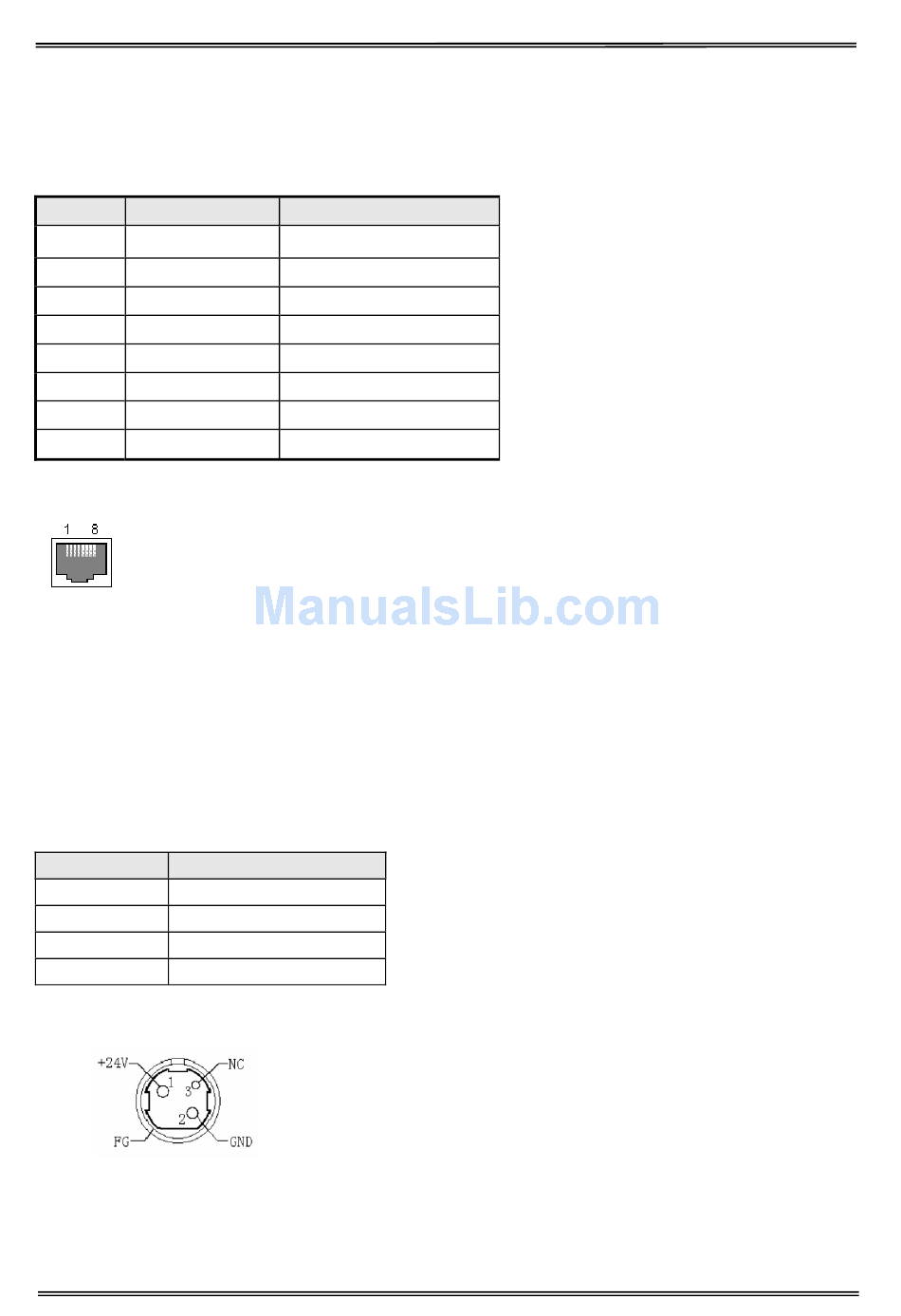

5.2.5 Ethernet interface
Ethernet interface pin assignment
Pin. No. Name
1
TX+
2
TX‐
3
RX+
4
n/c
5
n/c
6
RX‐
7
n/c
8
n/c
Ethernet interface connector diagram
5.2.6 Wi‐Fi interface
Wi‐Fi interface supports 2.4 GHz, IEEE Std. 802.11b standard.
5.3 Power adapter
Power Socket pin assignment
Pin Number
1
2
3
SHELL
Power Supply connector diagram
Power Supply interface type
Printer ‐ Unetop DC‐002 or similar products
Computer ‐ Unetop DP‐002 or similar products
Description
Tranceive Data+
Tranceive Data‐
Receive Data+
Not connected
Not connected
Receive Data‐
Not connected
Not connected
Signal Name
+24 V
GND
N.C
F.G.
30
