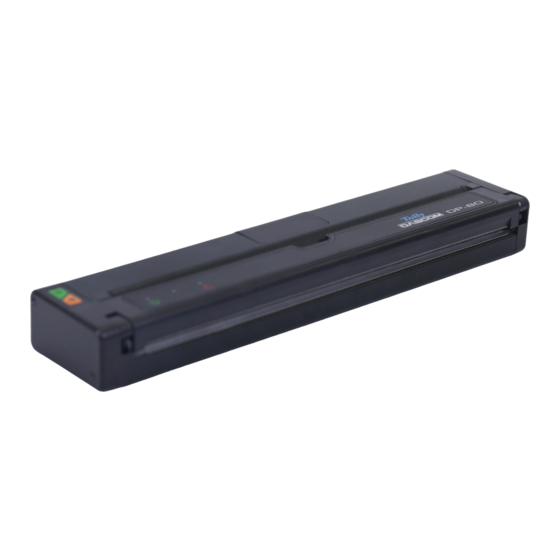

Tally Dascom DP-80 Quick Start Manual

Printer features
Control Panel Paper Door
Status LEDs
USB Data Port
WARNING: DISABLE VEHICLE POWER WHEN
INSERTING OR REMOVING POWER CONNECTOR
LOADING PAPER:
Roll Paper –

Open the paper door by inserting your finger into the cutout in the paper door and gently pulling the door toward the front of the printer.

Insert the leading edge of the paper roll into the printer with the coated side down.

Close the paper door and push the paper feed button to ensure the paper is under the roller and able to advance.
Black Mark Paper –

Open the paper door by inserting your finger into the cutout in the paper door and gently pulling the door toward the front of the printer.

Insert the leading edge of the paper roll into the printer with the black mark facing up.

Close the paper door and push the paper feed button to ensure the paper is under the roller and able to advance. If the printer is properly configured for
Black Mark paper the paper should advance until the black mark is detected by the printer.
Single Sheet Paper -

Insert the single sheet of paper with the coated side down into the top of the printer.

The printer will grab the single sheet and place it into the printer ready to print.

If the printer has received a print job, the printer will begin to print as soon as the paper is detected.
Self-Test / Configuration print out
With power on, press the Paper Feed button twice quickly.
© 2023 DASCOM Drivers, User Manuals and SW Utilities available @

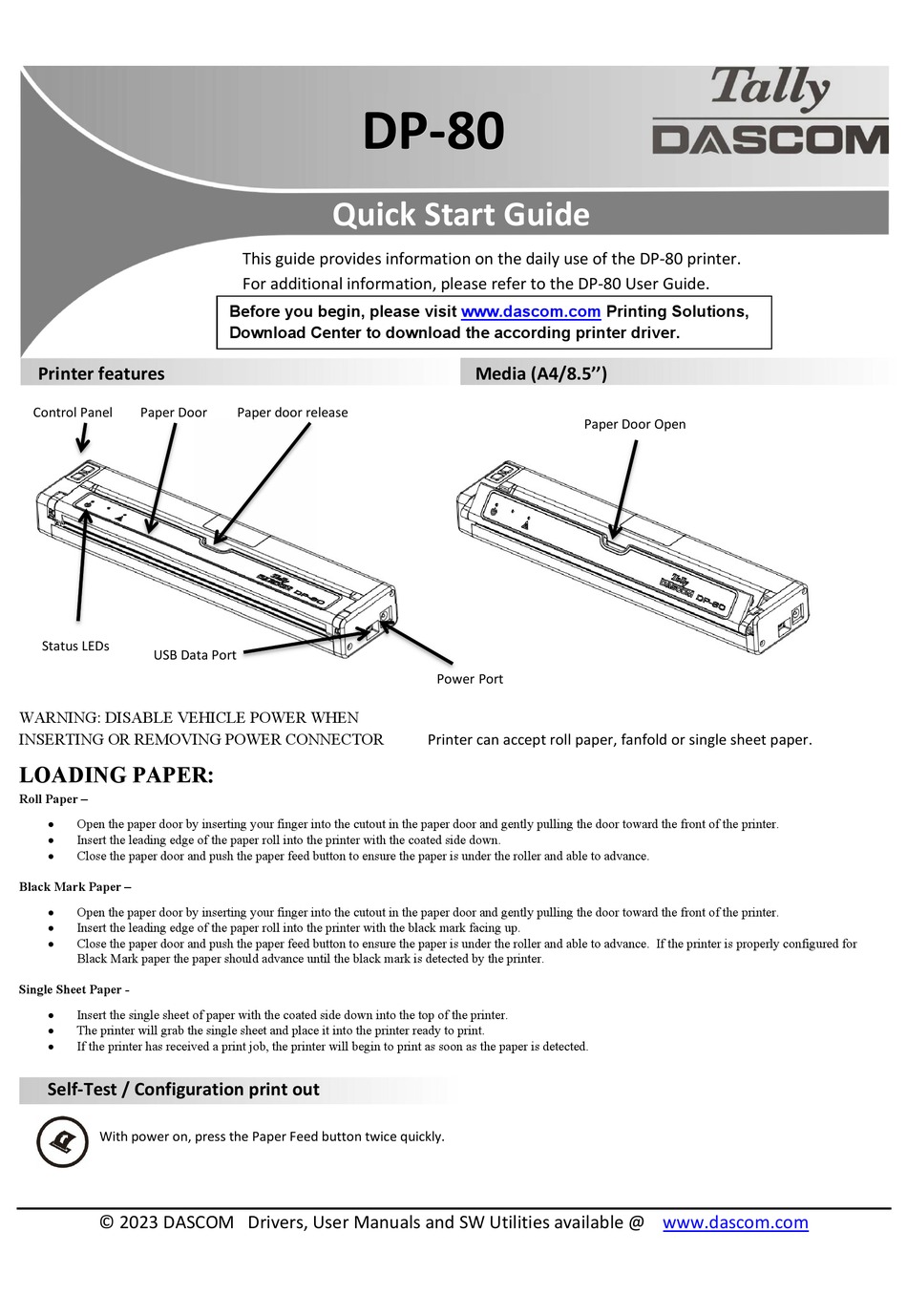

DP-80
Quick Start Guide
This guide provides information on the daily use of the DP-80 printer.
For additional information, please refer to the DP-80 User Guide.
Before you begin, please visit
Download Center to download the according printer driver.
Paper door release
www.dascom.com
Media (A4/8.5'')
Paper Door Open
Power Port
Printer can accept roll paper, fanfold or single sheet paper.
Printing Solutions,
www.dascom.com
