Printer Specification - Tally Dascom DT-210 User Manual

Tally Dascom DT-210/230
components.)
Others

Wide range of connectivity. The USB interface is standard interface. Serial/parallel/Ethernet/ Wi-Fi are
optional interfaces. Various interface choices suit all needs.

Built-in USB interface is also available for all interface models.

The DT-210/230 Software & Documents Disc (drivers, utility, and manuals).

Printer status and errors indicated by 3 LEDs and a buzzer.

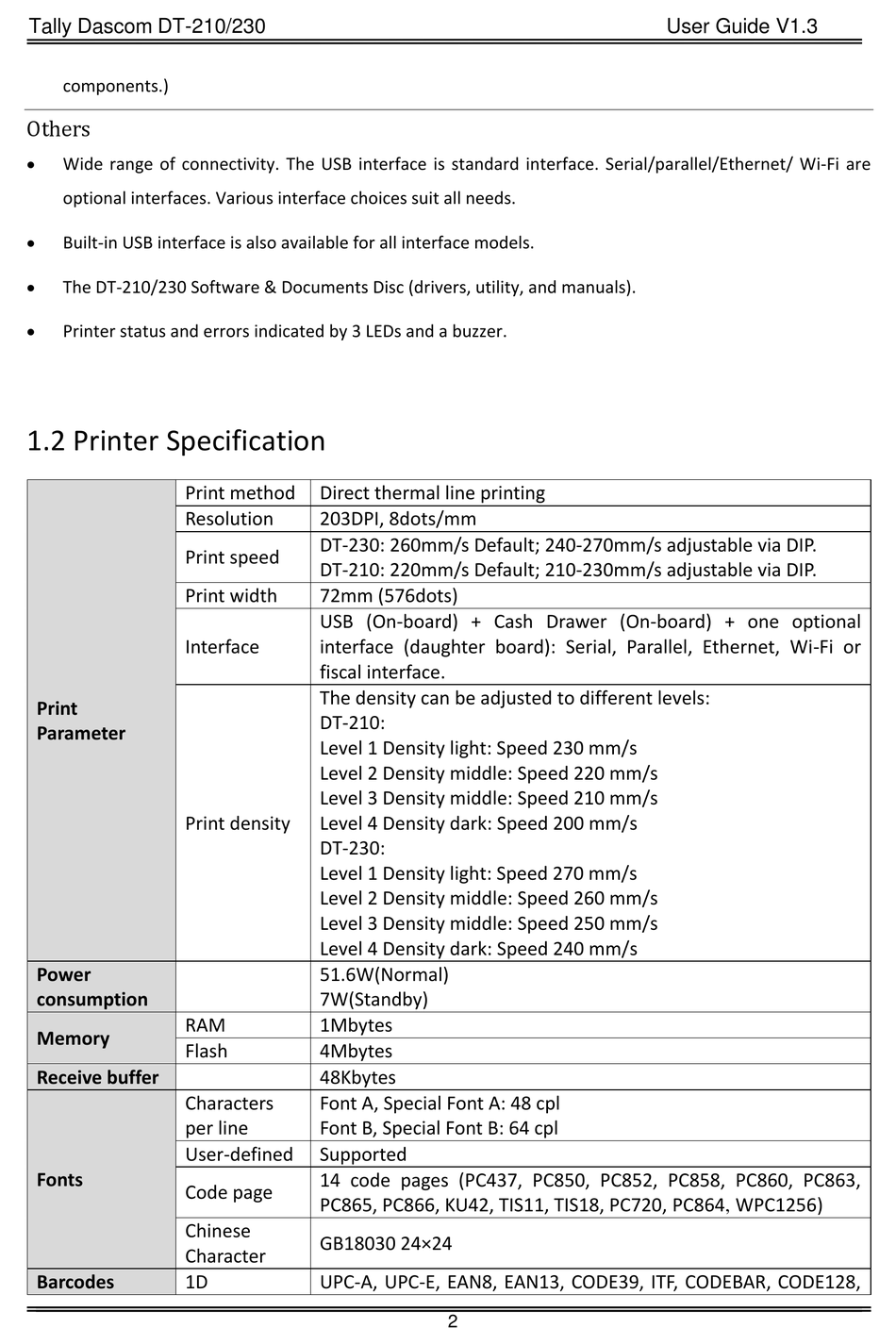

1.2 Printer Specification

Print method
Resolution
Print speed
Print width
Interface
Print
Parameter
Print density
Power
consumption
RAM
Memory
Flash
Receive buffer
Characters
per line
User-defined
Fonts
Code page
Chinese
Character
Barcodes 1D
Direct thermal line printing
203DPI, 8dots/mm
DT-230: 260mm/s Default; 240-270mm/s adjustable via DIP.
DT-210: 220mm/s Default; 210-230mm/s adjustable via DIP.
72mm (576dots)
USB (On-board) + Cash Drawer (On-board) + one optional
interface (daughter board): Serial, Parallel, Ethernet, Wi-Fi or
fiscal interface.
The density can be adjusted to different levels:
DT-210:
Level 1 Density light: Speed 230 mm/s
Level 2 Density middle: Speed 220 mm/s
Level 3 Density middle: Speed 210 mm/s
Level 4 Density dark: Speed 200 mm/s
DT-230:
Level 1 Density light: Speed 270 mm/s
Level 2 Density middle: Speed 260 mm/s
Level 3 Density middle: Speed 250 mm/s
Level 4 Density dark: Speed 240 mm/s
51.6W(Normal)
7W(Standby)
1Mbytes
4Mbytes
48Kbytes
Font A, Special Font A: 48 cpl
Font B, Special Font B: 64 cpl
Supported
14 code pages (PC437, PC850, PC852, PC858, PC860, PC863,
PC865, PC866, KU42, TIS11, TIS18, PC720, PC864, WPC1256)
GB18030 24×24
UPC-A, UPC-E, EAN8, EAN13, CODE39, ITF, CODEBAR, CODE128,
2
User Guide V1.3
