7.3

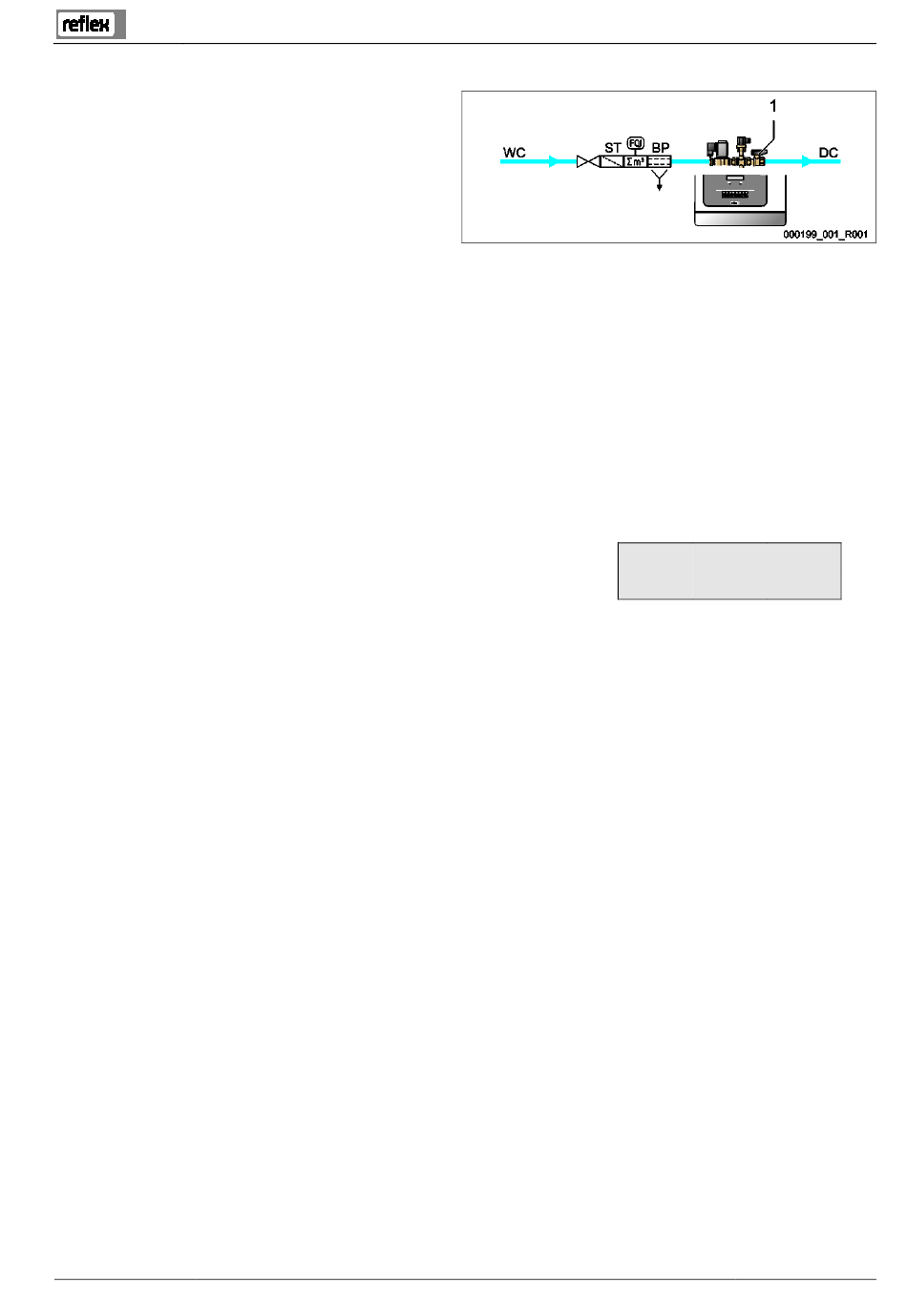

Filling the device with water

Proceed as follows:
1. Connect the "BV" shut-off device (1) to the facility system.
2. Carefully open the shut-off device in the "WC" fresh water
line.
7.4

Parametrising the controller in the Customer menu

Use the Customer menu to display or correct system-specific values. In the course of commissioning, the factory settings must be
adjusted for the system-specific conditions.
– For adjusting the default settings, see chapter 9.2 "Configuring settings in the controller" on page 30 .
– For information about controller operation, see chapter 9.1 "Operator panel" on page 29 .
7.5

Function test

Perform a function test for the "WV" make-up valve.
• Set the device controller to manual mode, see chapter 8.1.2 "Manual mode" on page 27 . In manual mode, you can manually open
and close the "WV" make-up valve.
Proceed as follows:
1. Press "Manual".
– "Levelcontrol" mode: "WV" flashes at the display.
– "Magcontrol" mode: Use the arrow keys to select "WV". "WV" flashes at the
display.
2. Press "OK".
– The make-up valve opens. The displays shows "WV!".
– The water pressure displayed rises to the water pressure in the fresh water line.
– The make-up is completed when the value at the display no longer increases. The
make-up valve automatically closes after 10 s.
3. Press "OK".
– The make-up valve closes. The displays shows "WV".
The function test of the "WV" make-up valve is completed.
Fillcontrol Plus — 06.07.2016 - Rev. B
Commissioning
2.0 bar
WV! Filling
