6.3.2

Hydraulic connection

6.3.2.1 Connection to the facility system
Note!
Starting up of the pump causes vibration in the device. This transfers loud noises into the system pipes.
– Connect the pipes to the device using flexible connections.

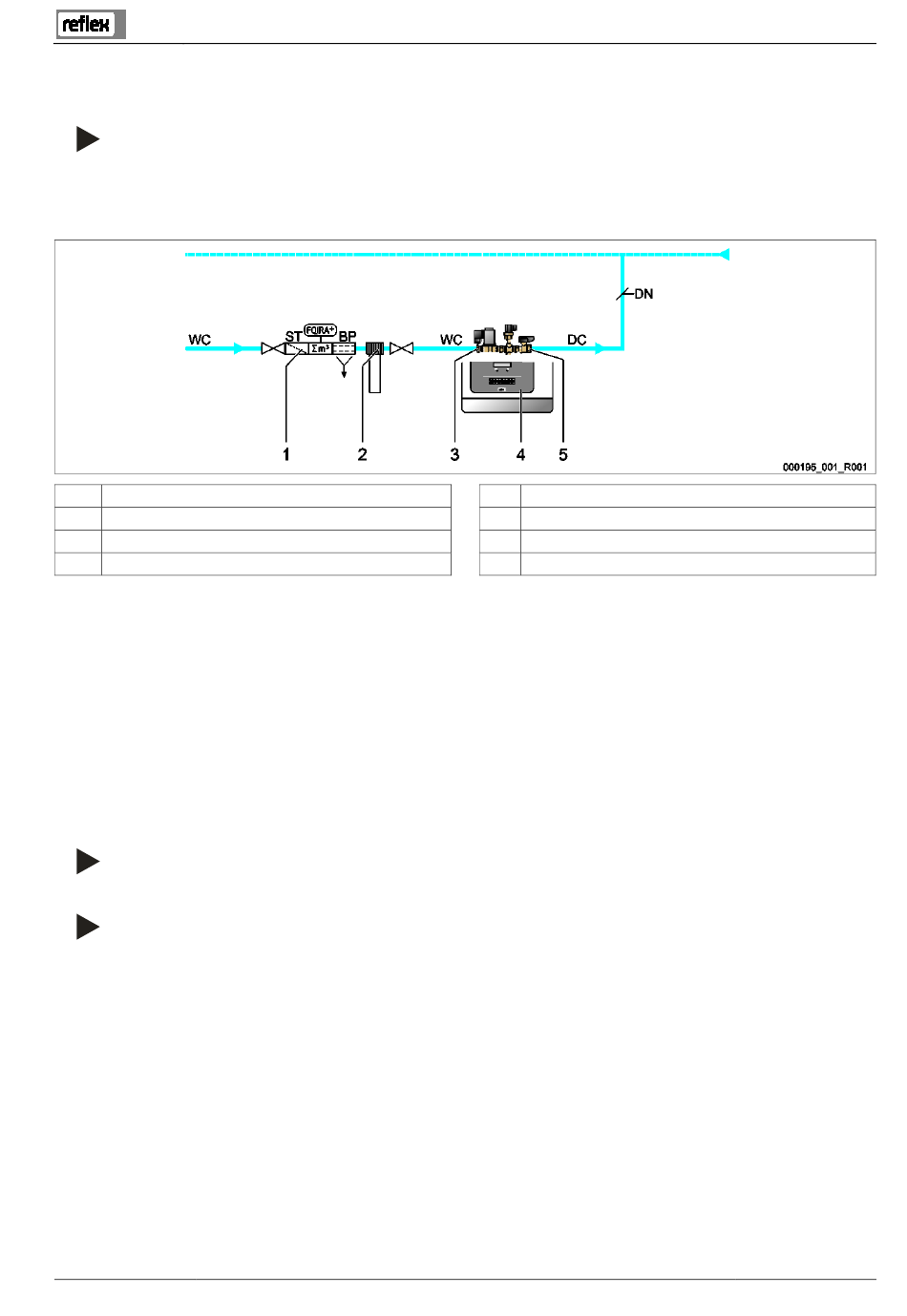

1 Fillset Impuls
2 "Fillsoft" softening system
3 "WV" Make-up valve
4 Fillcontrol Plus
Prepare the connection as follows:
1. Select the "DN" nominal diameter for the make-up lines.
– At a length of up to 10 metres: DN 15.
– At a length of more than 10 metres: DN 20.
2. Connect the "DC" make-up line to the "BV"shut-off device.
3. Connect the "DC" make-up line to the system.
4. Connect the "WC" make-up line to the "WV" make-up valve.
5. Connect the "WC" make-up line to the external fresh water system.
The make-up lines are connected.
Note!
Use a pressure reducer in the "WC" make-up line if the fresh water system pressure exceeds 6 bar.
Note!
For selecting the make-up variants, see chapter 6.4 "Switching and make-up variants" on page 18 .
5
WC
DC
DN
Fillcontrol Plus — 06.07.2016 - Rev. B
"BV" shut-off device
Make-up line to the device
Make-up line to the system
Nominal diameter of the make-up line
Installation
English — 17
