2.5.1 Breakout Cable VGA Video Connector

The VFX-M front panel connector supplies analog video to a standard
VGA computer side connector via the Rastergraf MVK-1/3 25-pin Micro-
D-Sub breakout cable. The RGB video outputs are driven by the TVP3030
RAMDAC, which is capable of driving terminated cable (75 ohms) to
standard RS-330/IRE levels. Cable length should be limited to 50 feet
unless you use low loss RG-59.
See the Note in Section 2.2.3 concerning composite sync on green and
RGBHS video out modes. If you have problems, please contact
Rastergraf for assistance.

Table 2-2 VFX-M Breakout Cable VGA Connector Pinout

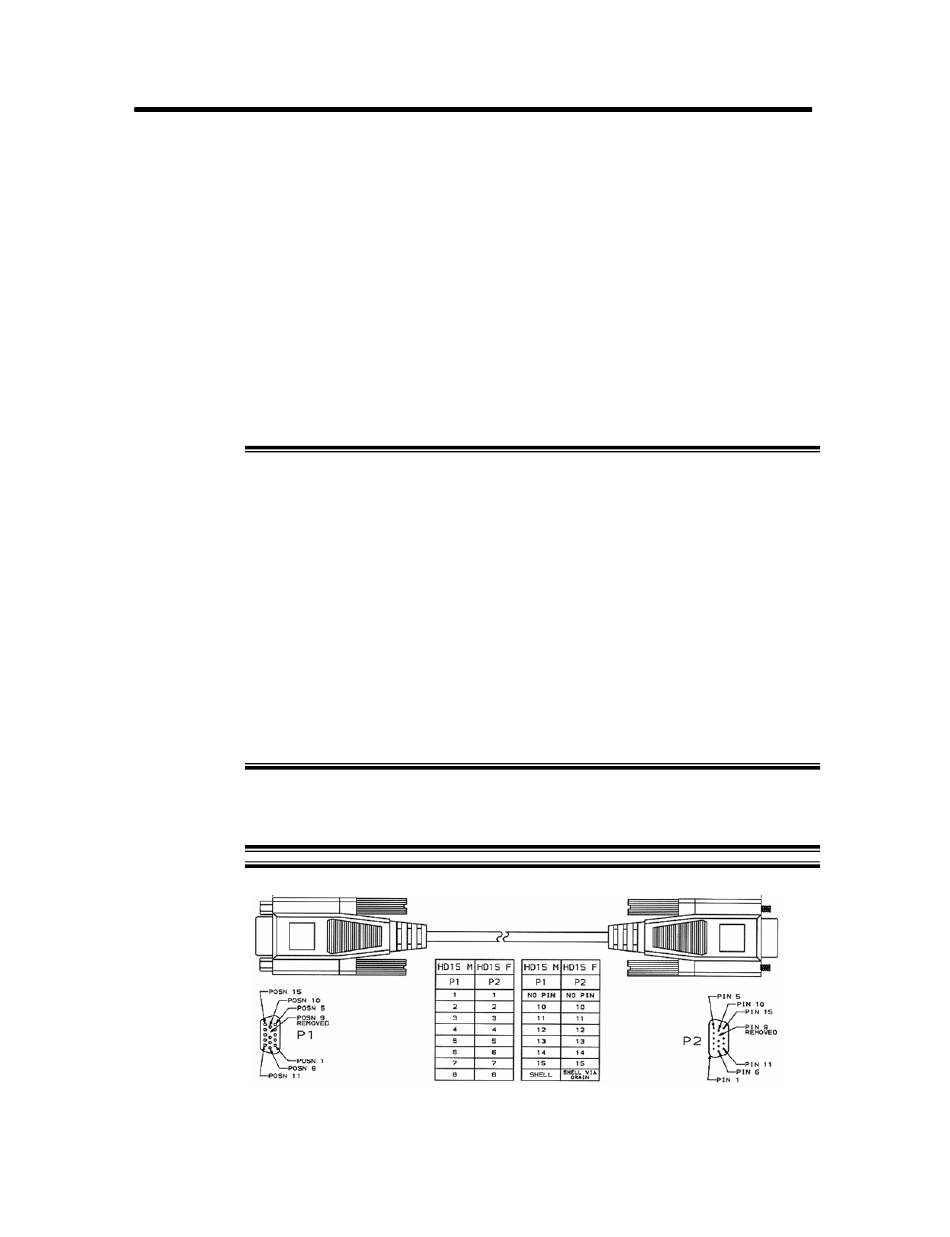

Figure 2-4 Typical VGA Extension Cable

Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com
VGA Pin Number Description
1 Red
2 Green
3 Blue
4 not used
5 DDC Ground
6 Red Ground
7 Green Ground
8 Blue Ground
9 Fused +5 Volts, .25A max
10 Sync Ground
11 not used
12 DDCDA
13 HSYNC
14 VSYNC
15 DDCCK
