ASL INTERCOM MPS Series Configuration Manual page 8

To Change the Binding Order of the Network Interfaces on a Windows Machine:
1. Select "Run" from the "Start" menu.
2. Type "ncpa.cpl", and then click "OK".

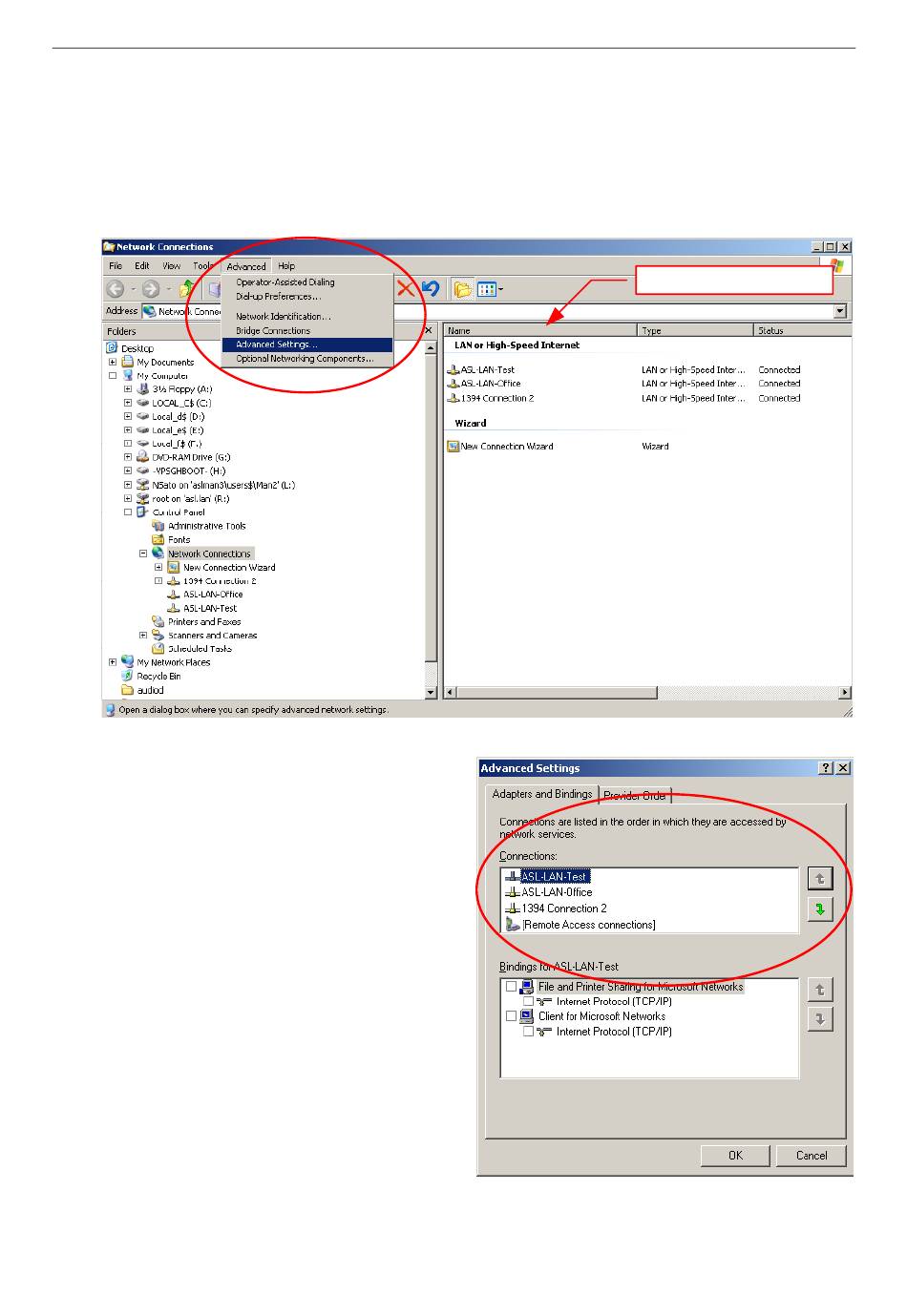

The "Network Connections" window will be displayed. All available network connections are listed; see
example below for Windows XP.
3. For Windows 7, press the ALT key to enable
the top-level menu.
4. Select Advanced>Advanced Settings from the
top-level menu.
The "Advanced Settings" window will be
displayed.
5. Select the "Adapters and Bindings" tab.
6. In the "Connections" section, select the
connection used by the Ethernet Updater and
move it to the top of the list using the up arrow
button.
Click "OK" to apply the changes.
MPS-Series – Configuration Guide
U-0664-0265.doc – Issue: 03 complete, approved
Page 8 of 60
Available network connections
