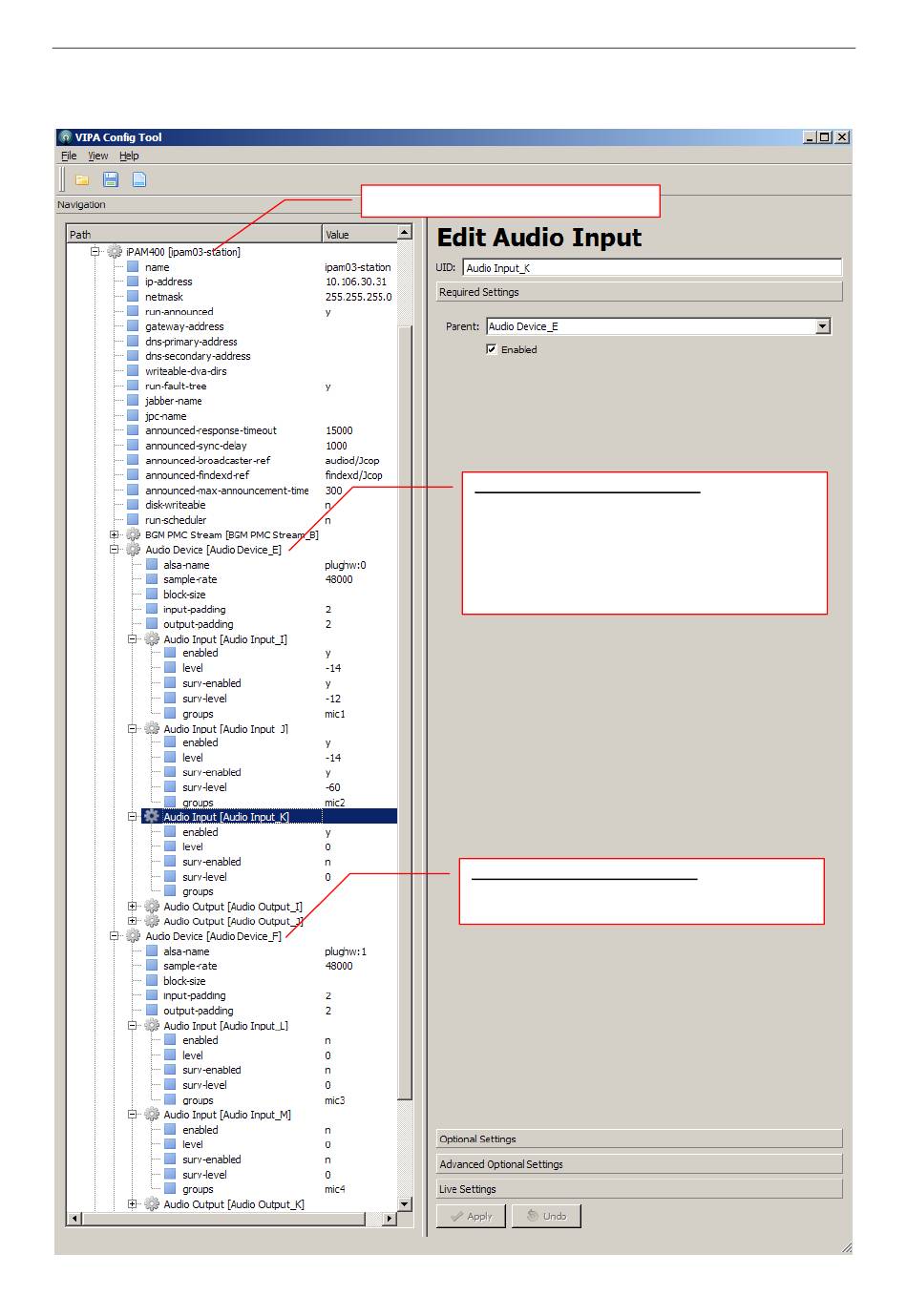

Figure 9 MPS fault reporting – IP connection: Virtual audio input (example using iPAM400)
MPS-Series – Configuration Guide
VIPA Device hosting the MPS microphone
Audio Device (Inputs 1 and 2) node:
•
First Input: Input 1 used for general audio input
•
Second Input: Input 2 used for general audio input
•
Third Input: Virtual input for MPS fault reporting
−
−
−
Audio Device (Inputs 3 and 4) node:
•
First Input: Input 4 used for general audio input
•
Second Input: Input 3 used for general audio input
U-0664-0265.doc – Issue: 03 complete, approved
Page 43 of 60
Enabled
Audio Groups (Advanced Optional Settings): no
group assigned
Other parameters: system default
