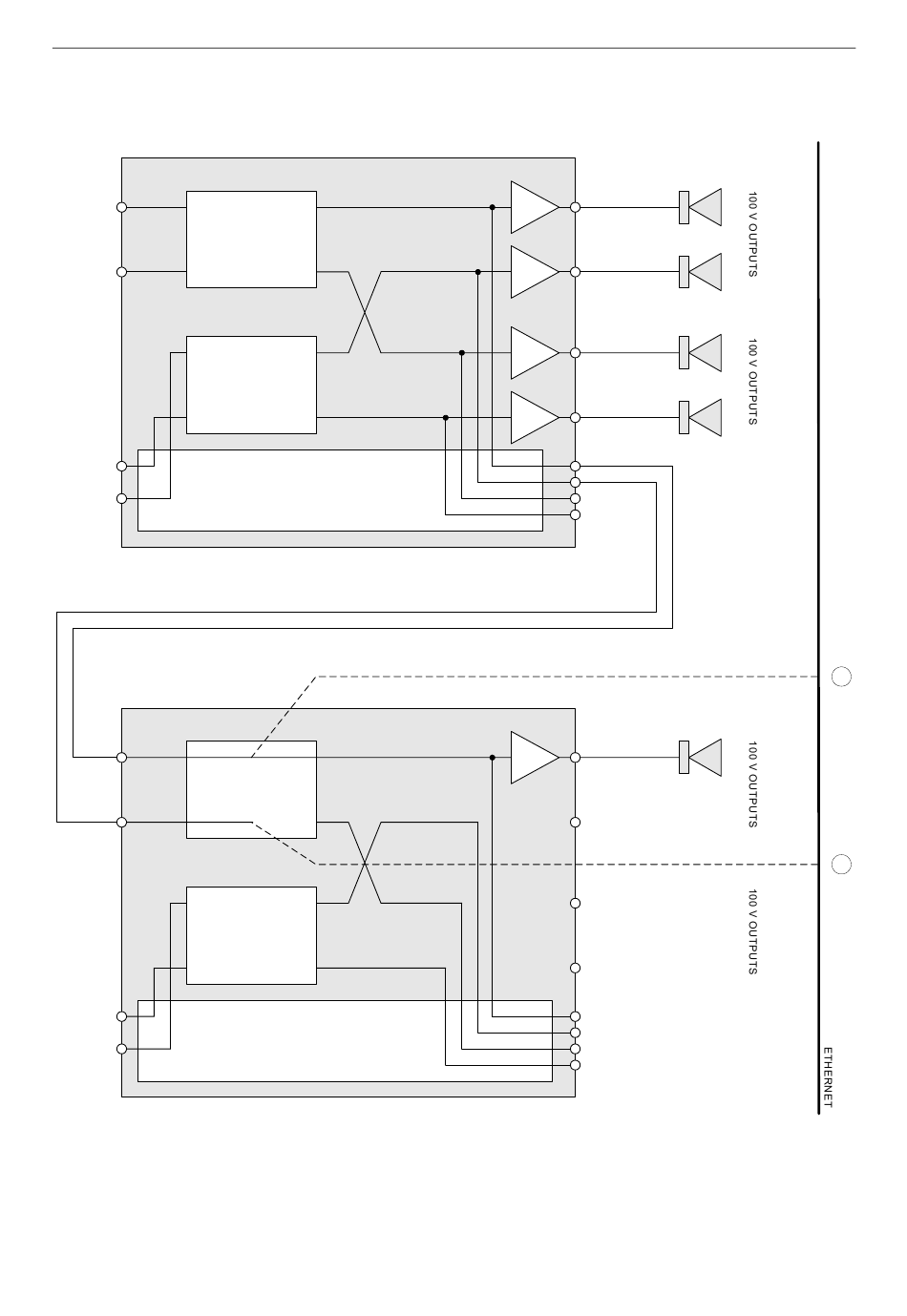

Figure 16
Listen-in implementation methods for MPS microphone (example using iPAM400 units)
iPAM400-01
IP01
AUDIO DEVICE
Built-in Sound (Inputs 1
& 2, Outputs 1 & 3)
IP02
AUDIO DEVICE
Built-in Sound (Inputs 3
& 4, Outputs 2 & 4)
IP03
IP04
iPAM400-02
IP01
AUDIO DEVICE
Built-in Sound (Inputs 1
& 2, Outputs 1 & 3)
IP02
AUDIO DEVICE
Built-in Sound (Inputs 3
& 4, Outputs 2 & 4)
IP03
IP04
MPS-Series – Configuration Guide
XIO-01
Expansion Module
(optional)
PASS THROUGH
XIO-01
Expansion Module
(optional)
U-0664-0265.doc – Issue: 03 complete, approved
Page 52 of 60
OP01
MX100
OP02
MX100
OP03
MX100
OP04
MX100
OP01
OP02
OP03
OP04
PMC BROADCASTER (LISTEN-IN AUDIO)
OP01
MX100
OP02
PMC BROADCASTER (LISTEN-IN AUDIO)
OP03
OP04
OP01
OP02
LOW LEVEL
AUDIO OUTPUTS
OP03
OP04
LOW LEVEL
AUDIO OUTPUTS
