Operating instructions | EN
AG2250
Planetary gear unit
29.05.2020 | Version 2.0

Advertisement

Table of Contents
loading

Related Manuals for Beckhoff AG2250

Summary of Contents for Beckhoff AG2250

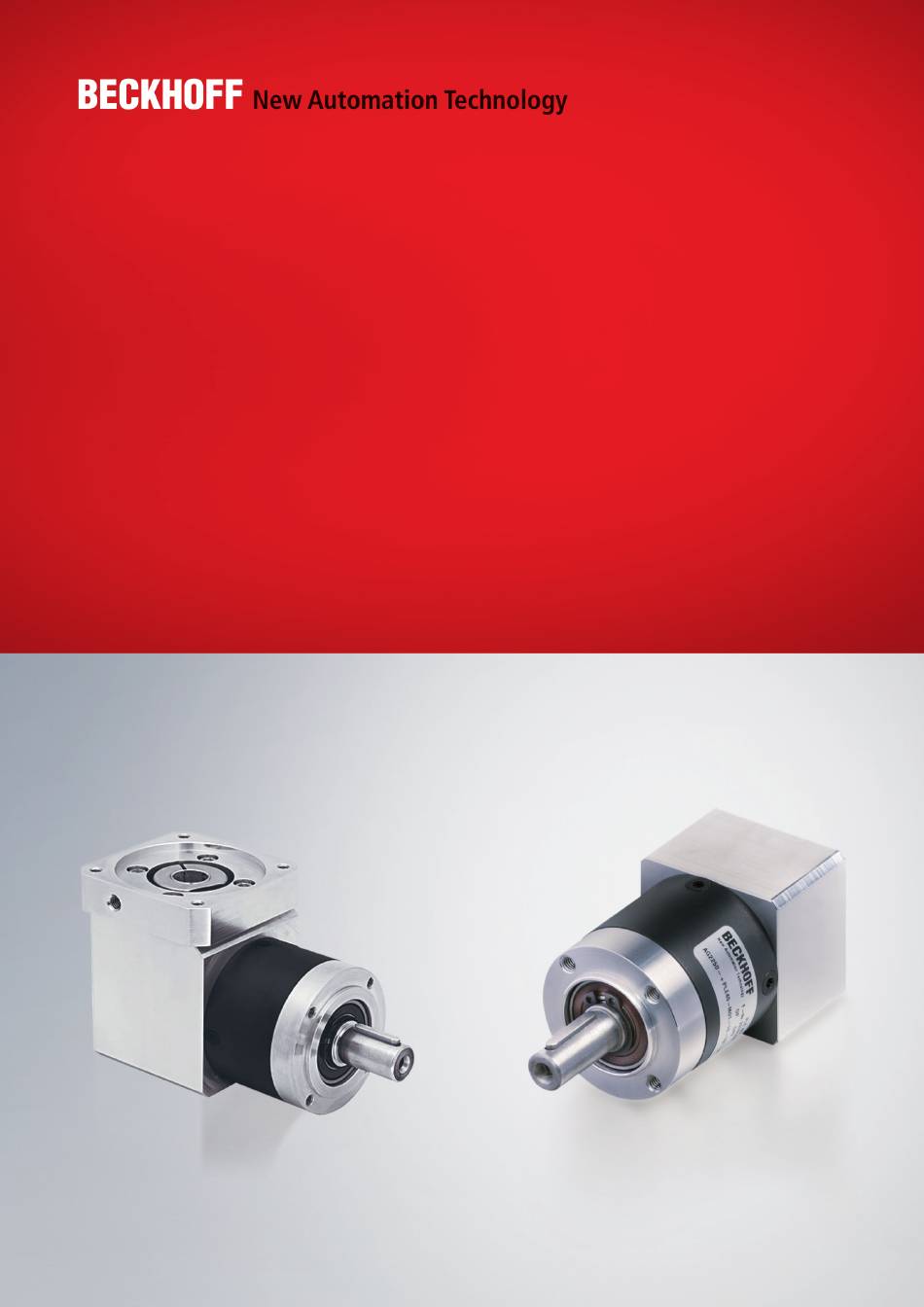

  • Page 1 Operating instructions | EN AG2250 Planetary gear unit 29.05.2020 | Version 2.0...

  • Page 3: Table Of Contents

    Scope of the documentation .......................... 7 Staff qualification...............................  8 Safety and instruction .............................  10 Explanation of symbols ...........................  10 Beckhoff Services ............................ 12 For your safety.............................. 13 General safety instructions .......................... 13 Product overview...............................  15 Standard gear unit ............................ 15 Right-angle gear unit............................
  • Page 4 Table of content Fault correction.............................. 87 Decommissioning..............................  88 Disassembly.............................. 88 Disposal ................................ 89 Guidelines and Standards .......................... 90 EU conformity .............................. 90 RoHS ................................ 90 Index ...................................  91 ─── AG2250 Version: 2.0...

  • Page 5: Notes Of The Documentation

    Notes of the documentation Disclaimer Beckhoff products are subject to continuous further development. We reserve the right to revise the operating instructions at any time and without prior announcement. No claims for the modification of products that have already been supplied may be made on the basis of the data, diagrams and descriptions in these operating instruc- tions.
  • Page 6 • Use of untrained personnel • Use of unauthorized spare parts Copyright © Beckhoff Automation GmbH & Co. KG, Germany 1.1.4 The copying, distribution and utilization of this document as well as the communication of its contents to others without express autho- rization is prohibited.

  • Page 7: Version Numbers

    Product features Only the product properties specified in the current operating in- structions are valid. Further information given on the product pages of the Beckhoff homepage, in emails or in other publications is not authoritative. Scope of the documen- Apart from these operating instructions, the following documents are...

  • Page 8: Staff Qualification

    Trained specialists have received specific technical training and have specific technical knowledge and experience. Trained special- ists can: • apply relevant standards and directives • assess tasks that they have been assigned • recognize possible hazards • prepare and set up workplaces ─── AG2250 Version: 2.0...
  • Page 9 • assess the work environment • independently optimize and carry out their work Customer service Customer service personnel and service personnel are verifiably trained and authorized by Beckhoff or the machine manufacturer for the work on the machine or plant. Version: 2.0 AG2250...

  • Page 10: Safety And Instruction

    1.6.1 DANGER Failure to observe will result in serious or fatal injuries. WARNING Failure to observe may result in serious or fatal injuries. CAUTION Failure to observe may result in minor or moderate injuries. ─── AG2250 Version: 2.0...
  • Page 11 In the case of documentation on a monitor screen, use the zoom function to enlarge the QR code and reduce the distance. Version: 2.0 AG2250 ───...

  • Page 12: Beckhoff Services

    Beckhoff and the worldwide partner companies offer comprehensive support and service. Support The Beckhoff Support offers technical advice on the use of individ- ual Beckhoff products and system planning. Staff provide assistance 1.7.1 for programming and commissioning complex automation systems and offer a comprehensive training program.

  • Page 13: For Your Safety

    Touch electrical components or assemblies only when wearing ESD protective clothing. Move only on a conductive floor. Only use original packaging for further processing When shipping, transporting, storing and packing, use the original packaging or conductive materials. Version: 2.0 AG2250 ───...
  • Page 14 See chapter: Decommissioning No direct skin contact with solvents or lubricants In case of improper use, the solvents or lubricants used can lead to skin irritations. Therefore, avoid direct skin contact. ─── AG2250 Version: 2.0...

  • Page 15: Product Overview

    Holes for the attachment of the gear unit Adapter plate Holes for the motor attachment Feather key [+] Output shaft with center bore Holes for the motor attachment Plug; mounting hole Holes for the attachment of the gear unit Version: 2.0 AG2250 ───...

  • Page 16: Right-Angle Gear Unit

    Holes for the attachment of the gear unit Feather key [+] Holes for the motor attachment Output shaft with center bore Holes for the motor attachment Clamping bolt Clamping hub Holes for the attachment of the gear unit ─── AG2250 Version: 2.0...

  • Page 17: Name Plate

    Product overview Name plate Number Explanation Gear unit type Order number Serial number Data Matrix Code with Beckhoff BTN Country of manufacture Date of manufacture Version: 2.0 AG2250 ───...

  • Page 18: Type Key

    Product overview Type key AG2250 -+ [W]PLE040S - MF1 - 3 - 1C1 - Explanation AM813x AG2250 Gear unit series AG2250 = PLE planetary gear unit [W]PLE Gear type PLE = Standard W = Right-angle gear unit Size Lubrication S = Standard...

  • Page 19: Product Characteristics

    The bearing of the output shaft is designed for high breakdown torques and high axial forces. Maintenance-free ball bearings The gear units are of a high quality standard due to manufacturing according to ISO 9001. The ball bearings are lifetime-lubricated and maintenance-free. Version: 2.0 AG2250 ───...

  • Page 20: Ordering Options

    Right-angle gear unit 3.6.1 3.6.1 The gear units from the AG2250 series are available as a standard version "PLE" and as an angle version "WPLE". In the case of right-angle gear units, the input shaft and output shaft are arranged in different directions to each other. The right-angle gear unit version, for example, is perfectly suited for dynamic multi- axis systems and limited installation space.

  • Page 21: Intended Use

    Product overview Intended use The planetary gear units and right-angle gear units from the AG2250 series may be operated only for the intended activities defined in this documentation, taking into account the prescribed environmen- tal conditions. The components are installed in electrical plants or machines.

  • Page 22: Definitions

    (whether at rest or in motion). Running noise Q [dB/A] The gear ratio and speed affect the running noise. In general, the following rule applies: • Higher speed = higher running noise • Higher gear ratio = lower running noise ─── AG2250 Version: 2.0...
  • Page 23 The EMERGENCY STOP torque is the maximum permissible torque at the gear unit output. It may be reached 1000 times at the most during the service life of the gear unit and must never be exceeded. Version: 2.0 AG2250 ───...

  • Page 24: Data For Operation And Environment

    Beckhoff products are designed for operation under certain environ- mental conditions, which vary according to the product. The follow- ing specifications must be observed for operation and environment in order to achieve the optimum service life of the products.

  • Page 25: Ple040

    In relation to the shaft center at the output Breakdown torque for 20000 h M [Nm] K20000 Breakdown torque for 30000 h M [Nm] K30000 Housing Properties Anodized; heat-treated steel Color Anthracite gray; RAL 7016 Seal Sealed bearing disks Version: 2.0 AG2250 ───...
  • Page 26 In relation to the shaft center at the output Breakdown torque for 20000 h M [Nm] K20000 Breakdown torque for 30000 h M [Nm] K30000 Housing Properties Anodized; heat-treated steel Color Anthracite gray; RAL 7016 Seal Sealed bearing disks ─── AG2250 Version: 2.0...
  • Page 27 In relation to the shaft center at the output Breakdown torque for 20000 h M [Nm] K20000 Breakdown torque for 30000 h M [Nm] K30000 Housing Properties Anodized; heat-treated steel Color Anthracite gray; RAL 7016 Seal Sealed bearing disks Version: 2.0 AG2250 ───...
  • Page 28 • Feather key according to DIN 6885-A 3x3x18 2-stage • All figures in millimeters • Dimensions without tolerance ± 1 mm • Center bore according to DIN 332-DR M3x9 • Feather key according to DIN 6885-A 3x3x18 ─── AG2250 Version: 2.0...
  • Page 29 Technical data 3-stage • All figures in millimeters • Dimensions without tolerance ± 1 mm • Center bore according to DIN 332-DR M3x9 • Feather key according to DIN 6885-A 3x3x18 Version: 2.0 AG2250 ───...

  • Page 30: Wple040

    In relation to the shaft center at the output Breakdown torque for 20000 h M [Nm] K20000 Breakdown torque for 30000 h M [Nm] K30000 Housing Properties Anodized; heat-treated steel Color Anthracite gray; RAL 7016 Seal Sealed bearing disks ─── AG2250 Version: 2.0...
  • Page 31 In relation to the shaft center at the output Breakdown torque for 20000 h M [Nm] K20000 Breakdown torque for 30000 h M [Nm] K30000 Housing Properties Anodized; heat-treated steel Color Anthracite gray; RAL 7016 Seal Sealed bearing disks Version: 2.0 AG2250 ───...
  • Page 32 In relation to the shaft center at the output Breakdown torque for 20000 h M [Nm] K20000 Breakdown torque for 30000 h M [Nm] K30000 Housing Properties Anodized; heat-treated steel Color Anthracite gray; RAL 7016 Seal Sealed bearing disks ─── AG2250 Version: 2.0...
  • Page 33 Technical data Dimensional drawing 4.4.1 1-stage • All figures in millimeters • Dimensions without tolerance ± 1 mm • Center bore according to DIN 332-DR M3x9 • Feather key according to DIN 6885-A 3x3x18 Version: 2.0 AG2250 ───...
  • Page 34 Technical data 2-stage • All figures in millimeters • Dimensions without tolerance ± 1 mm • Center bore according to DIN 332-DR M3x9 • Feather key according to DIN 6885-A 3x3x18 ─── AG2250 Version: 2.0...
  • Page 35 Technical data 3-stage • All figures in millimeters • Dimensions without tolerance ± 1 mm • Center bore according to DIN 332-DR M3x9 • Feather key according to DIN 6885-A 3x3x18 Version: 2.0 AG2250 ───...

  • Page 36: Ple060

    In relation to the shaft center at the output Breakdown torque for 20000 h M [Nm] K20000 Breakdown torque for 30000 h M [Nm] K30000 Housing Properties Anodized; heat-treated steel Color Anthracite gray; RAL 7016 Seal Sealed bearing disks ─── AG2250 Version: 2.0...
  • Page 37 In relation to the shaft center at the output Breakdown torque for 20000 h M [Nm] K20000 Breakdown torque for 30000 h M [Nm] K30000 Housing Properties Anodized; heat-treated steel Color Anthracite gray; RAL 7016 Seal Sealed bearing disks Version: 2.0 AG2250 ───...
  • Page 38 In relation to the shaft center at the output Breakdown torque for 20000 h M [Nm] K20000 Breakdown torque for 30000 h M [Nm] K30000 Housing Properties Anodized; heat-treated steel Color Anthracite gray; RAL 7016 Seal Sealed bearing disks ─── AG2250 Version: 2.0...
  • Page 39 • Feather key according to DIN 6885-A 5x5x25 2-stage • All figures in millimeters • Dimensions without tolerance ± 1 mm • Center bore according to DIN 332-DR M5x12.5 • Feather key according to DIN 6885-A 5x5x25 Version: 2.0 AG2250 ───...
  • Page 40 Technical data 3-stage • All figures in millimeters • Dimensions without tolerance ± 1 mm • Center bore according to DIN 332-DR M5x12.5 • Feather key according to DIN 6885-A 5x5x25 ─── AG2250 Version: 2.0...

  • Page 41: Wple060

    In relation to the shaft center at the output Breakdown torque for 20000 h M [Nm] K20000 Breakdown torque for 30000 h M [Nm] K30000 Housing Properties Anodized; heat-treated steel Color Anthracite gray; RAL 7016 Seal Sealed bearing disks Version: 2.0 AG2250 ───...
  • Page 42 In relation to the shaft center at the output Breakdown torque for 20000 h M [Nm] K20000 Breakdown torque for 30000 h M [Nm] K30000 Housing Properties Anodized; heat-treated steel Color Anthracite gray; RAL 7016 Seal Sealed bearing disks ─── AG2250 Version: 2.0...
  • Page 43 In relation to the shaft center at the output Breakdown torque for 20000 h M [Nm] K20000 Breakdown torque for 30000 h M [Nm] K30000 Housing Properties Anodized; heat-treated steel Color Anthracite gray; RAL 7016 Seal Sealed bearing disks Version: 2.0 AG2250 ───...
  • Page 44 Technical data Dimensional drawing 4.6.1 1-stage • All figures in millimeters • Dimensions without tolerance ± 1 mm • Center bore according to DIN 332-DR M5x12.5 • Feather key according to DIN 6885-A 5x5x25 ─── AG2250 Version: 2.0...
  • Page 45 Technical data 2-stage • All figures in millimeters • Dimensions without tolerance ± 1 mm • Center bore according to DIN 332-DR M5x12.5 • Feather key according to DIN 6885-A 5x5x25 Version: 2.0 AG2250 ───...
  • Page 46 Technical data 3-stage • All figures in millimeters • Dimensions without tolerance ± 1 mm • Center bore according to DIN 332-DR M5x12.5 • Feather key according to DIN 6885-A 5x5x25 ─── AG2250 Version: 2.0...

  • Page 47: Ple080

    In relation to the shaft center at the output Breakdown torque for 20000 h M [Nm] K20000 Breakdown torque for 30000 h M [Nm] K30000 Housing Properties Anodized; heat-treated steel Color Anthracite gray; RAL 7016 Seal Sealed bearing disks Version: 2.0 AG2250 ───...
  • Page 48 In relation to the shaft center at the output Breakdown torque for 20000 h M [Nm] K20000 Breakdown torque for 30000 h M [Nm] K30000 Housing Properties Anodized; heat-treated steel Color Anthracite gray; RAL 7016 Seal Sealed bearing disks ─── AG2250 Version: 2.0...
  • Page 49 In relation to the shaft center at the output Breakdown torque for 20000 h M [Nm] K20000 Breakdown torque for 30000 h M [Nm] K30000 Housing Properties Anodized; heat-treated steel Color Anthracite gray; RAL 7016 Seal Sealed bearing disks Version: 2.0 AG2250 ───...
  • Page 50 • Feather key according to DIN 6885-A 6x6x28 2-stage • All figures in millimeters • Dimensions without tolerance ± 1 mm • Center bore according to DIN 332-DR M6x16 • Feather key according to DIN 6885-A 6x6x28 ─── AG2250 Version: 2.0...
  • Page 51 Technical data 3-stage • All figures in millimeters • Dimensions without tolerance ± 1 mm • Center bore according to DIN 332-DR M6x16 • Feather key according to DIN 6885-A 6x6x28 Version: 2.0 AG2250 ───...

  • Page 52: Wple080

    In relation to the shaft center at the output Breakdown torque for 20000 h M [Nm] K20000 Breakdown torque for 30000 h M [Nm] K30000 Housing Properties Anodized; heat-treated steel Color Anthracite gray; RAL 7016 Seal Sealed bearing disks ─── AG2250 Version: 2.0...
  • Page 53 In relation to the shaft center at the output Breakdown torque for 20000 h M [Nm] K20000 Breakdown torque for 30000 h M [Nm] K30000 Housing Properties Anodized; heat-treated steel Color Anthracite gray; RAL 7016 Seal Sealed bearing disks Version: 2.0 AG2250 ───...
  • Page 54 In relation to the shaft center at the output Breakdown torque for 20000 h M [Nm] K20000 Breakdown torque for 30000 h M [Nm] K30000 Housing Properties Anodized; heat-treated steel Color Anthracite gray; RAL 7016 Seal Sealed bearing disks ─── AG2250 Version: 2.0...
  • Page 55 Technical data Dimensional drawing 4.8.1 1-stage • All figures in millimeters • Dimensions without tolerance ± 1 mm • Center bore according to DIN 332-DR M6x16 • Feather key according to DIN 6885-A 6x6x28 Version: 2.0 AG2250 ───...
  • Page 56 Technical data 2-stage • All figures in millimeters • Dimensions without tolerance ± 1 mm • Center bore according to DIN 332-DR M6x16 • Feather key according to DIN 6885-A 6x6x28 ─── AG2250 Version: 2.0...
  • Page 57 Technical data 3-stage • All figures in millimeters • Dimensions without tolerance ± 1 mm • Center bore according to DIN 332-DR M6x16 • Feather key according to DIN 6885-A 6x6x28 Version: 2.0 AG2250 ───...

  • Page 58: Ple120

    In relation to the shaft center at the output Breakdown torque for 20000 h M [Nm] K20000 Breakdown torque for 30000 h M [Nm] K30000 Housing Properties Anodized; heat-treated steel Color Anthracite gray; RAL 7016 Seal Sealed bearing disks ─── AG2250 Version: 2.0...
  • Page 59 In relation to the shaft center at the output Breakdown torque for 20000 h M [Nm] K20000 Breakdown torque for 30000 h M [Nm] K30000 Housing Properties Anodized; heat-treated steel Color Anthracite gray; RAL 7016 Seal Sealed bearing disks Version: 2.0 AG2250 ───...
  • Page 60 In relation to the shaft center at the output Breakdown torque for 20000 h M [Nm] K20000 Breakdown torque for 30000 h M [Nm] K30000 Housing Properties Anodized; heat-treated steel Color Anthracite gray; RAL 7016 Seal Sealed bearing disks ─── AG2250 Version: 2.0...
  • Page 61 • Feather key according to DIN 6885-A 8x7x40 2-stage • All figures in millimeters • Dimensions without tolerance ± 1 mm • Center bore according to DIN 332-DR M10x22 • Feather key according to DIN 6885-A 8x7x40 Version: 2.0 AG2250 ───...
  • Page 62 Technical data 3-stage • All figures in millimeters • Dimensions without tolerance ± 1 mm • Center bore according to DIN 332-DR M10x22 • Feather key according to DIN 6885-A 8x7x40 ─── AG2250 Version: 2.0...

  • Page 63: Wple120

    In relation to the shaft center at the output Breakdown torque for 20000 h M [Nm] K20000 Breakdown torque for 30000 h M [Nm] K30000 Housing Properties Anodized; heat-treated steel Color Anthracite gray; RAL 7016 Seal Sealed bearing disks Version: 2.0 AG2250 ───...
  • Page 64 In relation to the shaft center at the output Breakdown torque for 20000 h M [Nm] K20000 Breakdown torque for 30000 h M [Nm] K30000 Housing Properties Anodized; heat-treated steel Color Anthracite gray; RAL 7016 Seal Sealed bearing disks ─── AG2250 Version: 2.0...
  • Page 65 In relation to the shaft center at the output Breakdown torque for 20000 h M [Nm] K20000 Breakdown torque for 30000 h M [Nm] K30000 Housing Properties Anodized; heat-treated steel Color Anthracite gray; RAL 7016 Seal Sealed bearing disks Version: 2.0 AG2250 ───...
  • Page 66 Technical data Dimensional drawing 4.10.1 1-stage • All figures in millimeters • Dimensions without tolerance ± 1 mm • Center bore according to DIN 332-DR M10x22 • Feather key according to DIN 6885-A 8x7x40 ─── AG2250 Version: 2.0...
  • Page 67 Technical data 2-stage • All figures in millimeters • Dimensions without tolerance ± 1 mm • Center bore according to DIN 332-DR M10x22 • Feather key according to DIN 6885-A 8x7x40 Version: 2.0 AG2250 ───...
  • Page 68 Technical data 3-stage • All figures in millimeters • Dimensions without tolerance ± 1 mm • Center bore according to DIN 332-DR M10x22 • Feather key according to DIN 6885-A 8x7x40 ─── AG2250 Version: 2.0...

  • Page 69: Ple160

    In relation to the shaft center at the output Breakdown torque for 20000 h M [Nm] K20000 Breakdown torque for 30000 h M [Nm] K30000 Housing Properties Anodized; heat-treated steel Color Anthracite gray; RAL 7016 Seal Sealed bearing disks Version: 2.0 AG2250 ───...
  • Page 70 In relation to the shaft center at the output Breakdown torque for 20000 h M [Nm] K20000 Breakdown torque for 30000 h M [Nm] K30000 Housing Properties Anodized; heat-treated steel Color Anthracite gray; RAL 7016 Seal Sealed bearing disks ─── AG2250 Version: 2.0...
  • Page 71 • Feather key according to DIN 6885-A 12x8x65 2-stage • All figures in millimeters • Dimensions without tolerance ± 1 mm • Center bore according to DIN 332-DR M16x36 • Feather key according to DIN 6885-A 12x8x65 Version: 2.0 AG2250 ───...

  • Page 72: Scope Of Supply

    Check the shipment for the following contents: • Gear units from the AG2250 series with packaging • Instruction leaflet Screws for fastening the gear unit to the motor or to the machine are not included in the scope of delivery.

  • Page 73: Transport And Storage

    • Using a suitable hook or eye bolt in the shaft thread, with suffi- ciently dimensioned hoists • Using suitable transport slings on the gear unit with averaged center of gravity, with sufficiently dimensioned hoists Version: 2.0 AG2250 ───...

  • Page 74: Long-Term Storage

    You have the possibility to store the gear unit in a horizontal position and a dry environment over a short or long period. For storage we always recommend the original packaging. Observe the conditions specified in chapter: "Transport and storage", [Page 73]. ─── AG2250 Version: 2.0...

  • Page 75: Technical Description

    Ingress and leakage of liquids may damage the motor. The standard installation position of the gear units is the motor at- tachment "M". You can use the gear units in any other installation position. Version: 2.0 AG2250 ───...

  • Page 76: Mechanical Installation

    The setting values are rounded to conventional scalings or adjust- ment possibilities: Screw size Quality of the screws 10.9 12.9 Tightening torque in Nm 1.15 1.68 1.97 2.64 3.88 4.55 13.2 15.4 21.5 37.5 42.5 62.5 73.5 73.5 1040 ─── AG2250 Version: 2.0...

  • Page 77: Motor On Gear Unit

    If a motor is included in the scope of delivery: Motors included in the scope of delivery are pre-mounted. For optimum performance data, we recommend attachment to Beckhoff AM8xxx synchronous servomotor. Requirements for the attachment of a motor to the gear unit: • Design B5 •...
  • Page 78 ► Remove feather key [+] and insert half wedge ► Remove the plug [1] from the adapter plate [2] ► Rotate the clamping hub [1] until the screw [2] is visible via the mounting hole ► Loosen the screw [2] by one turn ─── AG2250 Version: 2.0...
  • Page 79 Use screws of strength class 8.8. ► Tighten screw [3] evenly to 100 % of the elastic limit of the screws. Refer to the chapter "Clamping hub", [Page 77]. ► Insert the plug in the adapter plate again Version: 2.0 AG2250 ───...

  • Page 80: Gear Unit To Machine

    Mechanical installation Gear unit to machine No washers necessary Beckhoff recommends not using washers if the material of the screw contact surface has an adequate interface pressure. Output side Avoid damage due to stresses 8.3.1 Use suitable tools for the assembly. Mount gear wheels and toothed belt pulleys without force on the output shaft and avoid mounting by driving or hammering on.
  • Page 81 Quality of the screws = strength class 12.9 Gear Pitch circle diam- Thread Tightening torque unit eter [mm] [Nm] M4 x 6 4.55 M5 x 8 M6 x 10 15.40 M10 x 16 73.50 M12 x 20 Version: 2.0 AG2250 ───...

  • Page 82: Commissioning

    In case of motors with holding brake [+] • Check the function of the holding brake [+] • In case of malfunction: Apply 24 VDC, the brake must release • Check emergency stop functions ─── AG2250 Version: 2.0...

  • Page 83: During Commissioning

    Place the machine or plant in a safe state Make sure that the rotor comes to a complete stop. When the holding brake [+] is released, the rotor moves without remanent torque. Rotating components can lead to serious in- juries. Version: 2.0 AG2250 ───...

  • Page 84: Maintenance And Cleaning

    We will provide you with an overview of cleaning substances. Use the cleaning agents with a maximum concentration of 3 %. A higher concentration will damage the gear units. You will also receive infor- mation about non-approved cleaning agents. ─── AG2250 Version: 2.0...
  • Page 85 NaOH Sodium peroxide Sulfuric acid Tartaric acid COOH; CHOH COOH Tin-II IV-chloride SnCl O SnCl Not approved Cleaning agents Chemical formula 10.1.2 Aniline hydrochloride Bromine Sodium hypochlorite; bleaching NaCIO solution Mercury (II) chloride HgCl Hydrochloric acid Version: 2.0 AG2250 ───...

  • Page 86: Intervals

    Lubrication Notes on lubrication 10.2.1 Beckhoff gear units from the AG2250 series are lubricated for life. The lubricant used does not have to be renewed. If you wish to change the lubricant, contact Beckhoff Service. All gear units are factory-lubricated for life with a mineral oil-based lithium soap grease or a food-grade synthetic grease made of hy- drocarbon oil and calcium special soap polyurea.

  • Page 87: Fault Correction

    Ensure sufficient cooling Replace the motor Ambient temperature too high Ensure sufficient cooling Increased operating noises Distorted motor mounting Contact Beckhoff Service Damage to the bearings Damage to the toothing Toothed belt tension too high Lubricant loss Lubricant quantity too high...

  • Page 88: Decommissioning

    Leaking oil can cause slips and falls, resulting in serious or fatal injury. Hot oil can cause severe burns. Impermissible removal of gear unit components Only Beckhoff Automation GmbH & Co. KG is permitted to disman- tle the gear unit. Contact Beckhoff Service for further information.

  • Page 89: Disposal

    The trans- 12.2.1 port costs are borne by the sender. Send the used devices with the note "For disposal" to: Beckhoff Automation GmbH & Co. KG "Service" Building Stahlstrasse 31 D-33415 Verl In addition, you have the option to contact a local certified specialist company for the disposal of used electrical and electronic appli- ances.

  • Page 90: Guidelines And Standards

    EU conformity Provision 13.1 Beckhoff Automation GmbH & Co KG will be pleased to provide you with EU declarations of conformity and manufacturer's declara- tions for all products on request. Please send your request to: info@beckhoff.com RoHS All homogeneous materials used in the gear unit fall below the pre- scribed limit values of Directive 2011/65/EU Annex II.

  • Page 91: Index

    Intended use  21 Lubrication  86 Maintenance  84 Intervals  86 Motor Mounting  77 Name plate  17 Operating Conditions  24 Ordering options Feather key  20 Right-angle gear unit  20 Output elements Mounting  80 Pictograms  10 Power derating  22 Version: 2.0 AG2250 ───...
  • Page 93 More Information: www.beckhoff.com/ag2250 Beckhoff Automation GmbH & Co. KG Hülshorstweg 20 33415 Verl Germany Phone: +49 5246 9630 info@beckhoff.com www.beckhoff.com...
