Tape drive (FH configuration)—– Connect the supplied serial cable and the power cable to the tape drives.
Library
FH tape drive
FH tape drive

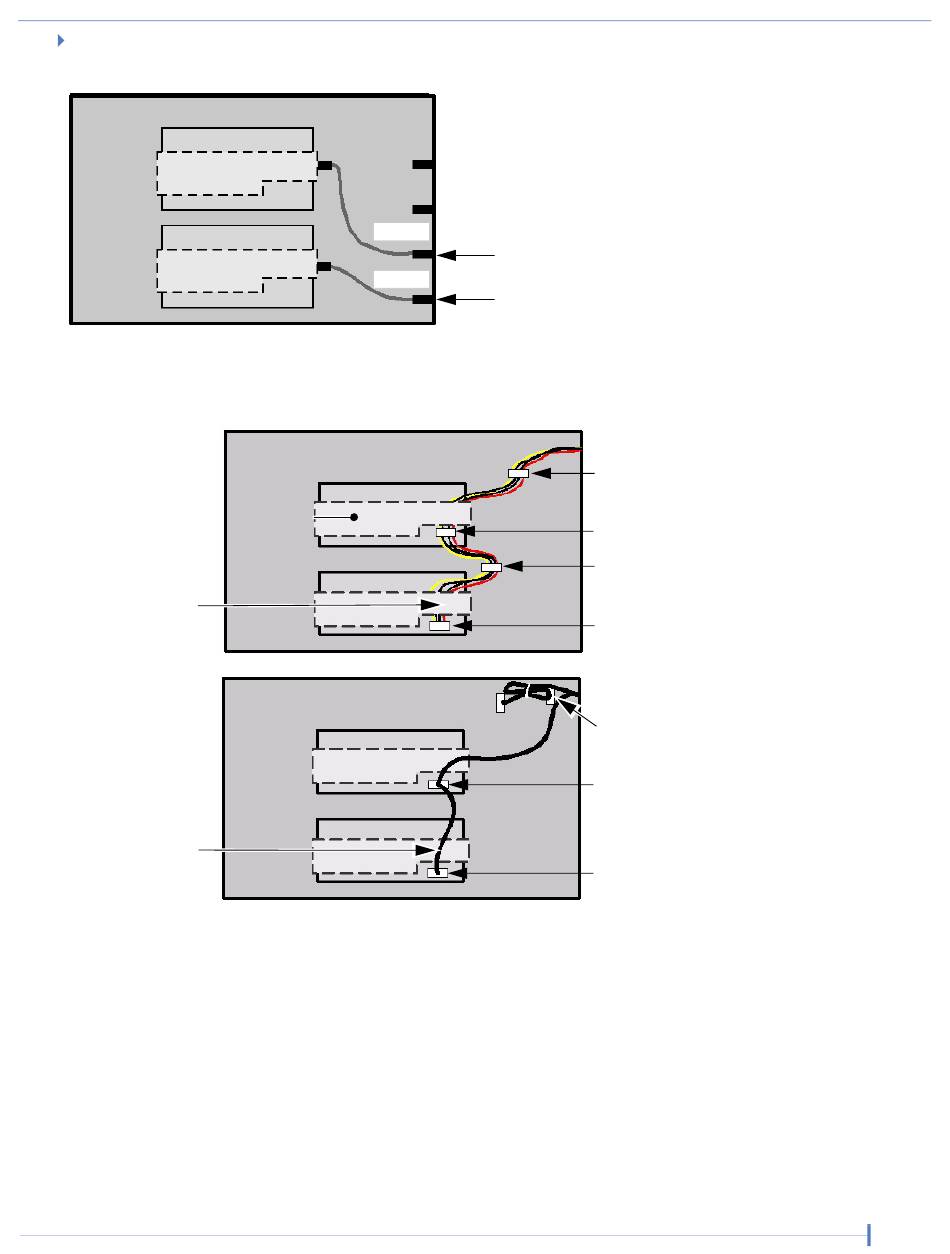

Figure 10 Installing additional tape drives: full height serial connectors
either
Your library has a
Rev "A" or Rev "B" power
See Figure 3.
cable.
Rev "A" power cable
Route the Rev "A" power
through
cable tape drive
carriers, as shown here.
Rev "B" power cable
Route the Rev "B" power
outside
cable tape drive
carriers, as shown here.
Figure 11 Installing additional tape drives: full height power connectors
Drive 2
Drive 1
Library
FH tape drive
Tape drive
carrier
Library
Serial cable connections
Full height configuration
Also see Figure 1.
Connect top FH tape drive to
the second internal library connector (Drive 2).
Connect bottom FH tape drive
to the bottom internal library connector (Drive 1).
Power cable connections
Full height configuration
Top power connector
(not used in this configuration)
Third power connector
Second power conn
(not used in this configuration)
Bottom power connector
Short cable–not used with
the full height configuration
Middle power connector
(long cable)
Last power connector
(long cable)
