P
C
C
OWER
ABLE
ONNECTIONS

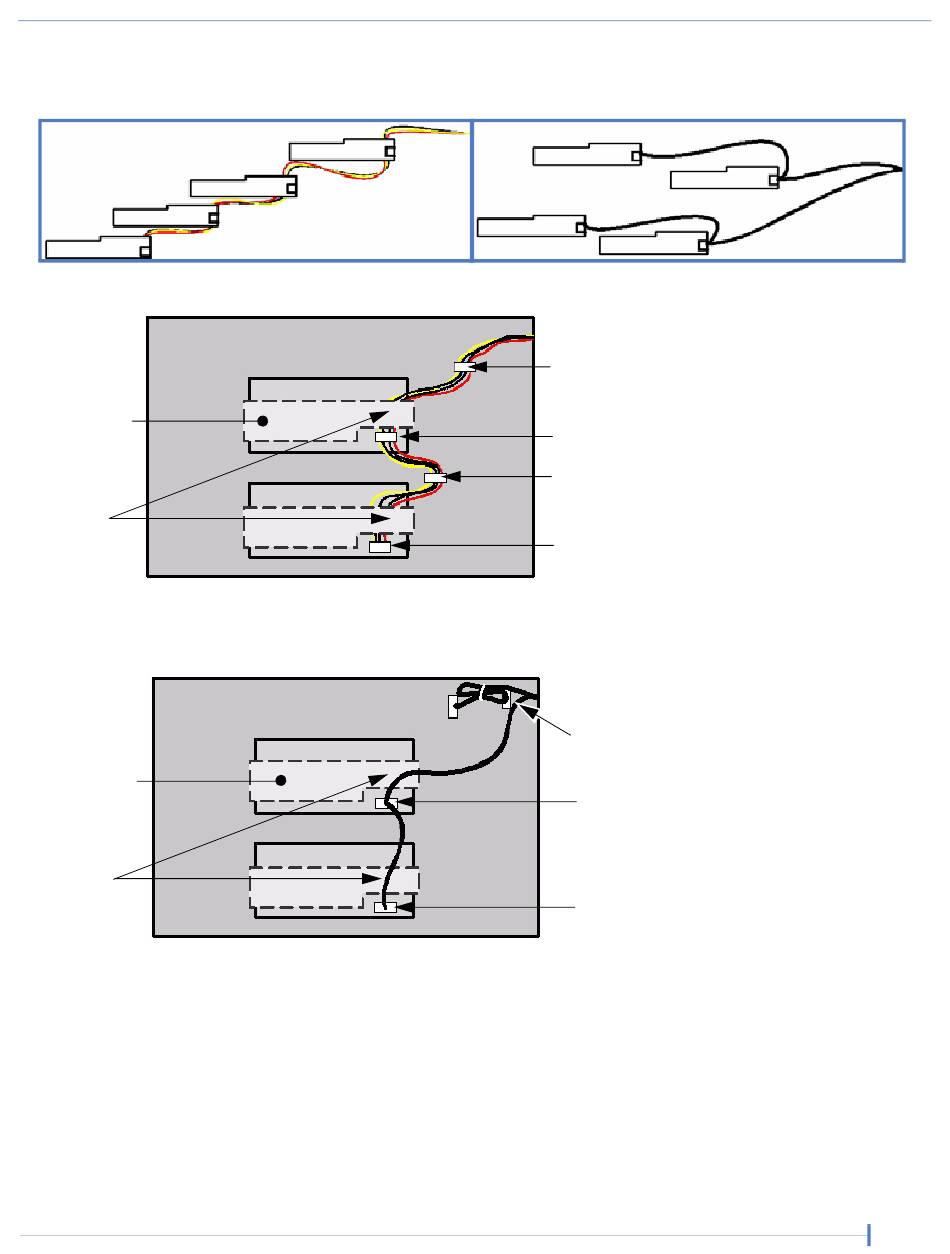

Rev "A" power cable
Connectors are all in one row
Tape drive
carrier
Route cable
through
tape drive
carriers
Figure 4
Rev "A" power cable routing—full height tape drives
Tape drive
carrier
Route cable
outside
tape drive
carriers
Figure 5
Rev "B" power cable routing—full height tape drives
Library
FH tape drive
FH tape drive
Library
FH tape drive
FH tape drive
Rev "B" power cable
Connectors are on two cables
Rev "A" power cable
Top power connector
(not used in this configuration
Third power connector
Second power connector
(not used in this configuration
Bottom power connector
Rev "B" power cable
Short cable–not used with
full height tape drives
Middle power connector (long cable)
Bottom power connector (long cable)
