Base module

The base module has functions for power supply and drive units.
The drive units are positioned inside the base module. Each drive
wheel is equipped with a drive unit that has an electric motor and a
gearbox.
3.3.3.1 Main circuit breaker
The main circuit breaker is used to turn on and off the main power.
It is positioned on the right side of the base module, below the start
button. It also functions as a fuse, and the Explorer Mini will
automatically be turned off if an electrical fault occurs. This means
that the control system is protected from being overloaded, for
example if the child keeps driving the Explorer Mini while the
wheelchair is stuck.
For instructions on how to turn on and off the main power, see
5 Handling and driving .
Getting to know your wheelchair

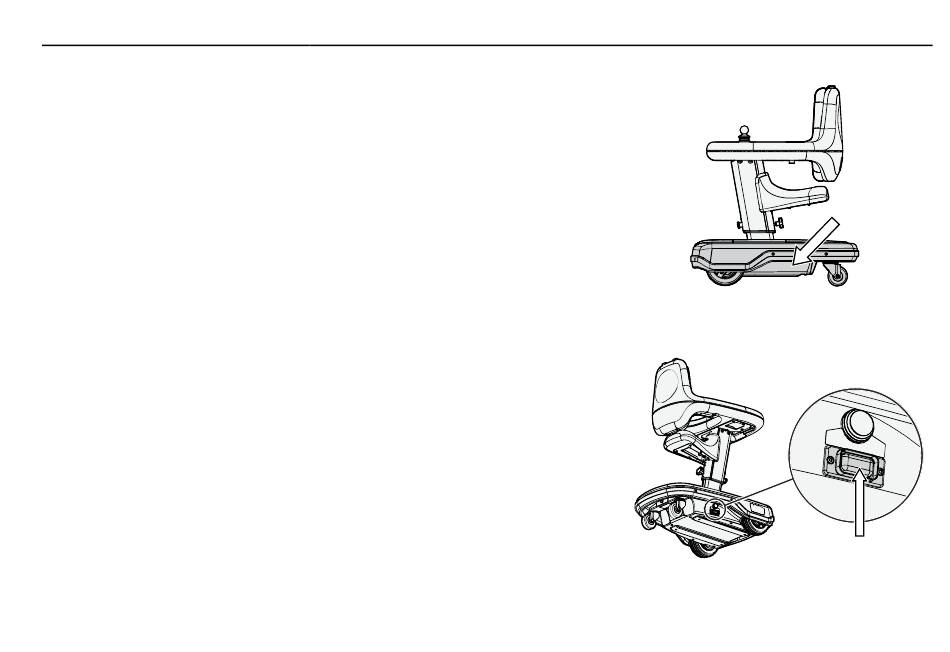

Figure 6. Position of the base module.
Figure 7. Position of the main circuit breaker.
