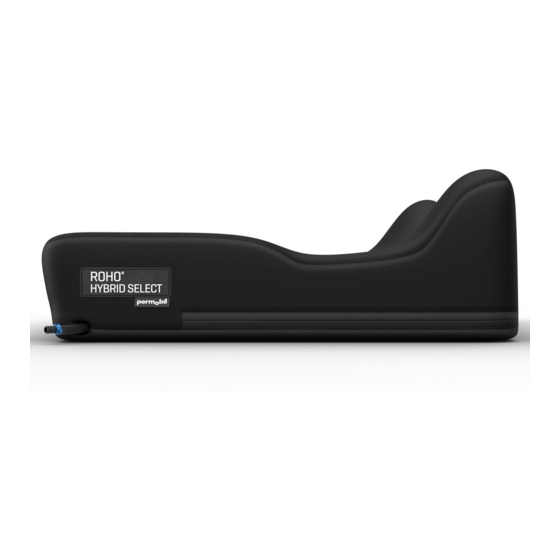

Permobil ROHO Hybrid Select Quick Setup Manual

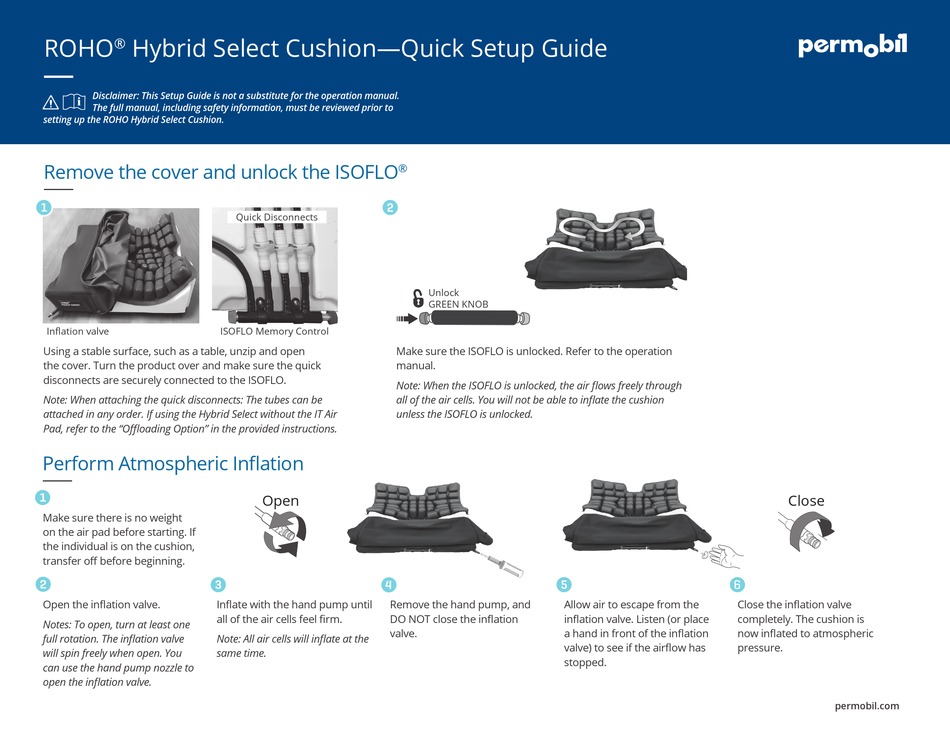

ROHO Hybrid Select Cushion—Quick Setup Guide
®
Disclaimer: This Setup Guide is not a substitute for the operation manual.
The full manual, including safety information, must be reviewed prior to
setting up the ROHO Hybrid Select Cushion.
Remove the cover and unlock the ISOFLO
Inflation valve ISOFLO Memory Control
Using a stable surface, such as a table, unzip and open
the cover. Turn the product over and make sure the quick
disconnects are securely connected to the ISOFLO.
Note: When attaching the quick disconnects: The tubes can be
attached in any order. If using the Hybrid Select without the IT Air
Pad, refer to the "Offloading Option" in the provided instructions.
Perform Atmospheric Inflation
Make sure there is no weight
on the air pad before starting. If
the individual is on the cushion,
transfer off before beginning.
Open the inflation valve. Inflate with the hand pump until
all of the air cells feel firm.
Notes: To open, turn at least one
full rotation. The inflation valve Note: All air cells will inflate at the
will spin freely when open. You same time.
can use the hand pump nozzle to
open the inflation valve.
®
Quick Disconnects
Make sure the ISOFLO is unlocked. Refer to the operation
manual.
Note: When the ISOFLO is unlocked, the air flows freely through
all of the air cells. You will not be able to inflate the cushion
unless the ISOFLO is unlocked.
Open
Remove the hand pump, and
DO NOT close the inflation
valve.
Unlock
GREEN KNOB
Allow air to escape from the
inflation valve. Listen (or place
a hand in front of the inflation
valve) to see if the airflow has
stopped.
Close
6
Close the inflation valve
completely. The cushion is
now inflated to atmospheric
pressure.
permobil.com
