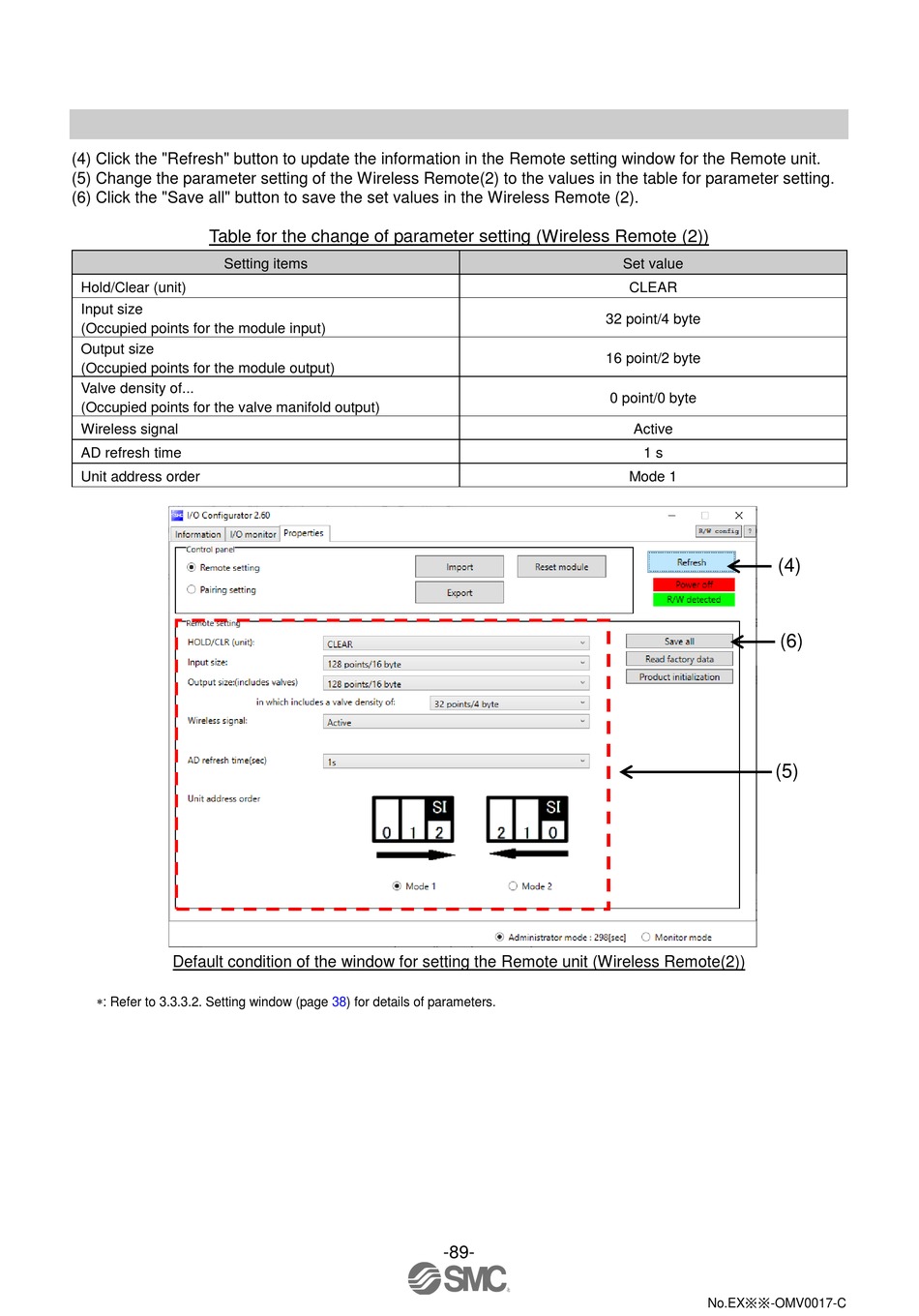

(4) Click the "Refresh" button to update the information in the Remote setting window for the Remote unit.
(5) Change the parameter setting of the Wireless Remote(2) to the values in the table for parameter setting.
(6) Click the "Save all" button to save the set values in the Wireless Remote (2).
Table for the change of parameter setting (Wireless Remote (2))
Setting items
Hold/Clear (unit)
Input size
(Occupied points for the module input)
Output size
(Occupied points for the module output)
Valve density of...
(Occupied points for the valve manifold output)
Wireless signal
AD refresh time
Unit address order
Default condition of the window for setting the Remote unit (Wireless Remote(2))
: Refer to 3.3.3.2. Setting window (page 38) for details of parameters.
32 point/4 byte
16 point/2 byte
0 point/0 byte
-89-
Set value
CLEAR
Active
1 s
Mode 1
(4)
(6)
(5)
No.EX※※-OMV0017-C
