3. Window of I/O Configurator (NFC version)

In this chapter, the screen display in I/O Configurator (NFC version) in Wireless Base/Remote will be
explained.

3.1. Basic characteristics

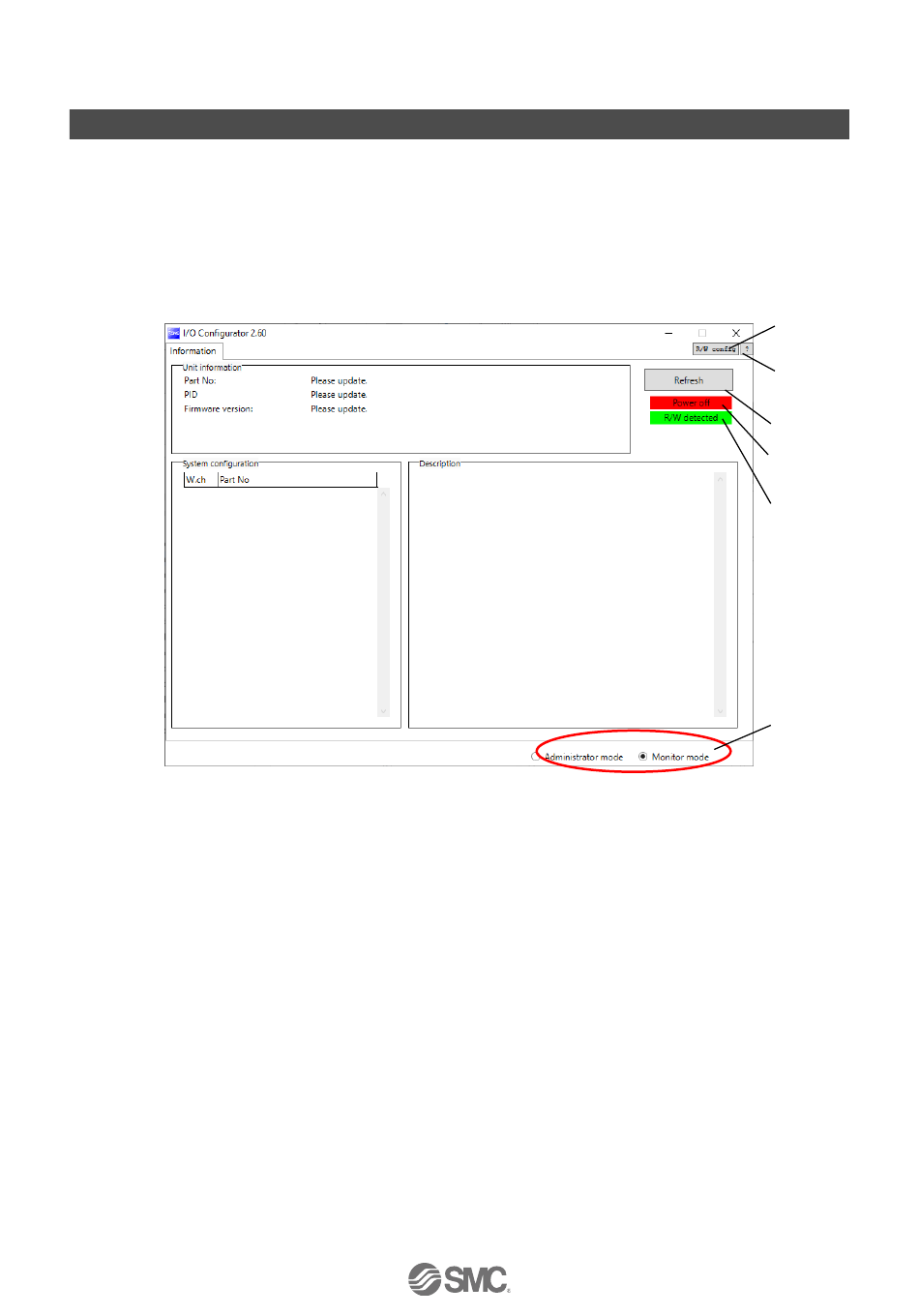

The window below is displayed when the I/O configurator for NFC starts. Place the NFC reader/writer within 1
cm of the centre of the wireless symbol on the wireless unit to display the Wireless Base/Remote information
and change the parameter setting.
Here, basic functions of the I/O configurator for NFC are given.
-11-
(1)
(2)
(3)
(4)
(5)
(6)
