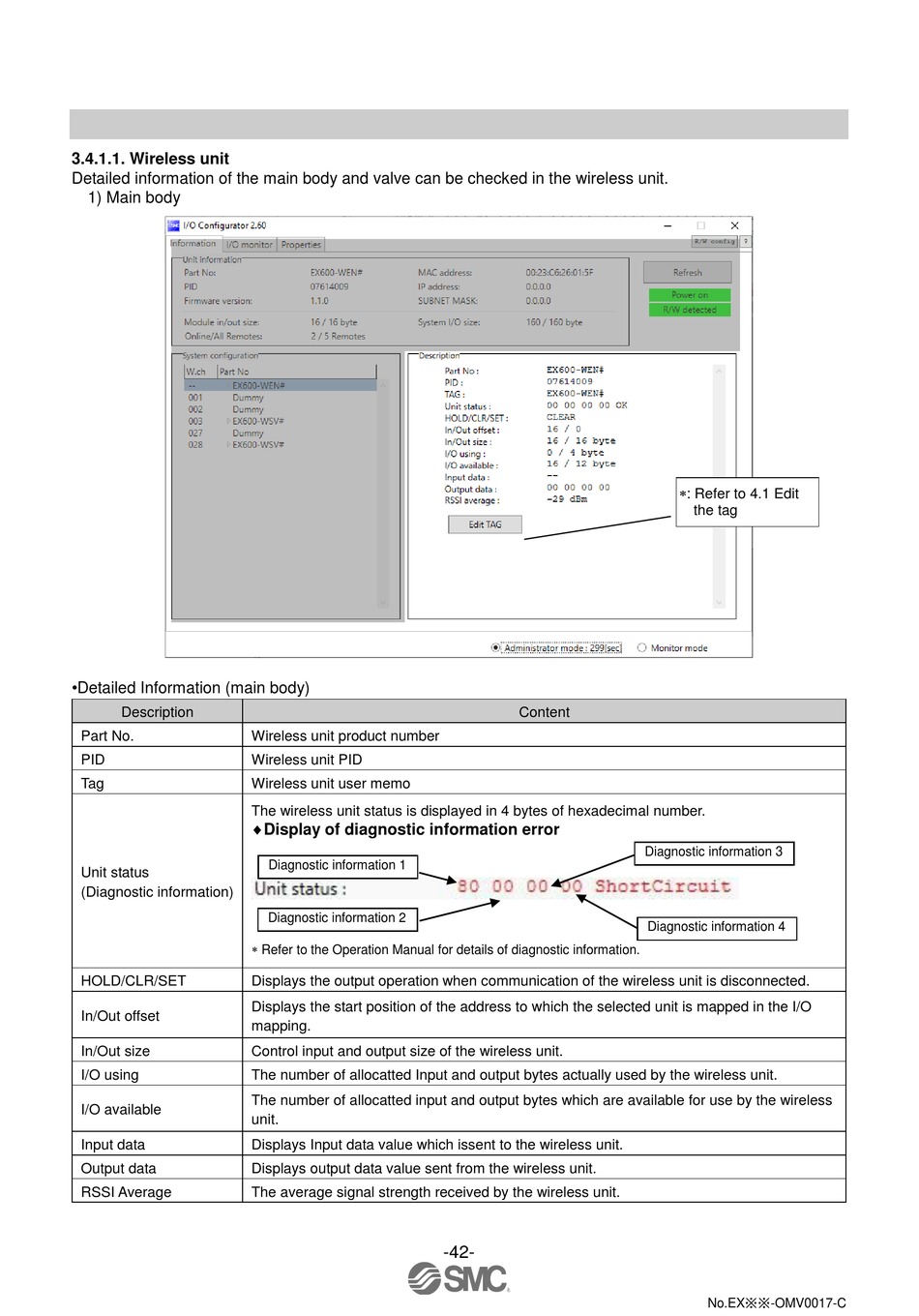

3.4.1.1. Wireless unit
Detailed information of the main body and valve can be checked in the wireless unit.
1) Main body
•Detailed Information (main body)
Description
Part No.
PID
Tag
Unit status
(Diagnostic information)
HOLD/CLR/SET
In/Out offset
In/Out size
I/O using
I/O available
Input data
Output data
RSSI Average
Wireless unit product number
Wireless unit PID
Wireless unit user memo
The wireless unit status is displayed in 4 bytes of hexadecimal number.
Display of diagnostic information error
Diagnostic information 1
Diagnostic information 2
 Refer to the Operation Manual for details of diagnostic information.
Displays the output operation when communication of the wireless unit is disconnected.
Displays the start position of the address to which the selected unit is mapped in the I/O
mapping.
Control input and output size of the wireless unit.
The number of allocatted Input and output bytes actually used by the wireless unit.
The number of allocatted input and output bytes which are available for use by the wireless
unit.
Displays Input data value which issent to the wireless unit.
Displays output data value sent from the wireless unit.
The average signal strength received by the wireless unit.
Content
-42-
: Refer to 4.1 Edit
the tag
Diagnostic information 3
Diagnostic information 4
