1. Introduction

This operation manual describes the installation, construction of screens and operation method of the I/O
configurator for NFC. The SMC wireless system I/O Configurator for NFC can be used to check the parameter
setting of the wireless unit and the contents and status of the constructed wireless system, using an NFC
reader/writer and a PC.
There are two types of settable parameters with the I/O Configurator: the parameters which can be read or
written when no power is supplied to the product and the parameters which can be read or written only
when the power is supplied to the product.

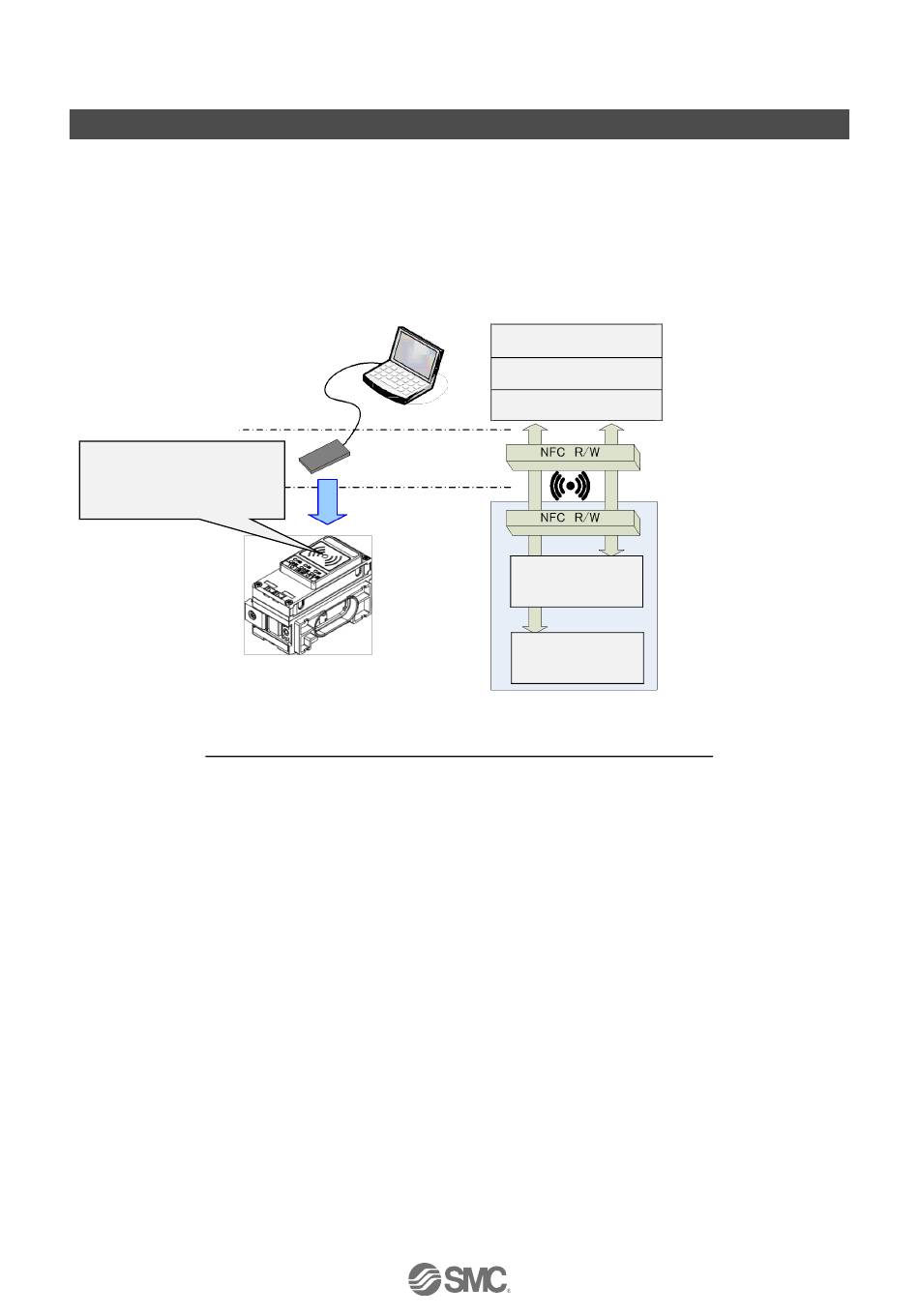

The connection details of the I/O Configurator for NFC and the wireless unit is shown in the below figure.
Establish communication by
adjusting the position so that the
height from the center of the
NFCR/W antenna to the "O" on the
wireless unit is 1 cm or less.
Connection details of the I/O Configurator for NFC and the wireless unit
Before the wireless system can be used, it is necessary to pair each Remote with its Base using the
I/O configurator for NFC.
The following sections of this document should be read before using the I/O configurator for NFC;
2. Preparation before use (page 7), which describes installation of drivers and the I/O configurator software
3.1.1. Login as administrator (page 13)
5. Pairing of wireless unit (page 70)
6. Wireless system configuration example (page 76)
I/O Configurator
※
Memory area where
power supply is
unnecessary.
Memory area where
power supply is
necessary.
※One PC will recognize one NFC reader / writer per application setting.
-3-
PC
OS (Windows)
PC/SC driver
NFC reader/writer
Wireless Base unit
Wireless Remote unit
Do not connect multiple NFC readers / writers to a PC.
