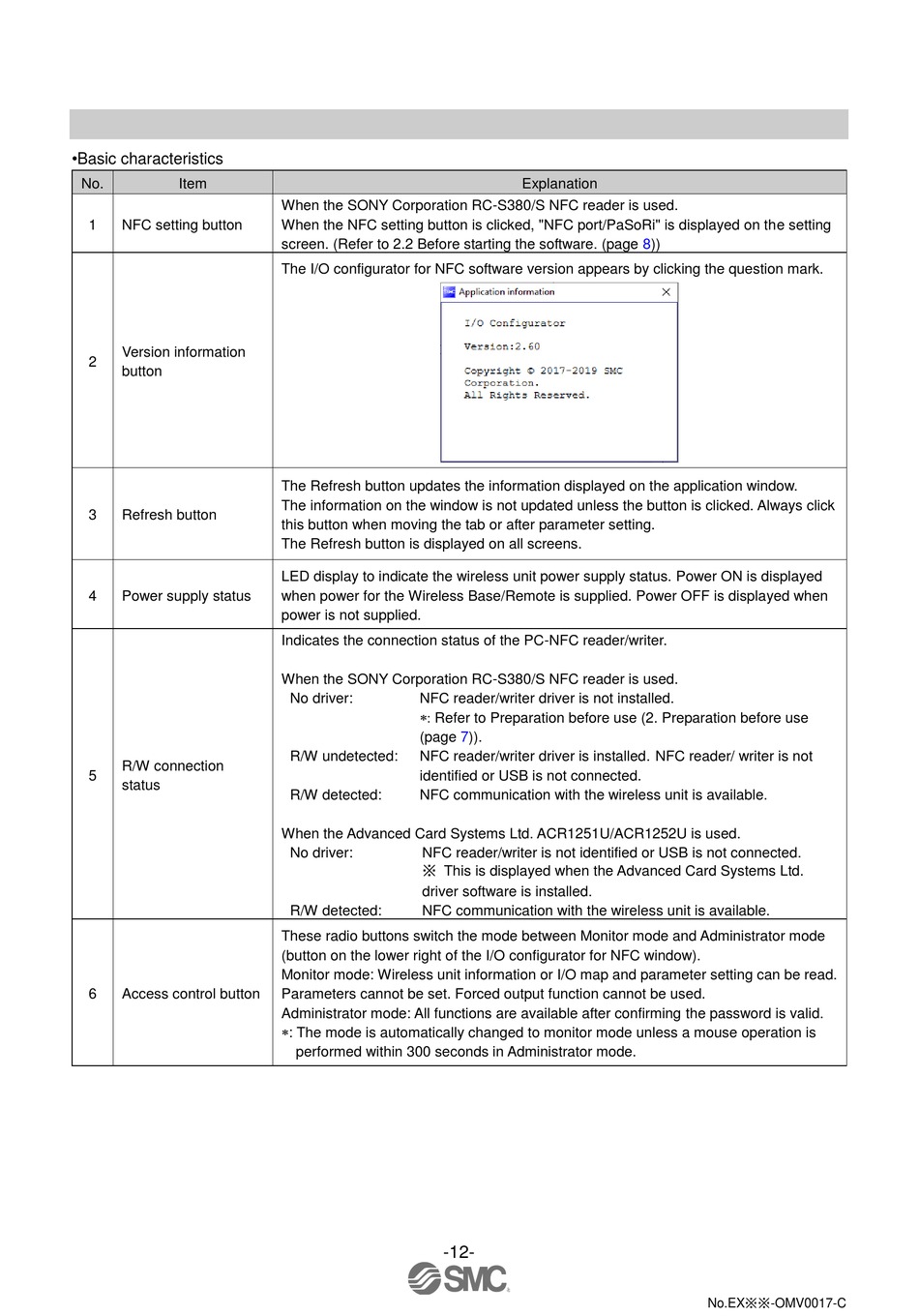

•Basic characteristics
No. Item
1 NFC setting button
Version information
2
button
3 Refresh button
4 Power supply status
R/W connection
5
status
6 Access control button
When the SONY Corporation RC-S380/S NFC reader is used.
When the NFC setting button is clicked, "NFC port/PaSoRi" is displayed on the setting
screen. (Refer to 2.2 Before starting the software. (page 8))
The I/O configurator for NFC software version appears by clicking the question mark.
The Refresh button updates the information displayed on the application window.
The information on the window is not updated unless the button is clicked. Always click
this button when moving the tab or after parameter setting.
The Refresh button is displayed on all screens.
LED display to indicate the wireless unit power supply status. Power ON is displayed
when power for the Wireless Base/Remote is supplied. Power OFF is displayed when
power is not supplied.
Indicates the connection status of the PC-NFC reader/writer.
When the SONY Corporation RC-S380/S NFC reader is used.
No driver: NFC reader/writer driver is not installed.
Refer to Preparation before use (2. Preparation before use
(page 7)).
R/W undetected: NFC reader/writer driver is installed. NFC reader/ writer is not
identified or USB is not connected.
R/W detected: NFC communication with the wireless unit is available.
When the Advanced Card Systems Ltd. ACR1251U/ACR1252U is used.
No driver: NFC reader/writer is not identified or USB is not connected.
※ This is displayed when the Advanced Card Systems Ltd.
driver software is installed.
R/W detected: NFC communication with the wireless unit is available.
These radio buttons switch the mode between Monitor mode and Administrator mode
(button on the lower right of the I/O configurator for NFC window).
Monitor mode: Wireless unit information or I/O map and parameter setting can be read.
Parameters cannot be set. Forced output function cannot be used.
Administrator mode: All functions are available after confirming the password is valid.
: The mode is automatically changed to monitor mode unless a mouse operation is
performed within 300 seconds in Administrator mode.
