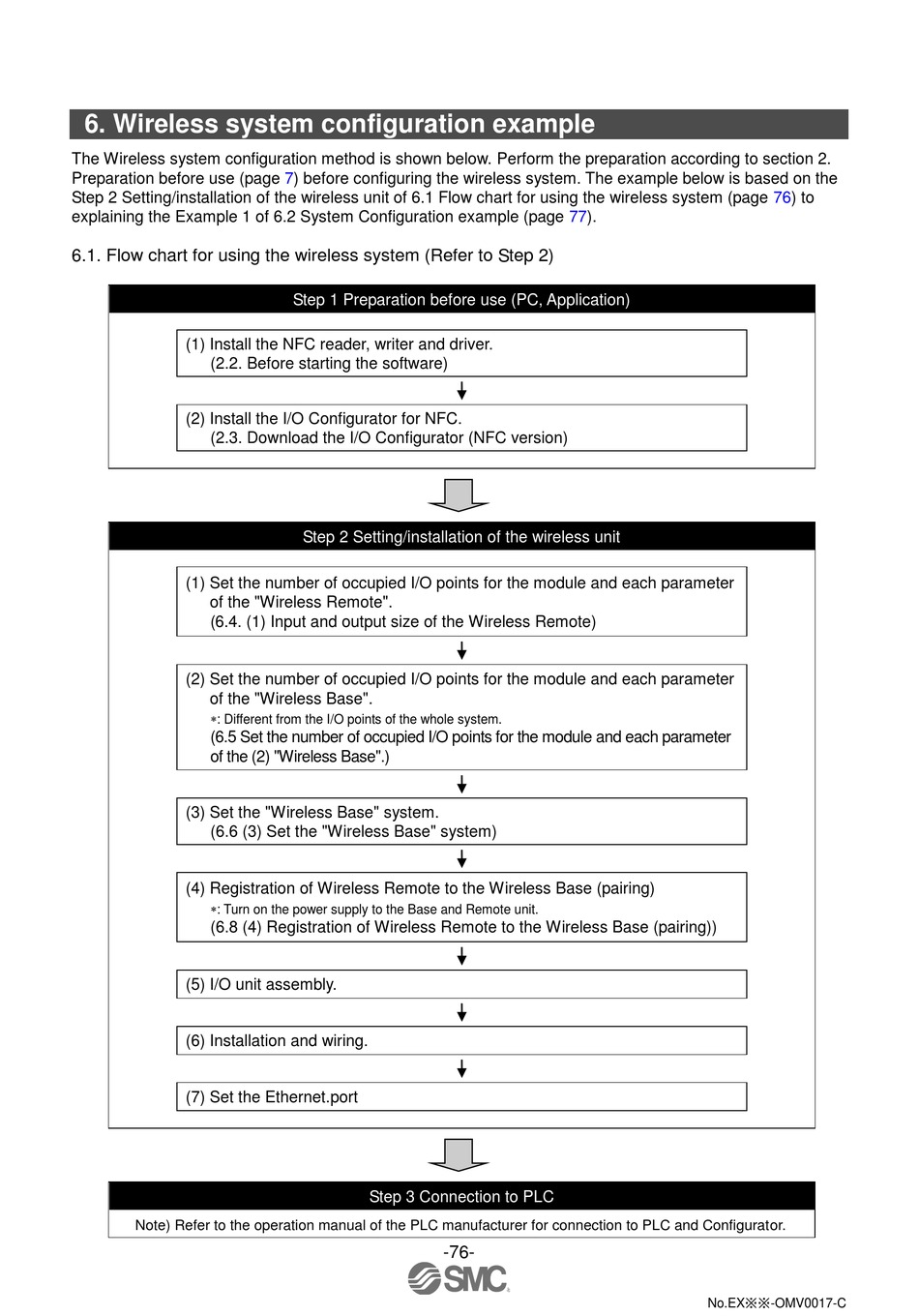

6. Wireless system configuration example

The Wireless system configuration method is shown below. Perform the preparation according to section 2.
Preparation before use (page 7) before configuring the wireless system. The example below is based on the
Step 2 Setting/installation of the wireless unit of 6.1 Flow chart for using the wireless system (page 76) to
explaining the Example 1 of 6.2 System Configuration example (page 77).

6.1. Flow chart for using the wireless system (Refer to Step 2)

(1) Install the NFC reader, writer and driver.
(2.2. Before starting the software)
(2) Install the I/O Configurator for NFC.
(2.3. Download the I/O Configurator (NFC version)
(1) Set the number of occupied I/O points for the module and each parameter
of the "Wireless Remote".
(6.4. (1) Input and output size of the Wireless Remote)
(2) Set the number of occupied I/O points for the module and each parameter
of the "Wireless Base".
: Different from the I/O points of the whole system.
(6.5 Set the number of occupied I/O points for the module and each parameter
of the (2) "Wireless Base".)
(3) Set the "Wireless Base" system.
(6.6 (3) Set the "Wireless Base" system)
(4) Registration of Wireless Remote to the Wireless Base (pairing)
: Turn on the power supply to the Base and Remote unit.
(6.8 (4) Registration of Wireless Remote to the Wireless Base (pairing))
(5) I/O unit assembly.
(6) Installation and wiring.
(7) Set the Ethernet.port
Note) Refer to the operation manual of the PLC manufacturer for connection to PLC and Configurator.
Step 1 Preparation before use (PC, Application)
Step 2 Setting/installation of the wireless unit
Step 3 Connection to PLC
-76-
No.EX※※-OMV0017-C
