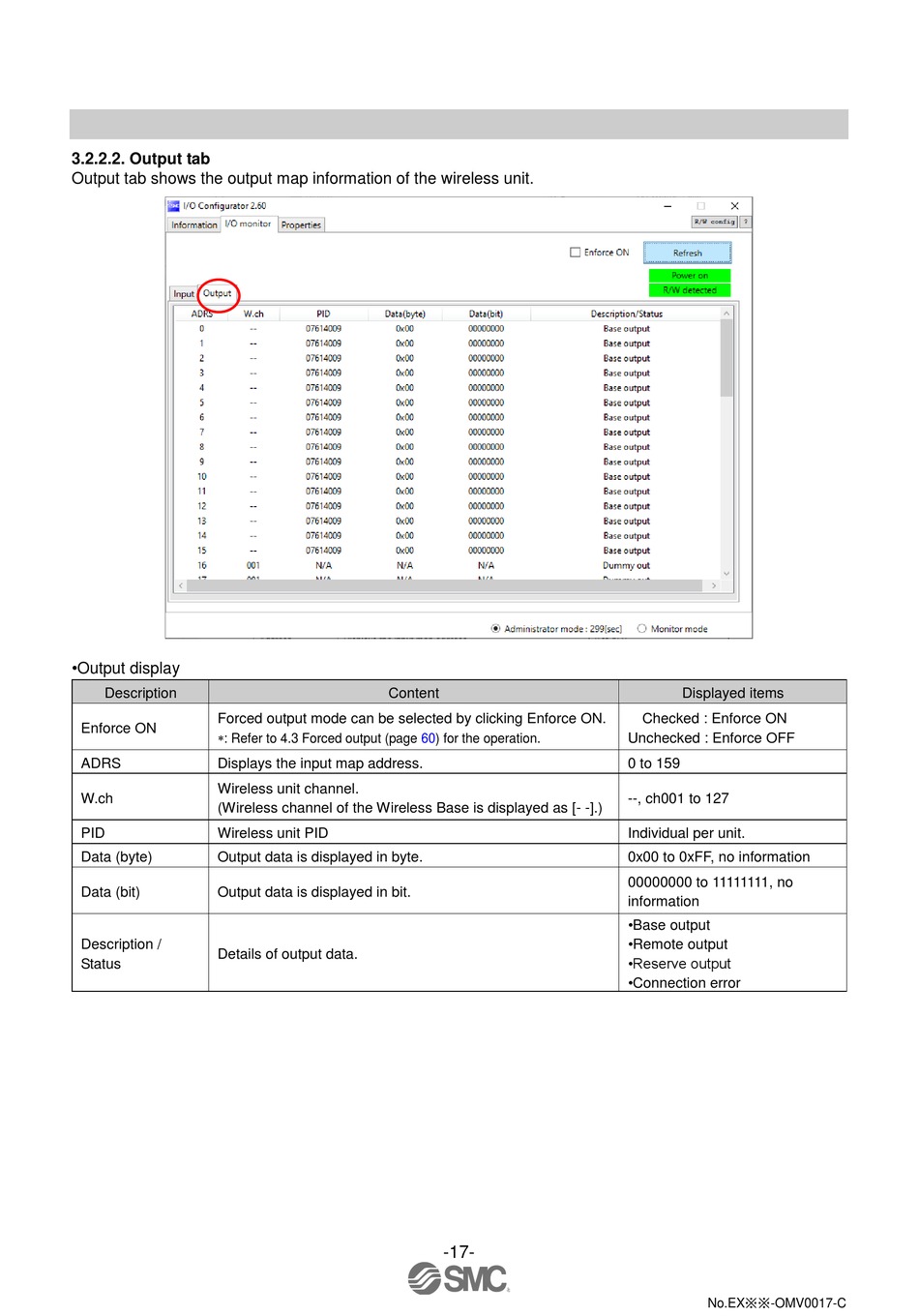

3.2.2.2. Output tab
Output tab shows the output map information of the wireless unit.
•Output display
Description
Forced output mode can be selected by clicking Enforce ON.
Enforce ON
: Refer to 4.3 Forced output (page 60) for the operation.
ADRS Displays the input map address.
Wireless unit channel.
W.ch
(Wireless channel of the Wireless Base is displayed as [- -].)
PID Wireless unit PID
Data (byte) Output data is displayed in byte.
Data (bit) Output data is displayed in bit.
Description /
Details of output data.
Status
Content
-17-
Displayed items
Checked : Enforce ON
Unchecked : Enforce OFF
0 to 159
--, ch001 to 127
Individual per unit.
0x00 to 0xFF, no information
00000000 to 11111111, no
information
•Base output
•Remote output
•Reserve output
•Connection error
