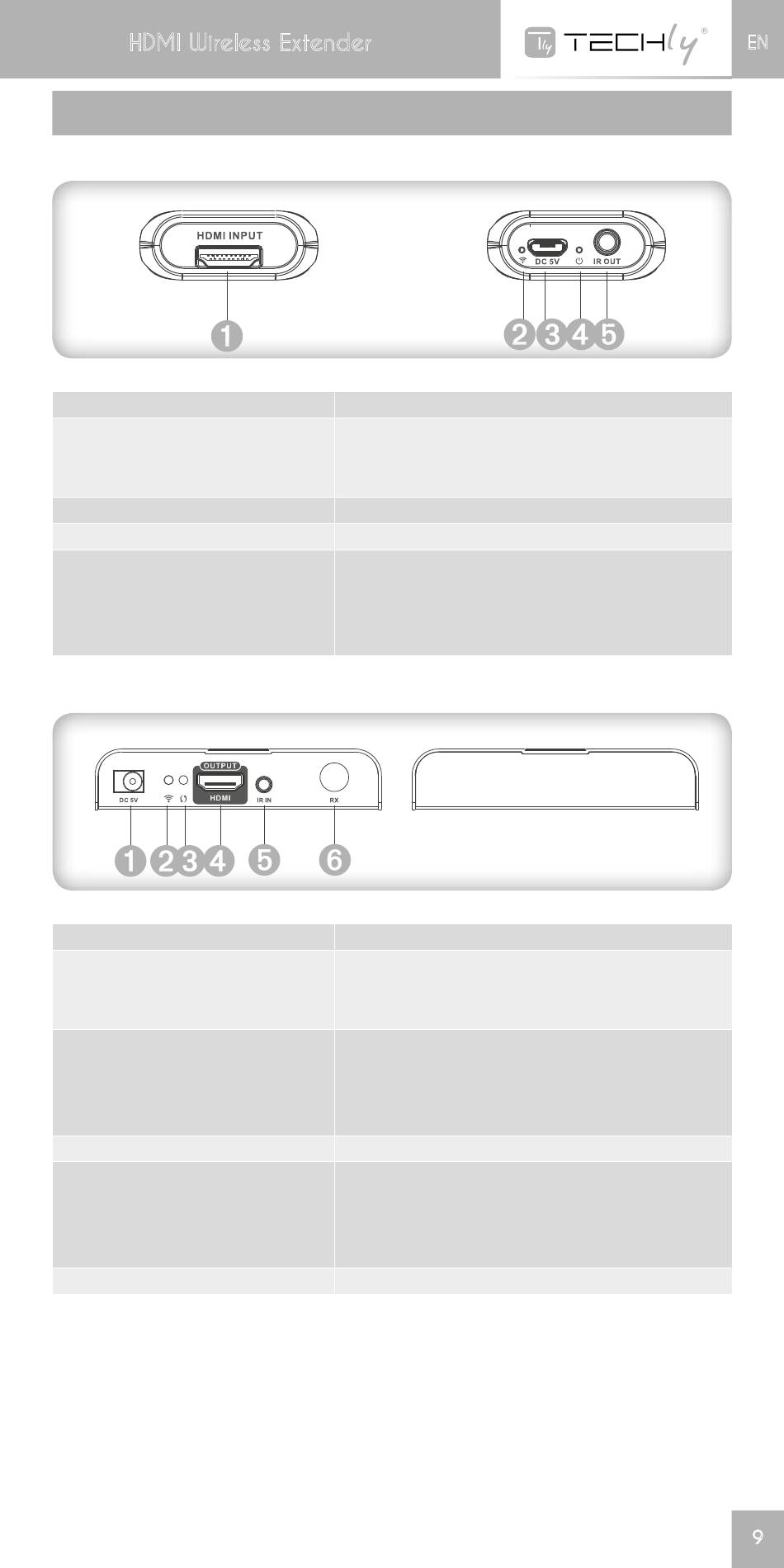

PAnEl dEsCrIPtIOn

HdMI ExtEndEr tx (sender)
(1) HDMI input
(2) Connections indicator
(3) Power input
(4) Power indicator
(5) IR blaster extension
cable interface
HdMI ExtEndEr rx (receiver)
(1) Power input
(2) Wireless connections
indicator
(3) Data transmission
indicator
(4) HDMI output
(5) IR receiver extension
cable interface
(6) Antenna
Connect with HDMI source device
LED indicator keep on when HDMI
signal input, blink when data is
transmitted
Connect with USB power cable
LED indicator turn on when power on
Connect with IR blaster extension
cable. Please put the IR blaster close
to source device to best transmit the
IR signal from receiver
Connect with DC5V/2A power adapter
It's on when the transmitter and the
receiver connect well with each other,
otherwise it's off
Led blinks slowly when it is building
connection. Led blinks fast when
it is successfully connected and
transmitting data
Connect with HDMI display device
Connect with IR receiver extension
cable. Please make sure the remote
control is within the required range of
IR receiver
Receive wireless signal
