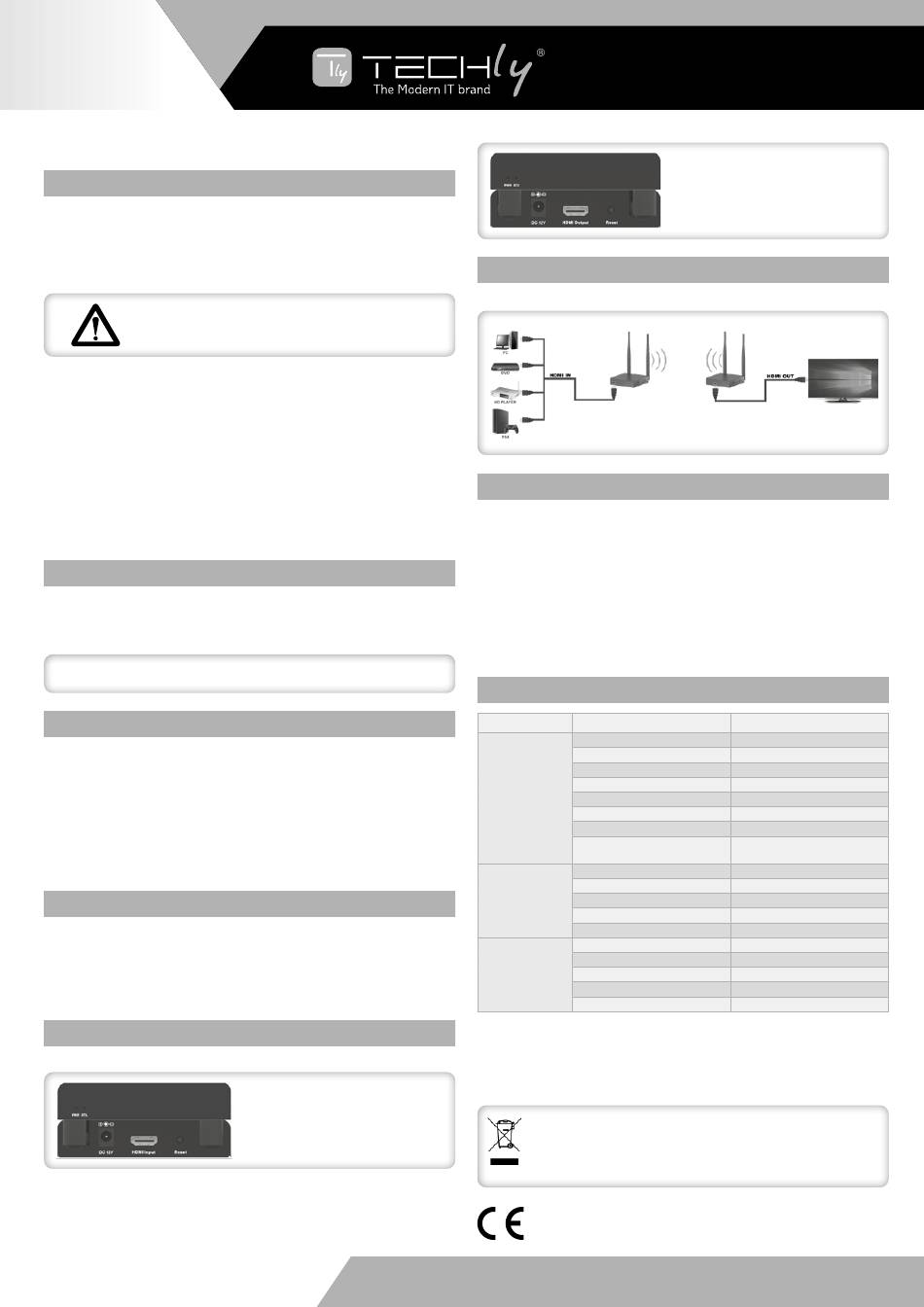

Techly IDATA HDMI-WL55 Quick Start Manual

EN
Dear Customer, thank you for purchasing this product. For optimum performance and safety,
please read these instructions carefully before connecting, operating or adjusting this product.
Please keep this manual for future reference.
INTENDED USE
We do not permit using the device in other ways like described in this user's manual. Use the product
only in dry interior rooms. Not attending to these regulations and safety instruction might cause fatal
accidents, injuries, and damages to persons and property. The manufacturer/supplier assumes no
liability for damages caused by failure to comply with the intended use. To reduce risk of electric shock,
this product should ONLY be opened by an authorized technician when service is required. Disconnect
the product from mains and other equipment if a problem should occur. Do not expose the product to
water or moisture.
CAUTION - RISK OF ELECTRIC SHOCK
• Your product is not a toy and is not meant for children, because it contains small parts which can be
swallowed and can injure when used inappropriately!
• Please install the system and devices attached to it in a way that persons cannot be injured, or
objects not be damaged for example by dropping or stumbling.
• Please remove the packing materials, because children may cut themselves on them while playing.
Furthermore, there is a risk of swallowing and inhalation of incidentals and insulating material.
• Avoid places the product under the sun, rain or unventilated environment. Avoid place product with
high temperatures, or humidity, or places which might come into contact with water. Do not install
the product close to openings of air conditioners, or at places with an excessive amount of dust or
smoke. Keeps distance from flammable and explosive devices.
• Do not install the product at places subject to vibration, or oscillation.
• Do not modify and alter the product and any accessories! Do not use any damaged parts.
• Keep enough space around all devices for a good ventilation and free motion and to avoid damages.
• Do not insert metal or other objects into the equipment to avoid to damage it.
• Please plug and unplug the cables gently, do not often plug, unplug or shake them.
INTRODUCTION

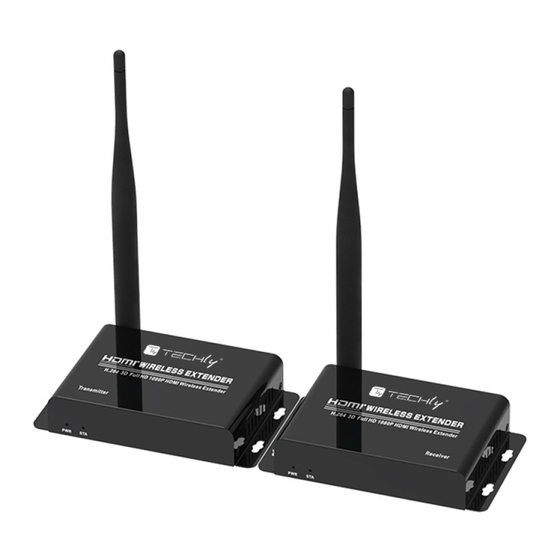

This HDMI wireless extender includes transmitter unit and receiver unit, allows to transmit and extend
HDMI signal up to 50 meters long away wirelessly. It has string anti-interference ability by running
at 5GHz operation frequency. Supports point to point connection. It is really a very good solution for
meeting, conference, home entertainment and multi-media education etc.
Note: Transmission distance will be different due to the environment.
Wall, brick or glass will shorten the signal cover range or cause big signal loss.
FEATURES
• Smart portable design, high performance
• HDMI video and audio transmission via wireless WIFI, up to 50 meters
• Compatible HDMI1.3 and HDCP1.2
• Supports HD video resolution up to 1920x1080p@60Hz
• Supports video compression format H.264 for effectively improve the transfer efficiency and fluency
playback fluency
• Supports point to point wireless configuration
• Able to automatically identify and configure a variety of display mode
• Built-in automatic balance system, the picture is fluent, clear and stable
• The built-in ESD electrostatic protection circuit, comprehensive security protection system
• Plug and play, easy installation, no need any configuration
PACKAGE CONTENTS
• HDMI sender x 1pc
• HDMI receiver x 1pc
• DC 12V Power supply x 2 pcs
• User's manual x 1pc
Note: above accessories are contented in the regular package for the kit with transmitter and receiver.
If buy HDMI Extender TX or HDMI Extender RX separately, the package contents would be different.
PANEL DESCRIPTION
Transmitter
DO NOT OPEN
PWR Power status
....................
STA Signal status
......................
DC/12V DC Power input port
..............
HDMI Input HDMI input port
.....
Reset Reset button
..................
HDMI WIRELESS EXTENDER 50M
Receiver
CONNECTION
Point to Point connection
CONNECTION INSTRUCTION
1) Connect HDMI input with HDMI source device and connect IR blaster extension cable to IR OUT
interface of the sender (TX).
2) Connect HDMI output with HDMI display device and connect IR receiver extension cable with IR IN
interface.
3) Check that the transmitter and receiver are placed within the indicated operating range and that
there are no obstacles that could compromise the signal transmission between them
4) Power on the device (power led lights) and it works.
Note:
1) When the wireless signal transmits through wall, glass or other obstacles, it will cause signal loss.
Please install this device in good environment with few obstacles.
2) The external environment wireless signal interference the transmission, such as micro waver,
wireless mouse and keyboard, etc...
SPECIFICATION
Parameter
Standard
Compression format
Maximum pixel clock
Maximum data rate
Video
Resolution
Connector
Impedance
Recommend HDMI maximum
input/output range
Radio frequency power
Wireless standard
Wireless Signal direction
Radio frequency
Transmission distance
Power
Power dissipation
Other Operating temperature
humidity (no condensation)
Dimension (each unit)
Maintenance:
Clean only with a dry cloth. Do not use cleaning solvents or abrasives.
Warranty:
No guarantee or liability can be accepted for any changes and modifications of the product or damage
caused due to incorrect use of this product.
In compliance with EU Directive WEEE this product is marked with this symbol. It
means that used electrical and electronic products should not be mixed with general
household waste. There is a separate collections system for these products in
compliance with WEEE directive, otherwise contaminative and hazardous substances
can pollute the environment.
With the CE sign, Techly ensures that the product is conformed to the basic European
®
standards and directives.
PWR Power status
.......................
STA Signal status
.........................
DC/12V DC Power input port
.................
HDMI Output HDMI Output port
....
Reset Reset button
.....................
Specification
HDMI1.3; HDCP1.2
H.264
165MHz
6.75Gbps
1920x1080p@60Hz
HDMI-A male
100 Ohm
Less than 5 meters,
when 1920 x1080p@60Hz
13dbm
802.11ac
unidirectional
5.8Ghz
50m
DC 12V
Max 5W
-5°C –70°C
5-90%
120 x 73 x 22 mm
