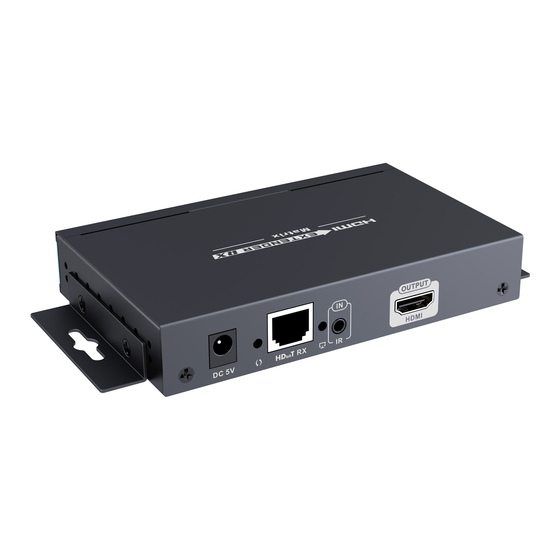

Summary of Contents for Techly IDATA HDMI-MX383

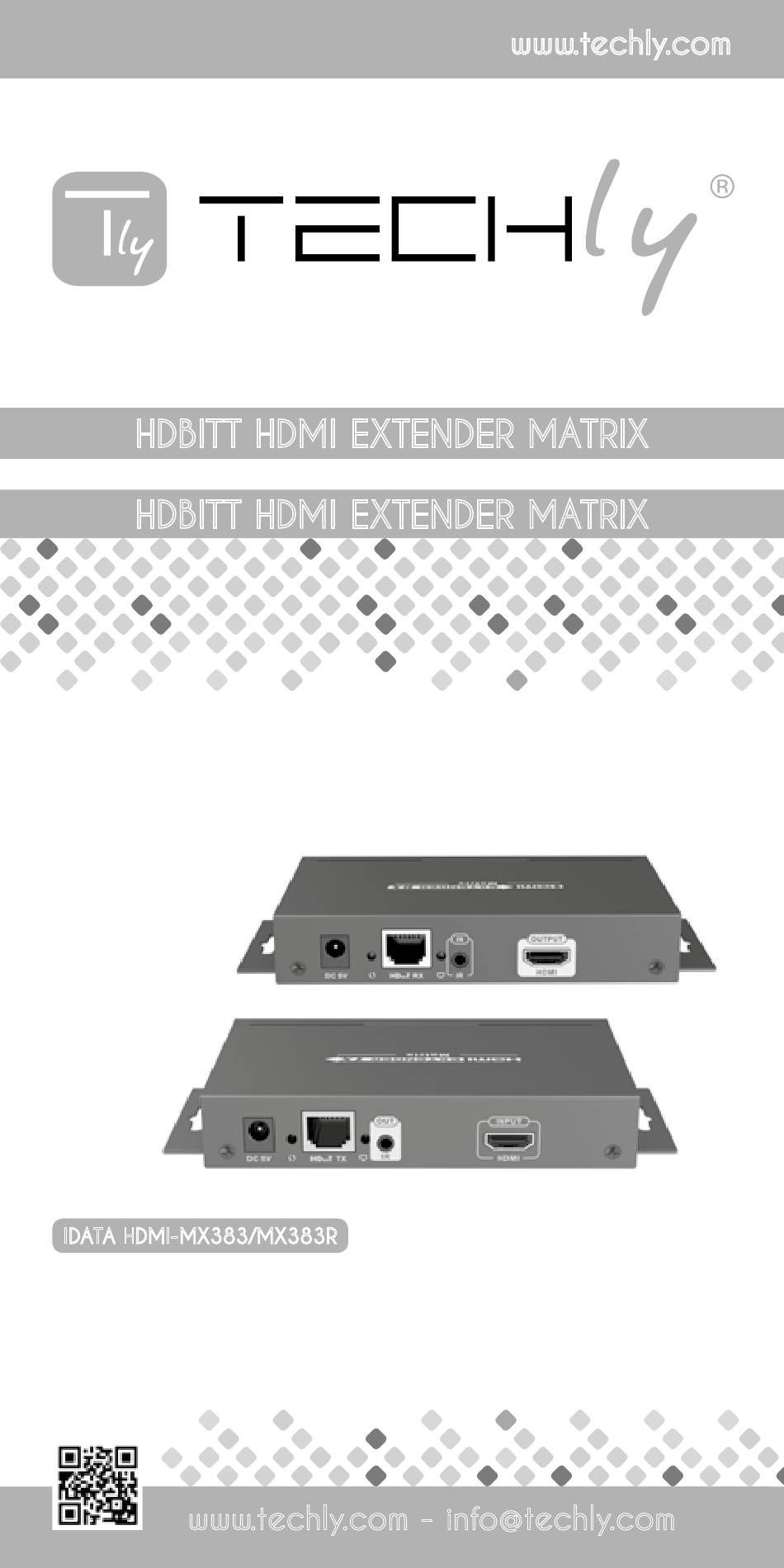

  • Page 1 Manuale d’istruzione User’s manual idata hdmi-mx383/mx383r www.techly.com - info@techly.com...
  • Page 2: Importanti Informazioni Sulla Sicurezza

    hdbitt hdmi extender matrix HDBITT HDMI EXTENDER MATRIX Gentile Cliente Grazie per aver acquistato questo prodotto. Per ottenere il massimo delle prestazioni nella salvaguardia della sua sicurezza, le consigliamo di leggere con attenzione il presente manuale prima di collegare e mettere in funzione il prodotto. Tenga sempre a disposizione il presente manuale per ulteriori esigenze future.
  • Page 3: Caratteristiche Del Prodotto

        configurazione utilizzando facilmente un telefono o un tablet. CONTENUTO DELLA CONFEZIONE MODELLO IDATA HDMI-MX383 • Trasmettitore x 1pz • Prolunga IR blaster x 1pz • Alimentatore DC5V/2A x 1pz • Manuale utente x 1pz • Kit montaggio a muro x 2pz • Viti x 4pz...
  • Page 4: Requisiti D'installazione

    hdbitt hdmi extender matrix REqUISITI D’INSTALLAZIONE 1. Periferiche HDMI sorgente: provviste di uscita HDMI, DVD, PS3, STB, PC ecc. 2. Dispositivi di visualizzazione: provviste di porta di ingresso HDMI, SDTV, HDTV, proiettore, ecc. 3. Cavi di rete: Cavi di rete UTP/STP CAT5/5E/6 conformi allo standard EIA-568B. Lunghezza di trasmissione: CAT5 80m/CAT5E 100m/CAT6 120m.
  • Page 5: Schema Di Collegamento

    hdbitt hdmi extender matrix HDMI OVER IP EXTENDER INSTALLAZIONE E CONNESSIONE Come preparare un cavo di rete Cat.5/6 Seguire lo standard EIA-568B 1 - Arancio/bianco 5 - Blu/bianco 2 - Arancio 6 - Verde 3 - Verde/bianco 7 - Marrone/bianco 8 - Marrone 4 - Blu SCHEMA DI COLLEgAMENTO...
  • Page 6 hdbitt hdmi extender matrix gUIDA ALL’USO DELL’APP DI CONTROLLO HDbitT Matrix Controller MODE--APP "Matrix Controller" 1. Utenti Android: Scaricare l’App "Matrix Controller" tramite il telefono cellulare dal sito: http://www.hdbitt.com/download-matrix/. Utenti IOS: Scaricare l’ APP"Matrix Controller" dall’ Apple Store. 2. Per prima cosa, collegare il controller video matrix allo switch IGMP. Quindi, collegare il telefono cellulare/tablet e il controller video matrix insieme tramite hotspot“matrix”...
  • Page 7 hdbitt hdmi extender matrix 2. Modifica Cliccare sulla cornice sotto il tasto TX/RX per modificare il nome della periferica. 3. Trascina e rilascia Trascina il pulsante "TX" sul lato RX e rilasciare, per impostare una nuova connessione. Nota: non utilizzare contemporaneamente più di un dispositivo mobile/tablet per controllare il sistema.
  • Page 8 hdbitt hdmi extender matrix TASTO DI CONTROLLO C’è un “TX ID” sull’unità trasmittente, e c’è sia un “RX ID” che un “TX connected” sull’unità RX. Ognuno di questi consiste di due display e due pulsanti (accanto al display), il pulsante sinistro controlla il valore del display di sinistra, quello destro controlla il valore del display di destra.
  • Page 9 hdbitt hdmi extender matrix CONFIgURAZIONE IP Il trasmettitore e il ricevitore hanno il loro indirizzo IP predefinito, l'IP di TX è 192.168.1.238, e l'IP di RX è 192.168.1.239. In genere, non è necessario modificare l’indirizzo IP del dispositivo, poiché il sistema può...
  • Page 10 hdbitt hdmi extender matrix * Impostazione nome della perifierica come figura 4 * Impostazione del canale della periferica (TX ID) come figura 5 Cliccare il tasto “Aggiorna” per salvare la nuova configurazione Modifica la modalità pre-operazione, come mostrato nella figura 6...
  • Page 11 hdbitt hdmi extender matrix Impostazione selezione modalità operativa Seguire la figura 7, cliccare il tasto “Selezione modalità” per selezionare la modalità che si desidera utilizzare. q: Lo schermo della TV mostra “Attesa di connessione” nell’angolo destro? A: 1) Verificare se l’alimentatore del trasmettitore e dello switch sono connessi e assicurarsi che tutte le parti siano collegate correttamente.
  • Page 12: Declinazione Di Responsabilità

    Con il marchio CE, Techly garantisce che il prodotto e ® conforme alle norme e direttive europee richieste. Il testo completo della Dichiarazione di Conformità UE è disponibile sul sito WWW.TECHLY.COM nella scheda prodotto.
  • Page 13: Important Safety Instruction

    hdbitt hdmi extender matrix hdmi extender HDBITT HDMI EXTENDER MATRIX Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. IMPORTANT SAFETY INSTRUCTION INTENDED USE We do not permit using the device in other ways like...
  • Page 14: Product Introduction

    9. Support APP control, user can scan, preview, build up their configuration by using a phone/tablet easily. PACkAgE CONTENT P/N IDATA HDMI-MX383 • Transmitter unit x 1pc • IR blaster extension cable x 1pc • DC5V/2A power adapter x 1pc • Wall-mount kit x 2pcs...
  • Page 15: Installation Requirements

    hdbitt hdmi extender matrix INSTALLATION REqUIREMENTS 1. HDMI source devices: with HDMI OUTPUT interface, DVD, PS3, STB, PC etc. 2. Display devices: With HDMI INPUT port, SDTV, HDTV, projector etc. 3. Network cables: UTP/STP CAT5/5E/6 network cables, which following the standard of IEEE-568B.
  • Page 16: Installation And Connection

    hdbitt hdmi extender matrix INSTALLATION AND CONNECTION How to make a CAT5/5E/6 network cable Follow the standard of IEEE-568B: 1 - White/orange 5 - Blue/white 2 - Orange 6 - Green 3 - Green/white 7 - Brown/white 4 - Blue 8 - Brown CONNECTION DRAwINg Matrix configuration...
  • Page 17 hdbitt hdmi extender matrix HDMI OVER IP EXTENDER APP CONTROL USE gUIDE HDbitT Matrix Controller MODE--APP "Matrix Controller" 1. Android User: Download the App "Matrix Controller" by your mobile phone from the website: http://www.hdbitt.com/download-matrix/. IOS User: Download the APP"Matrix Controller" from the APP Store.
  • Page 18 hdbitt hdmi extender matrix 2. Edit Click the frame under the TX/RX button to edit device name. 3. Drag and drop Drag ”TX”button to the RX side and drop, to set up new connection. Note: please do not use more than one mobile phone/tablet to control the system simultaneously.
  • Page 19: Button Control

    hdbitt hdmi extender matrix BUTTON CONTROL There is a “TX ID” on TX unit, and there are both “RX ID”and “TX connected” on the RX unit. Each of them consists of two Nixie tubes and two buttons (beside the Nixie tube), the left button controls the value of the left Nixie tube, and the right one to control the value of the right Nixie tube.
  • Page 20 hdbitt hdmi extender matrix IP SETTINg TX and RX have their own default IP address, TX's IP is 192.168.1.238, and RX's IP is 192.168.1.239. Generally, it is no need to change the device IP address, as the system can work normally even though multiple TX units and multiple RX units connected into the system with their default IP address.
  • Page 21 hdbitt hdmi extender matrix * Device Name setting as Figure 4 * Device channel (TX ID) setting as Figure 5 Click button “Update”, new configuration saved Pre-operation mode editing , show as Figure 6...
  • Page 22 hdbitt hdmi extender matrix Operation mode selection setting Follow up Figure 7, Click button “Select Mode”, to choose the mode needed. q: TV display “Waiting for connection” on the right corner: A: 1) Please check if the power supply of transmitter and switcher is connected, and make sure all connection is correct and well.
  • Page 23: Specification

    EU Directive WEEE. With the CE sign, Techly ensures that the product is ® conformed to the basic European standards and directives. The full text of the EU Declaration of Conformity is available on the WWW.TECHLY.COM website in the product page.
  • Page 24 www.techly.com...
