9.2
For relay input integration: Connect the wire from a normally open relay contact to "relay 1" or
"relay 2" terminal on the QX-mini Master.
Note:

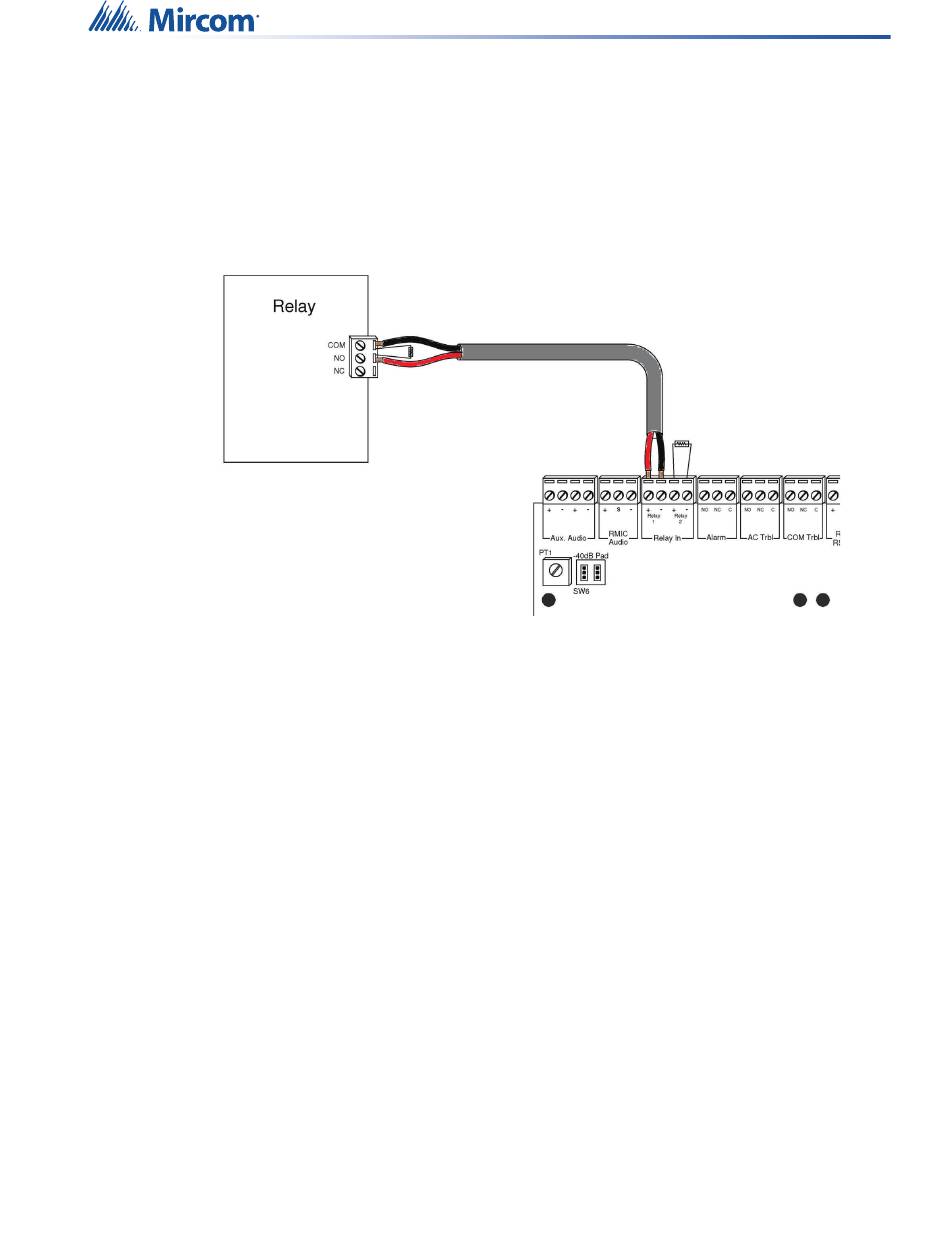

Figure 88 Relay wiring
If system is comprised of a QX-mini Master and booster panels, only
the QX-mini Master must be wired. Relay inputs on booster panels are
not configurable.
Relay Input - QX-mini and FX-3500
