Mircom QX-mini Programming Manual page 25

11. Click on "Edit Audio".

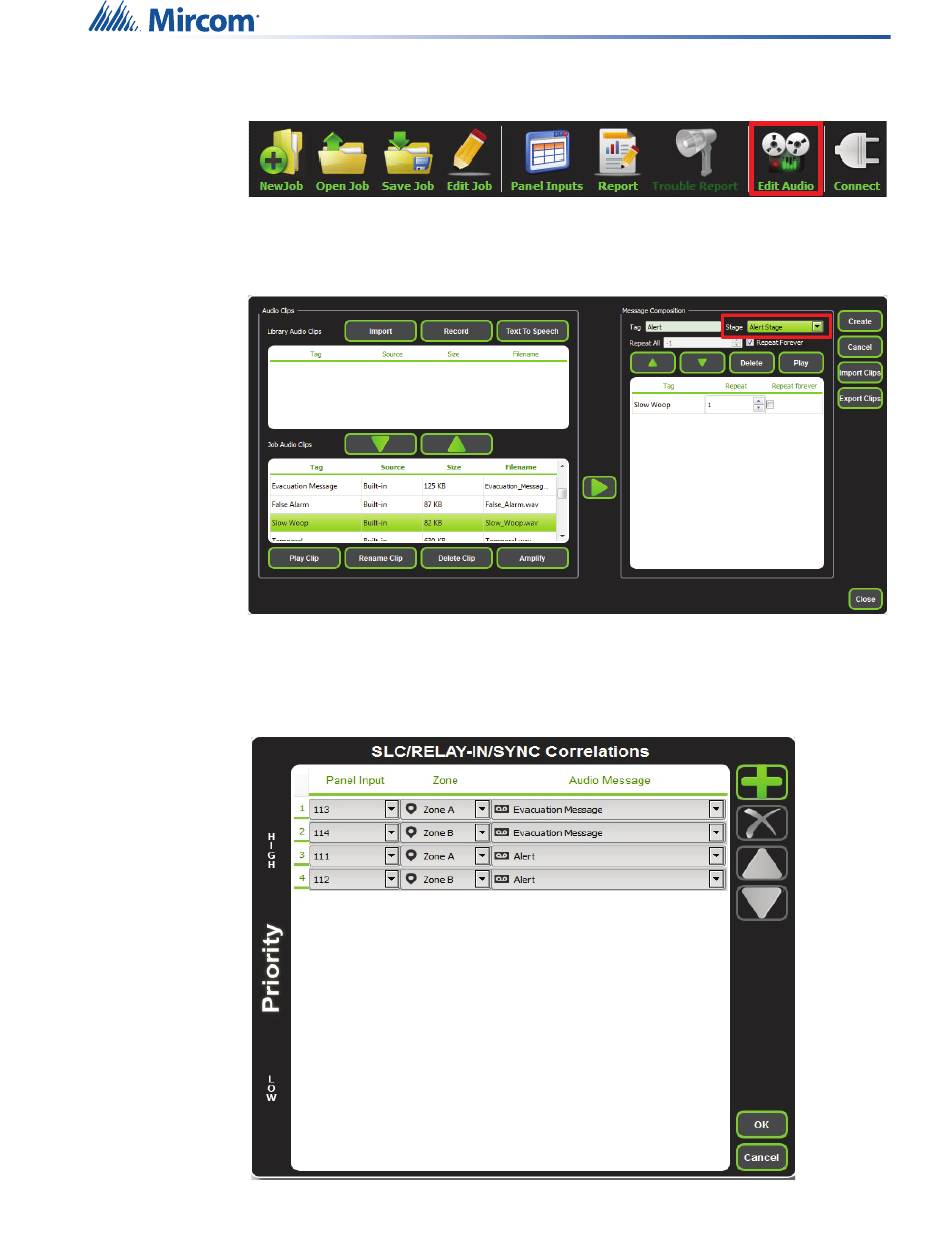

Figure 36 Edit Audio button
12. Click "Add" and create an alert and evac message based on the requirements. Ensure
that stage for Alert and Evac is selected from the drop down box as shown below:
Figure 37 Audio Clips
13. Click on panel inputs, click on the '+' sign. Select Panel input address to activate EVAC
and Alert zones. Ensure this address corresponds to modules in Figure 32. Ensure to
include two audio messages in the job file: Evac and Alert.
Figure 38 SLC/RELAY-IN/SYNC Correlations
SLC Integration - QX-mini and FleX-Net™ - Two Stage
25
