12.3 Configuration Steps
12.3.1 FX-2000 Configuration
1.
Open FX-2000 configurator.
2.
Create a new job or open an existing job.
3.
Click on the loop that has been wired to SLC terminal on QX-mini Master.
4.

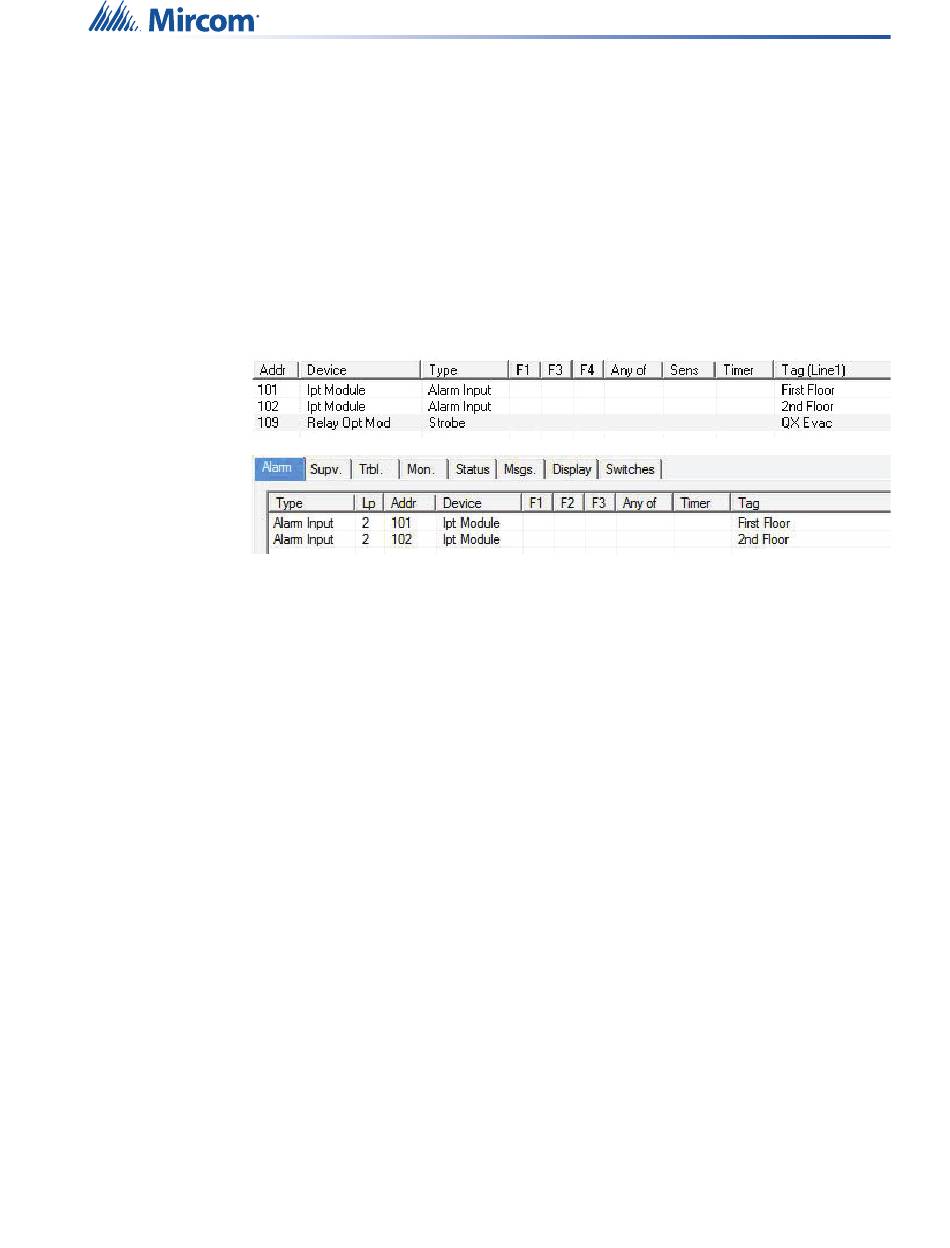

Configure the loop as shown in the window below.
Note:
Figure 121 The addresses may vary depending on each application
5.
Ensure all the addresses are correct and job is validated. Connect to the FX-2000 panel
and send the job.
84
In this example, relay output module (MIX-M500R) was used to activate
the EVAC zone. This module must be correlated to all the alarm inputs
in the job.
Relay Input - QX-mini and FX-2000
