Wiring

7.2

For SLC integration: Connect wire from preferred loop of FX-3500 to SLC terminal on QX-mini

Master.

Note:

7.2.1 Class A

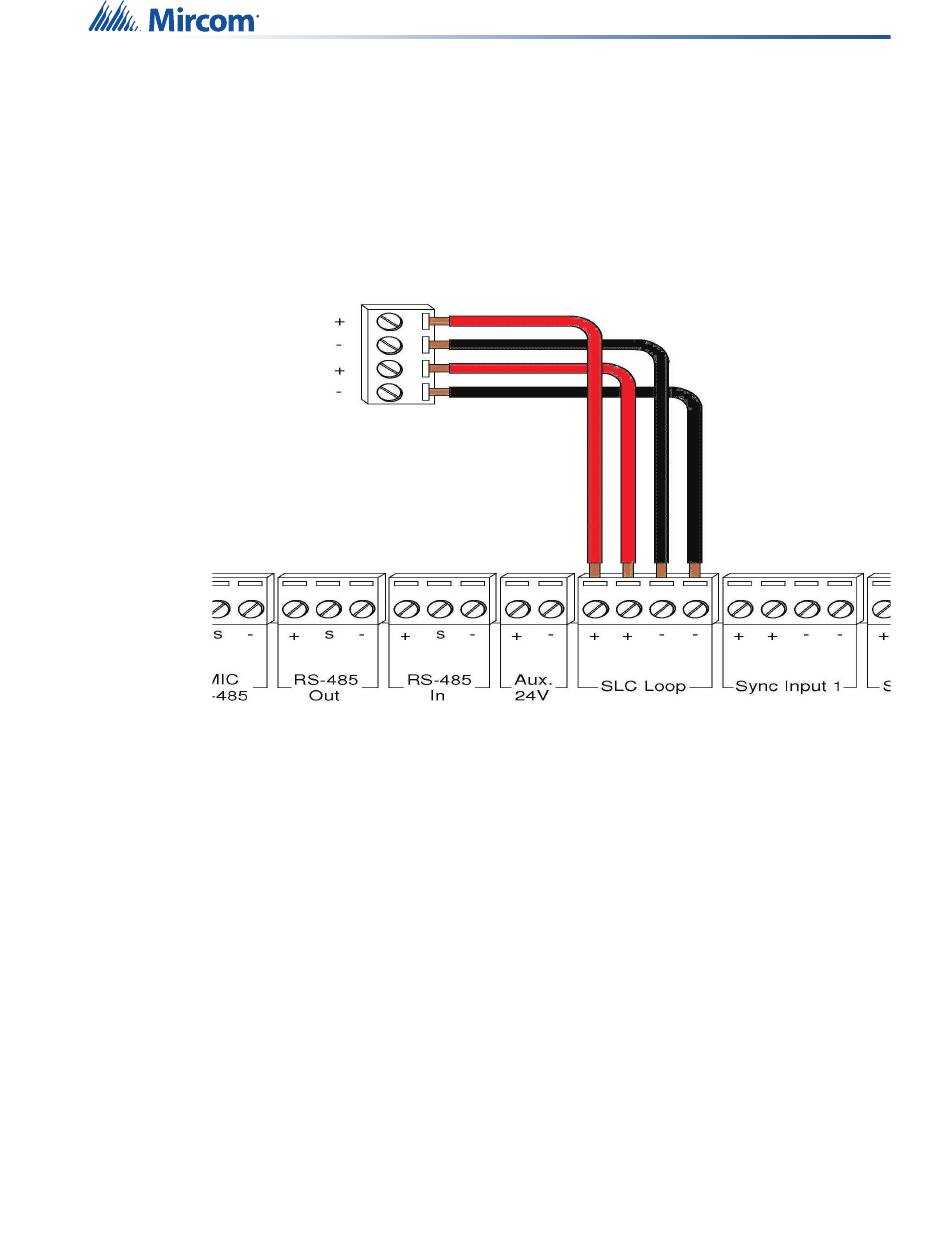

Figure 64 Class A wiring to connect FACP with QX-mini Master via SLC link

If the system is comprised of a QX-mini Master and booster panels,

only the QX-mini Master must be wired with FACP.

SLC Integration - QX-mini and FX-3500 - Two Stage
