8.3.2 QX-mini Steps
Note:
1. Open MGC ECS configurator.
2. Open an existing job or create a new job.
3. Select a unique password that will be assigned to the job specifically.
4. Define timing for page inhibit delay as per local requirements.
5. Select either Class A or Class B depending on the inter-panel wiring.
6. Click on "New Job" or "Edit Job" for an existing file and choose the SLC Type (Series:
FX-3500/FX-2000/FleX-Net™/MR-3500).

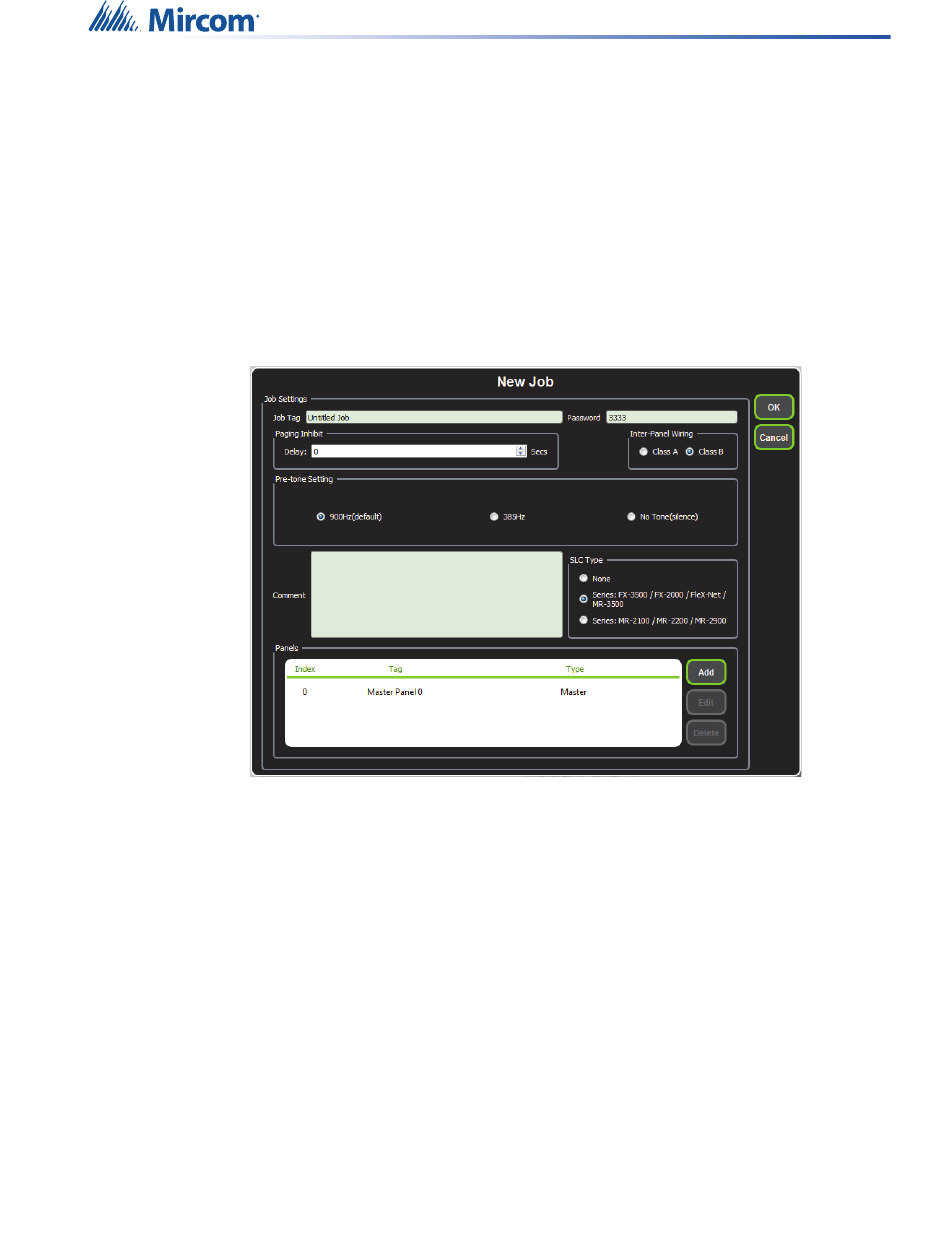

Figure 82 New Job window
7. Click on "Master Panel 0" and then click "Edit"
8. Click next until the following window appears. Choose corresponding addresses as
FACP for each reporting function. See section 8.5 on page 59 for details.
Note:
56
Until the QX-mini Master is connected and configured, missing device
troubles can be ignored.
Address 103 for common trouble corresponds to address 203 in
Figure 81. When AP start address was set, the module address range
SLC Integration - QX-mini and FX-3500 - Single Stage
