12.3.2 QX-mini Steps
1.
Open MGC ECS configurator.
2.
Open an existing job or create a new job.
3.
Select a unique password that will be assigned to the job specifically.
4.
Define timing for page inhibit delay as per local requirement.
5.
Select either Class A or Class B depending on the inter-panel wiring.
6.
Click on "New Job" or "Edit Job" for an existing file and choose "None" under SLC type.

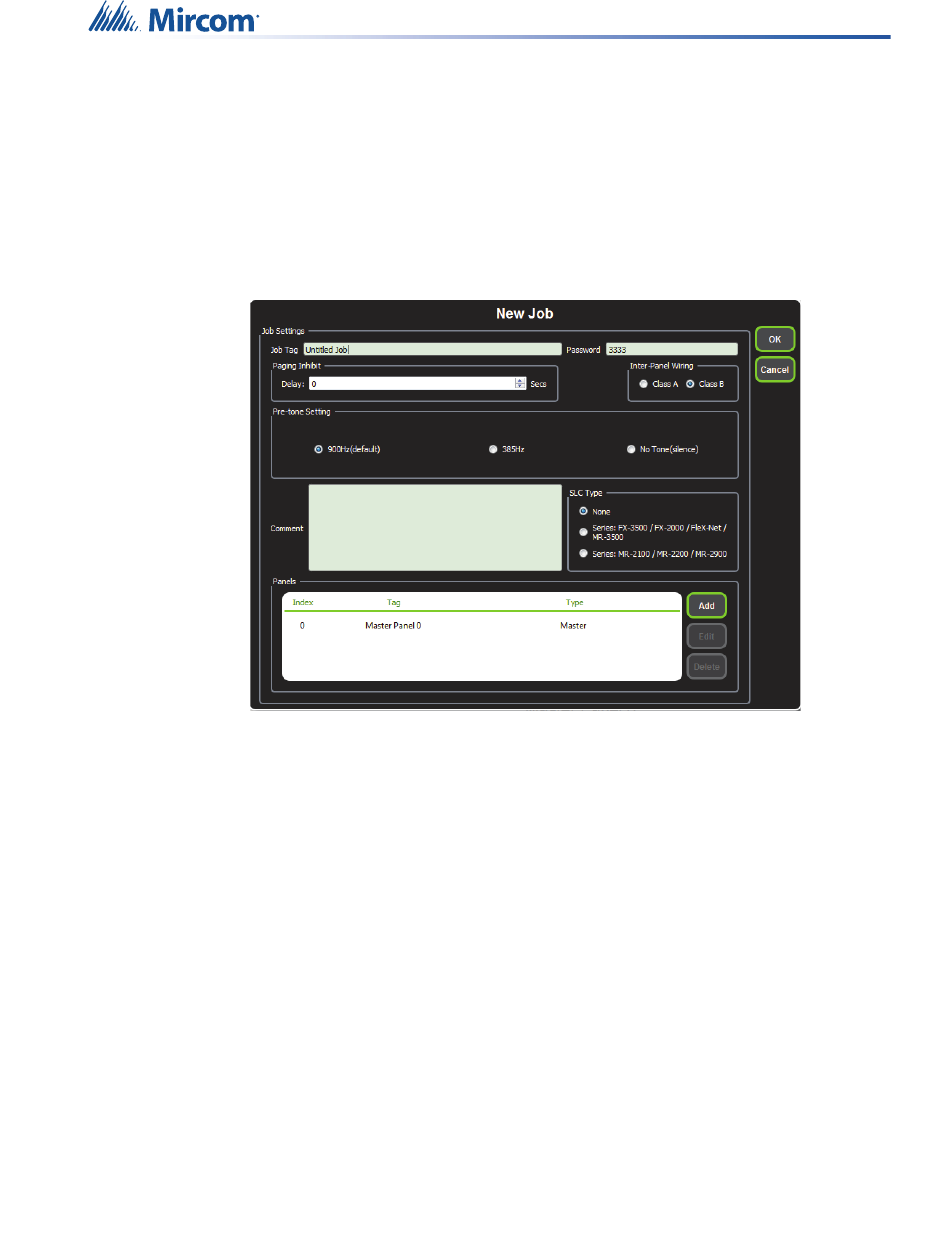

Figure 122 New Job window
7.
Click on "Master Panel 0" and then click "Edit".
Relay Input - QX-mini and FX-2000
85
