6.
Zones can be assigned to switches similarly as shown in step 5.

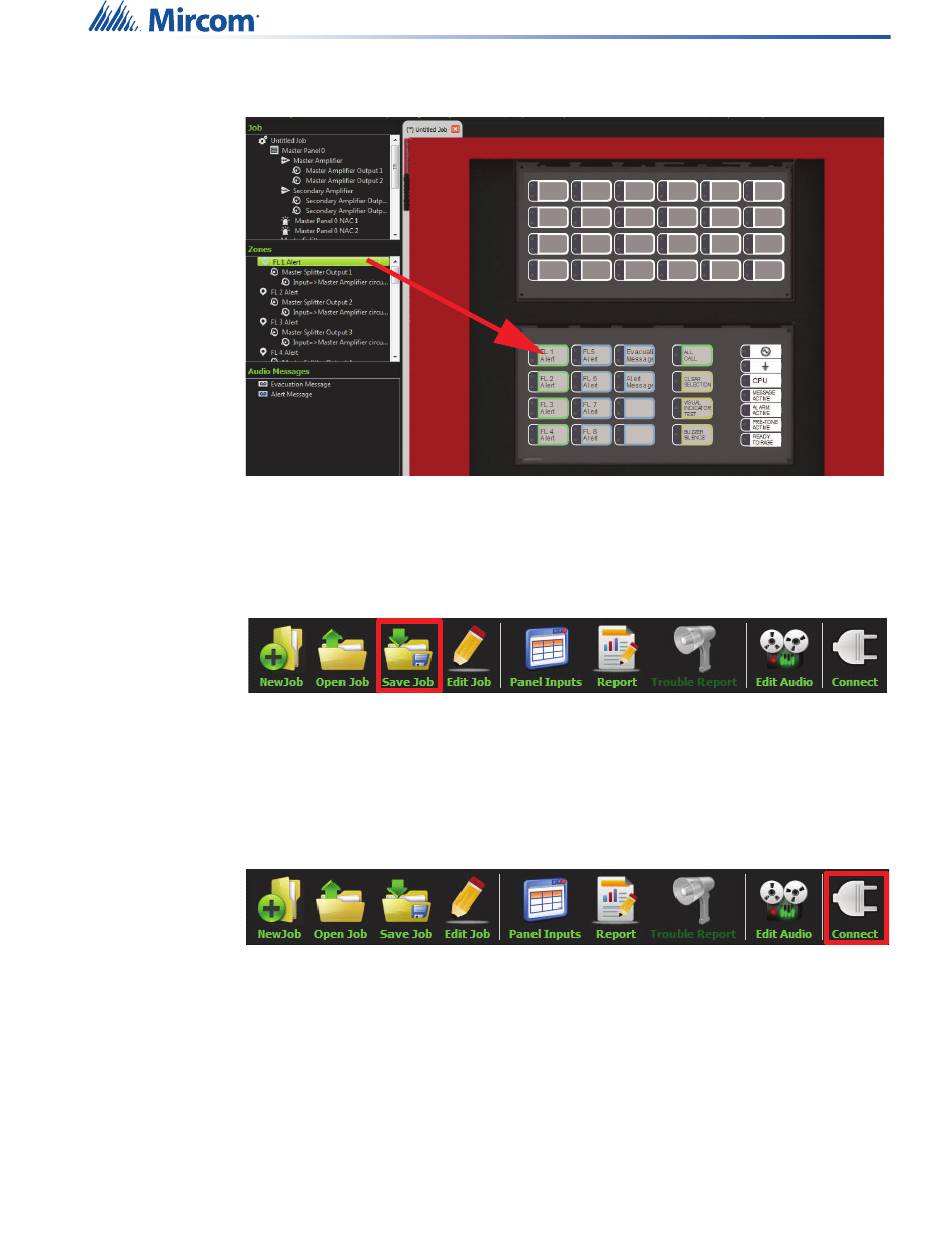

Figure 15 Click and drag the zone to the appropriate switch
2.4
Saving a Job
1.
Click "Save Job". The Configurator does not automatically save the job.
Figure 16 Save Job button
2.5
Connecting to a Panel
1.
Use the USB connector to connect to the USB port (JP1) on the panel.
2.
Click "Connect".
Figure 17 Connect button
Use left-click,
keep it pressed,
and drag
Working with the Configurator
13
