13.3.1 FX-3500 Configuration
Assign the AP Start Range
1. Open the MGC-3000 Series Configuration Utility.
2. Create a new job or open an existing job.
3. Click "Base I/O" in the Job Tree.
4. Enter "100" in the "AP Start" box to enable CLIP devices on the loop. QX-mini reporting
points are configured as CLIP devices. The "AP Start" number may vary.

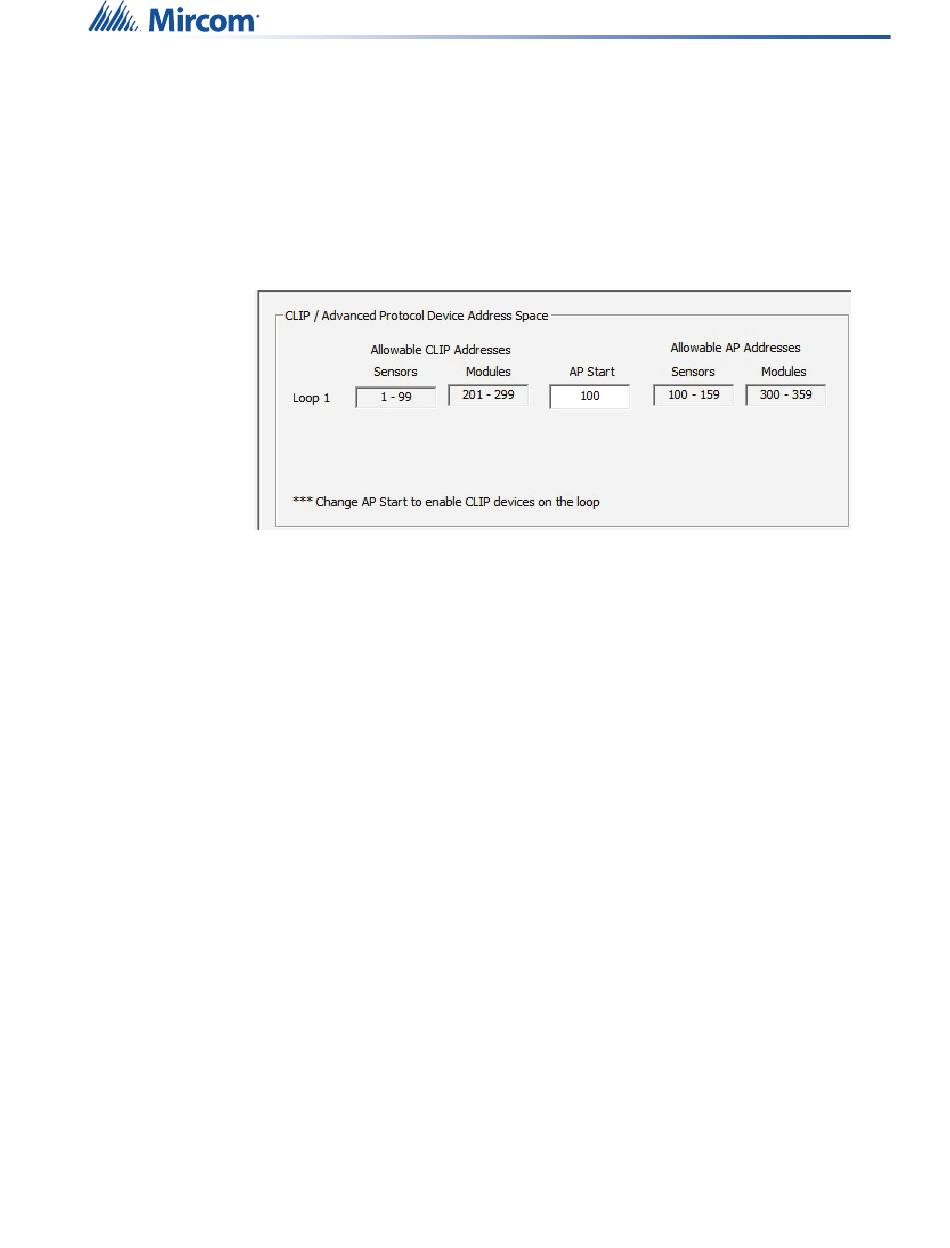

Figure 132 CLIP / Advanced Protocol Device Address Space
Note:
Configure the Output and Input Modules
1. Click the loop that is wired to the SLC terminal on the QX-mini Master.
2. Configure the output modules that will activate functions on the QX-mini, and input
modules that will listen for reporting from the QX-mini. See section 13.4 for details on the
reporting functions.
Table 1 shows an example configuration based on an 8 floor building where during an
alarm, the system provides an alarm signal to 3 floors (the floor of alarm, and the floor
above and below), and an alert signal to the other floors.
Note:
Note:
QAS-2X8 Splitter Configuration - QX-mini and FX-3500 - Two Stage
QX-mini reporting points are configurable in CLIP mode only. It is
important to change AP Start to enable CLIP devices on the loop.
These devices are integrated in the QX-mini as virtual devices and do
not need to be physically installed on the loop. The number of virtual
SLC devices depends on your configuration – you can use as many as
your job requires.
The addresses may vary depending on each application. Ensure
supervised output modules and relay output modules to activate QX-
mini zones are configured as shown below.
In this example, CLIP modules range from 201 to 299 on the FX-3500.
On the QX-mini they range from 101 to 199.
