Displays for Master and Link Units
The following displays are samples of the menu options you may see on your PRO3X unit for the PDU Linking
feature. Each unit in a PDU Linking chain displays its own PDU data (inlets, outlets, sensors, alerts, etc.)
Hardware Display Examples:

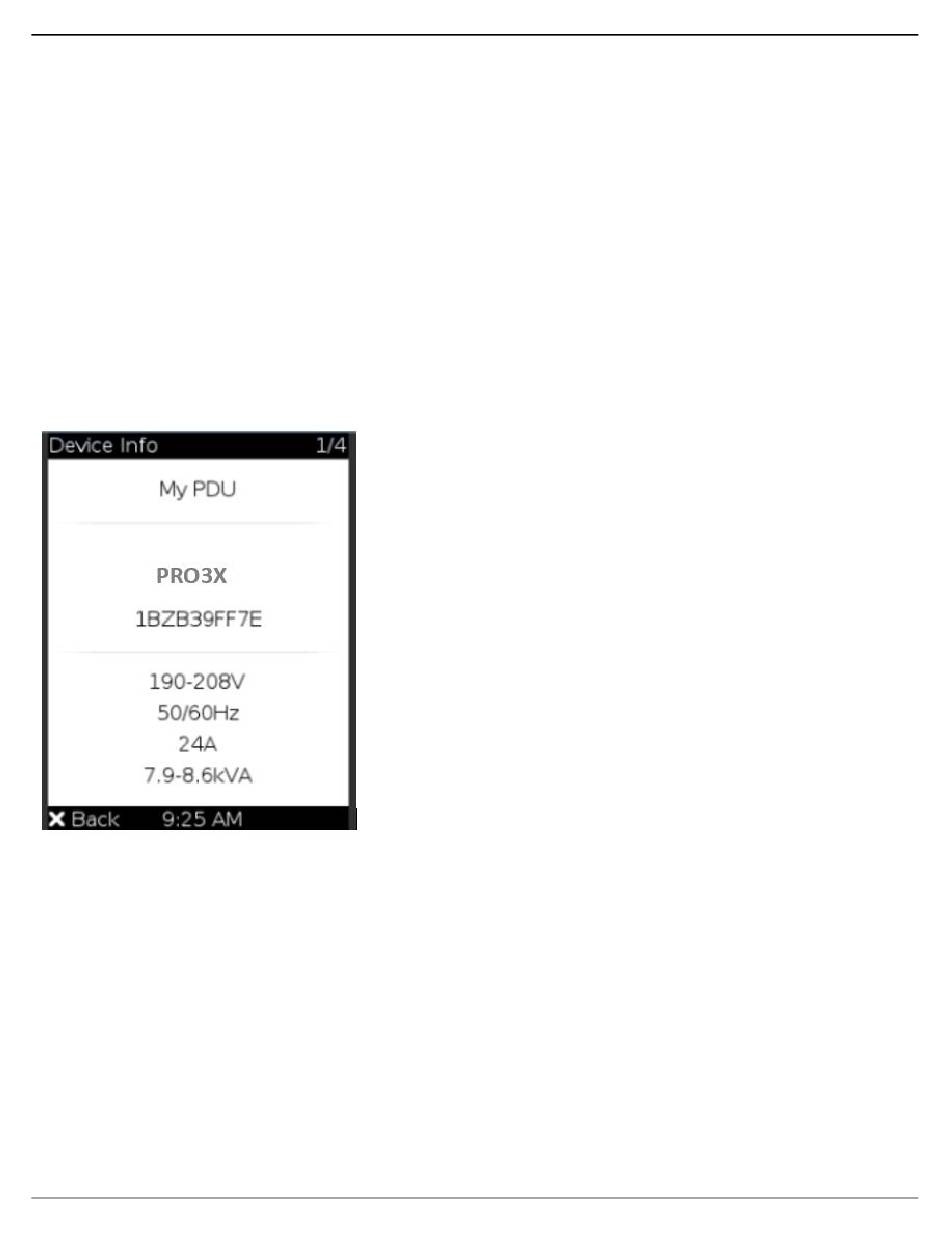

Master unit:
From the following example of the master unit display, navigate the options for displaying Link PDU identification
and status, and to confirm the master unit that is controlling the link unit in the chain.
•
Can show alarms, which may be triggered by link units.
•
PDU information shows a list of link units with host name/IP address, model, device name, serial number,
firmware version, and communication status.
Note: These samples are generic and may not look exactly like the menu options and PRO3X product SKUs
displayed on your PDU.
