To add a link unit:
1. Log in to the master PDU as shown displayed above in the PDU page.

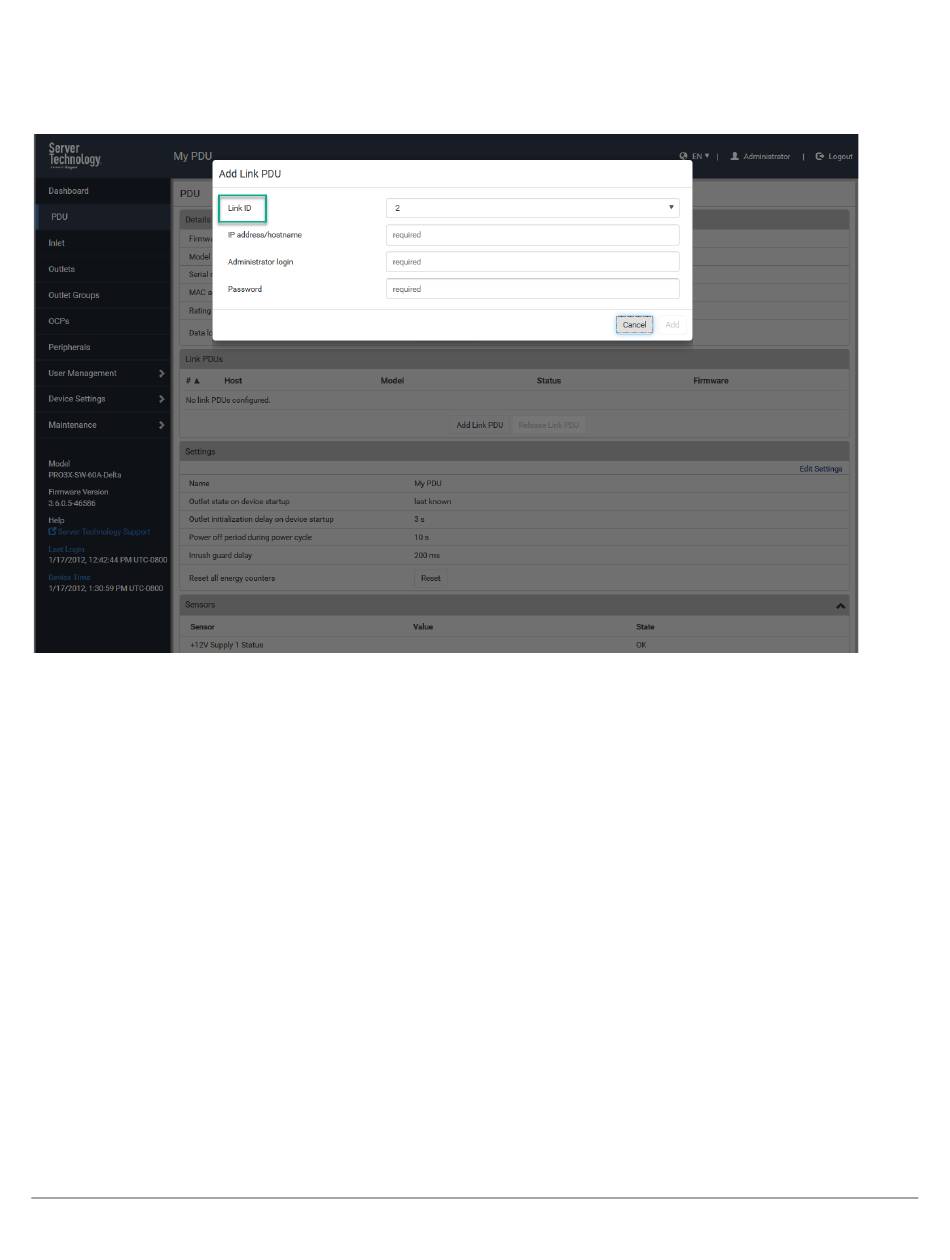

2. Click Add Link PDU. The following add box displays:
3. The Link ID is populated as the next available ID number (2-8), assigned sequentially as each link unit is
added to the chain to identify the link unit in the user interfaces.
manually select the desired Link ID to order the link units in the chain as desired. Once associated with a
link unit, the Link ID cannot be edited.
4. Provide the IP address of the link unit.
5. Provide the login credentials for the link unit.
prompted to set the new password.
6. Click Add.
Note: If the link unit has factory settings, you will be
PRO3X User Guide – Features
21 of 61
Note: From the drop-down, you can
