LEGRAND Server Technology PRO3X User Manual page 42

Using the Non-Critical Checkbox:
With Load Shedding, you can sort all PRO3X outlets into two categories: critical outlets or non-critical outlets.

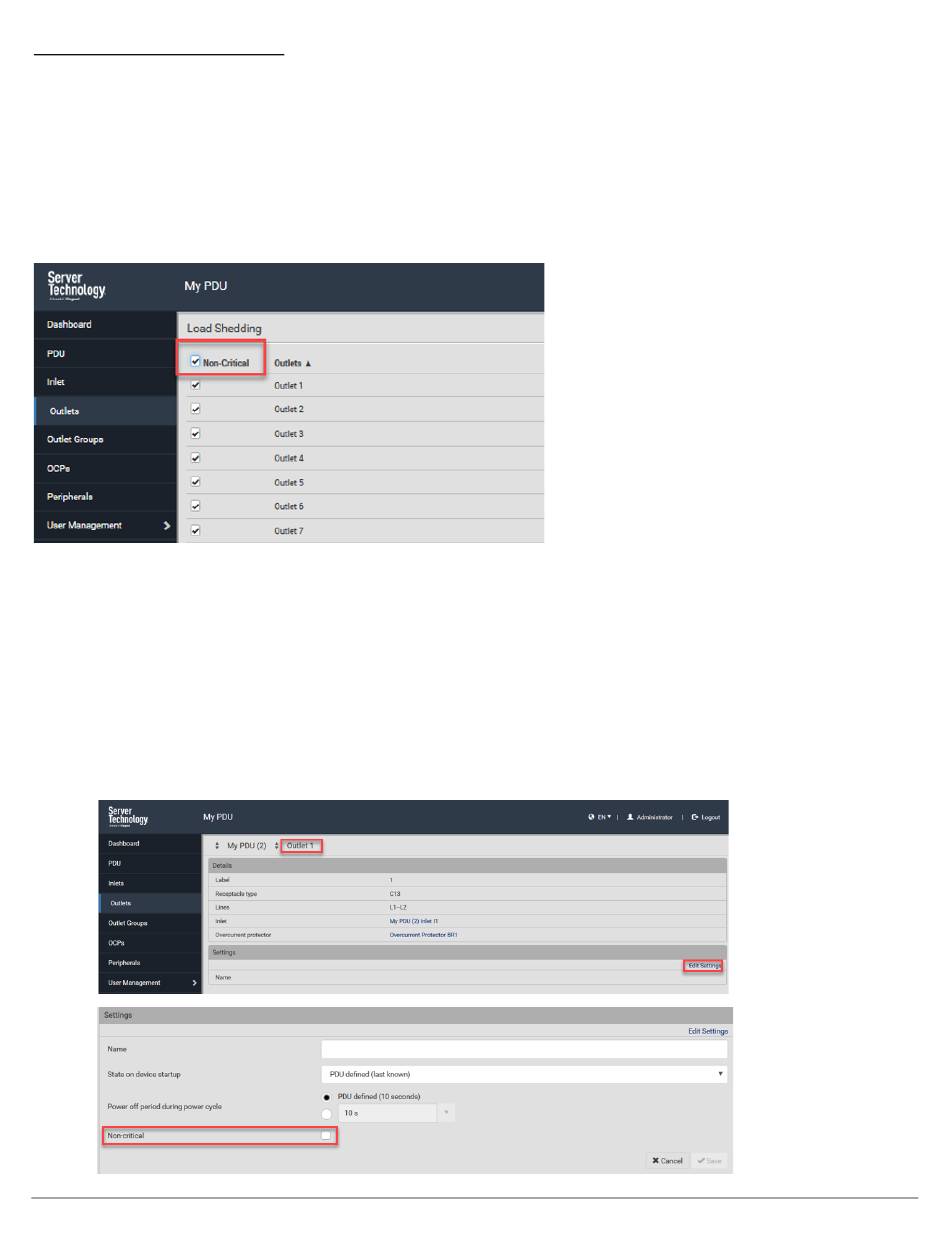

Note the Non-Critical checkbox highlighted in the Load Shedding screen sample below.
•
When the Non-Critical checkbox is checked, the selected non-critical outlet(s) are powered off when Load
Shedding is activated.
•
When the Non-Critical checkbox is not checked, the selected critical outlet(s) are not powered off when
Load Shedding is activated
Notes:
•
By default, all outlets are considered critical, and you must select one or multiple outlets and then check
the Non-Critical checkbox to make the outlet(s) non-critical to be powered off when Load Shedding is
activated.
•
When Load Shedding is activated, all non-critical outlets are turned off and critical outlets stay on, if those
outlets were on before Load Shedding was activated.
•
You can also access the Non-Critical checkbox from the Outlets page (for an individual outlet) on the Edit
Settings link, as follows:
PRO3X User Guide – Features
42 of 61
