Chapter 3: NIM8G Controller Board

Server Technology's PRO3X PDU was designed with a new NIM controller board, the Raritan NIM8G Xerus, the
industry communication standard for many high-density data centers.

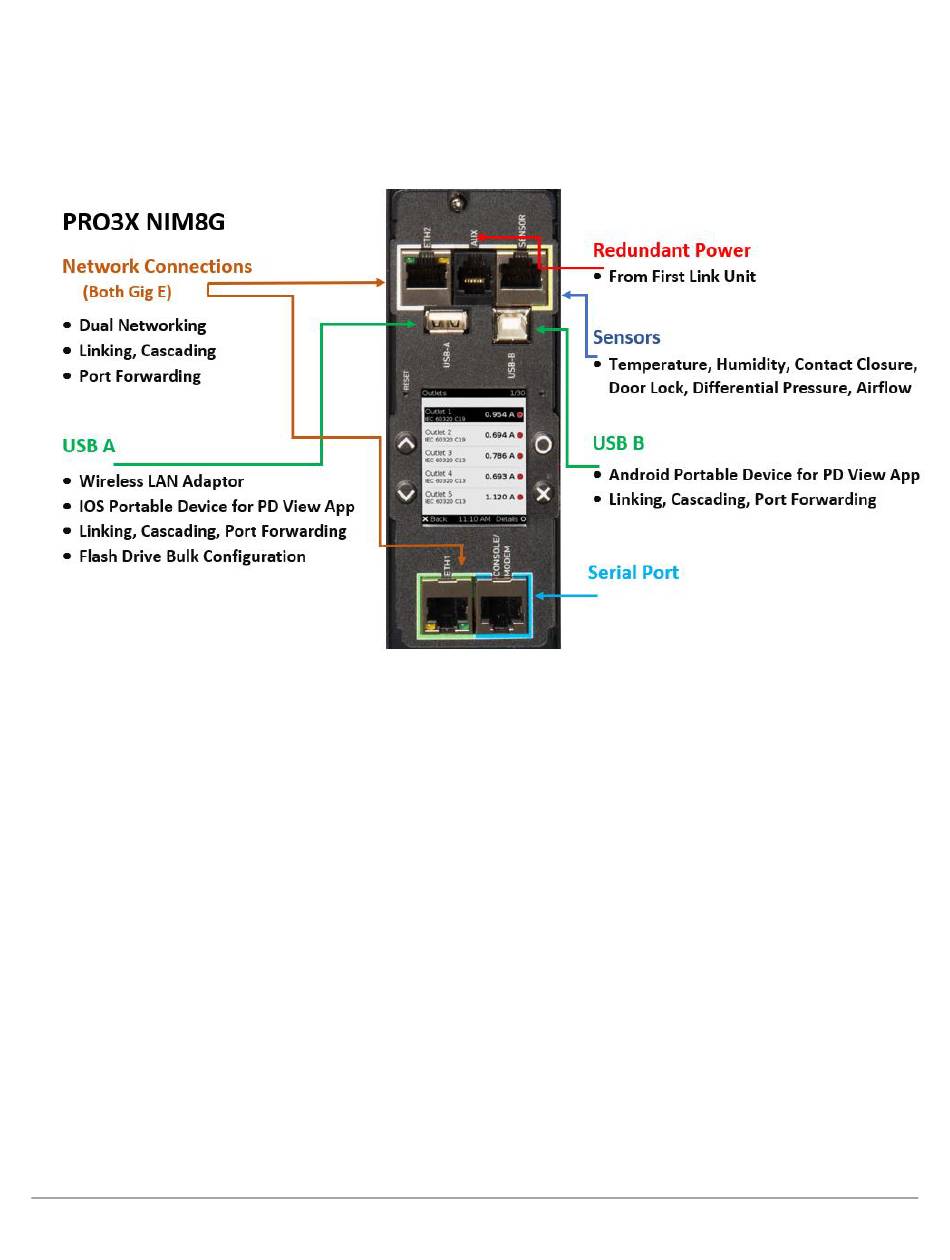

The following graphics illustrate the NIM8G controller board, including port connections:
Highlights of the NIM8G Controller Board:
•
Hot-swappable (Contact Server Technology Technical Support to coordinate getting a new network card.)
•
Redundant failover power through the first link PDU.
•
V8-based controller designed for Server Technology's PRO3X form factor
•
Color matrix LCD
