Switching Between Master and Link Outlets
The Outlets page defaults to the master unit's outlets, but you can easily switched the master to the link and back
again to view and access outlet information.

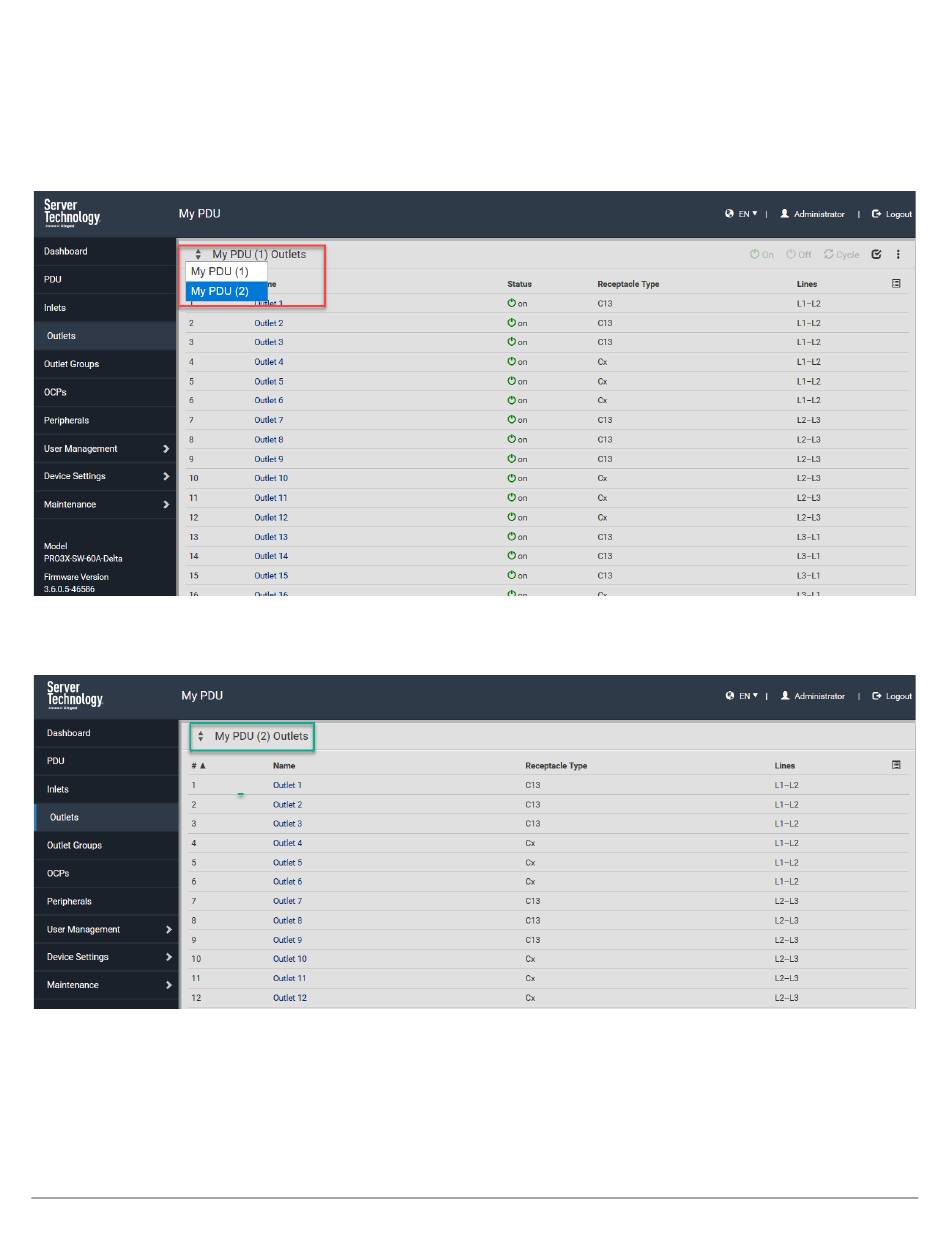

1. From the Outlets page drop-down, select the link unit "My PDU (2)" shown in this example. To view outlets
for multiple link units, select the link unit by name.
2. Sample of outlets page for Link PDUs, in this example "My PDU (2)".
viewing and access exactly like the outlets of the master unit.
3. You can switch back to the master unit by selecting "My PDU (1)".
Note: The Switch control is only available when there is at least one link unit in the chain; otherwise, the
page defaults to the outlets of the master.
PRO3X User Guide – Features
33 of 61
All outlets of the link unit display for
