Viewing Link Unit Information
When a link unit is added to the chain, the master unit view (through the GUI) allows full access to the operational
data of the link unit. For example, using the navigation tabs of the GUI, link unit data is displayed in several pages:
the Dashboard, PDUs, Inlets, Outlets, Outlet Groups, and Peripherals.
Dashboard
The Dashboard shows inlets, OCPs, alerted sensors, and inlet history for the entire linked chain.

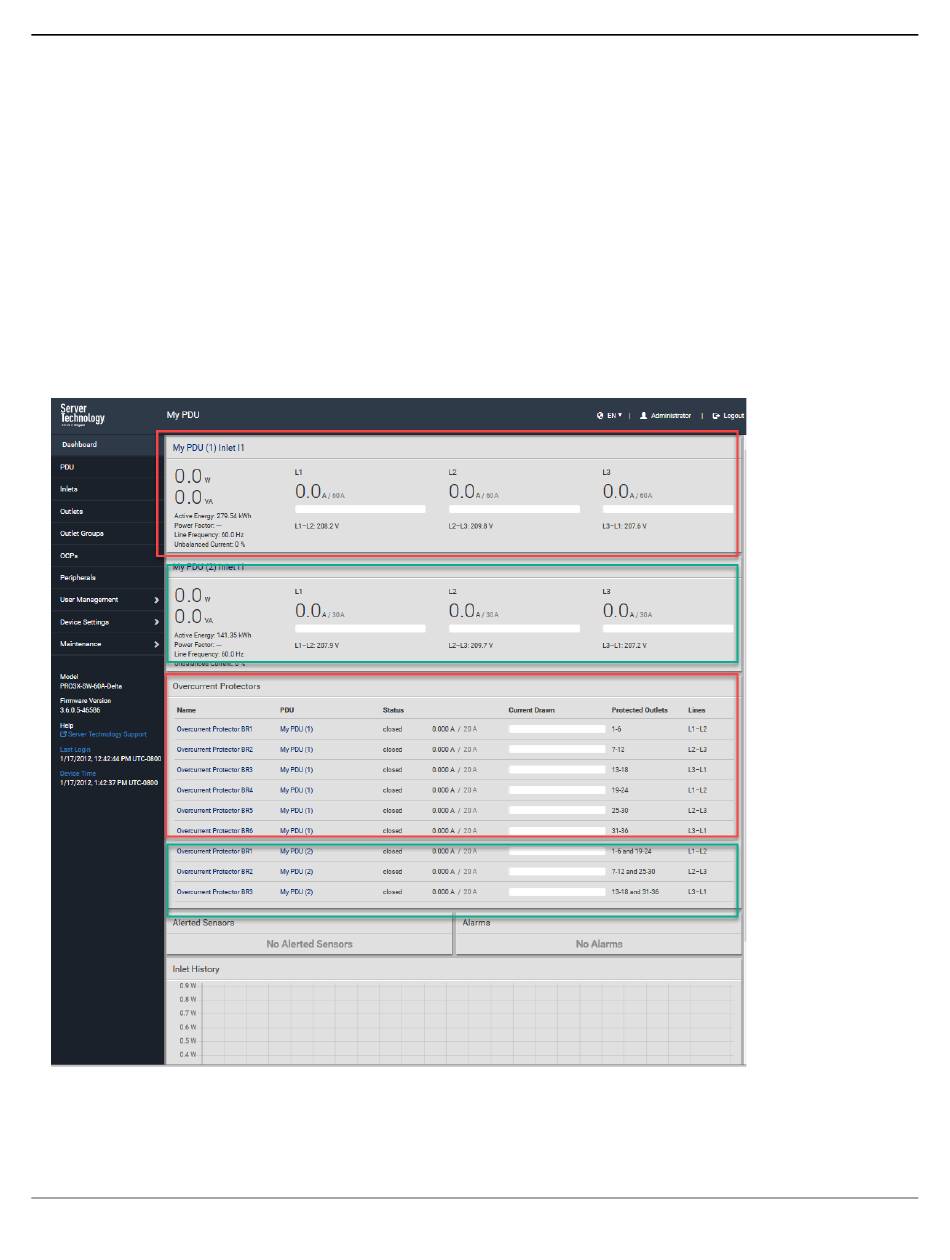

In this example, data for the single inlet of the master "My PDU (1)" Inlet I1 (highlighted in red), and the inlet of
the link unit "My PDU (2)" Inlet I1 (highlighted in green), are displayed together. The OCPs for the units are also
available together on the Dashboard page.
Peripheral sensors are not shown on the dashboard by default. Only sensors (both PDU or peripheral) in warned
or critical state are displayed in the Alerted Sensors section.
