LEGRAND Server Technology PRO3X User Manual page 46

To add an outlet group:
1. On the Outlet Groups page, click
outlets in the master unit.
2. Type a name for the new outlet group.
3. Select individual member outlets for the master as shown in the default page, or to select all outlets for
the master, select My PDU (1).
4. To select individual member outlets for the link unit My PDU (2), click Add Outlets. To select all outlets for
the link unit, select My PDU (2).
5. Click Save.

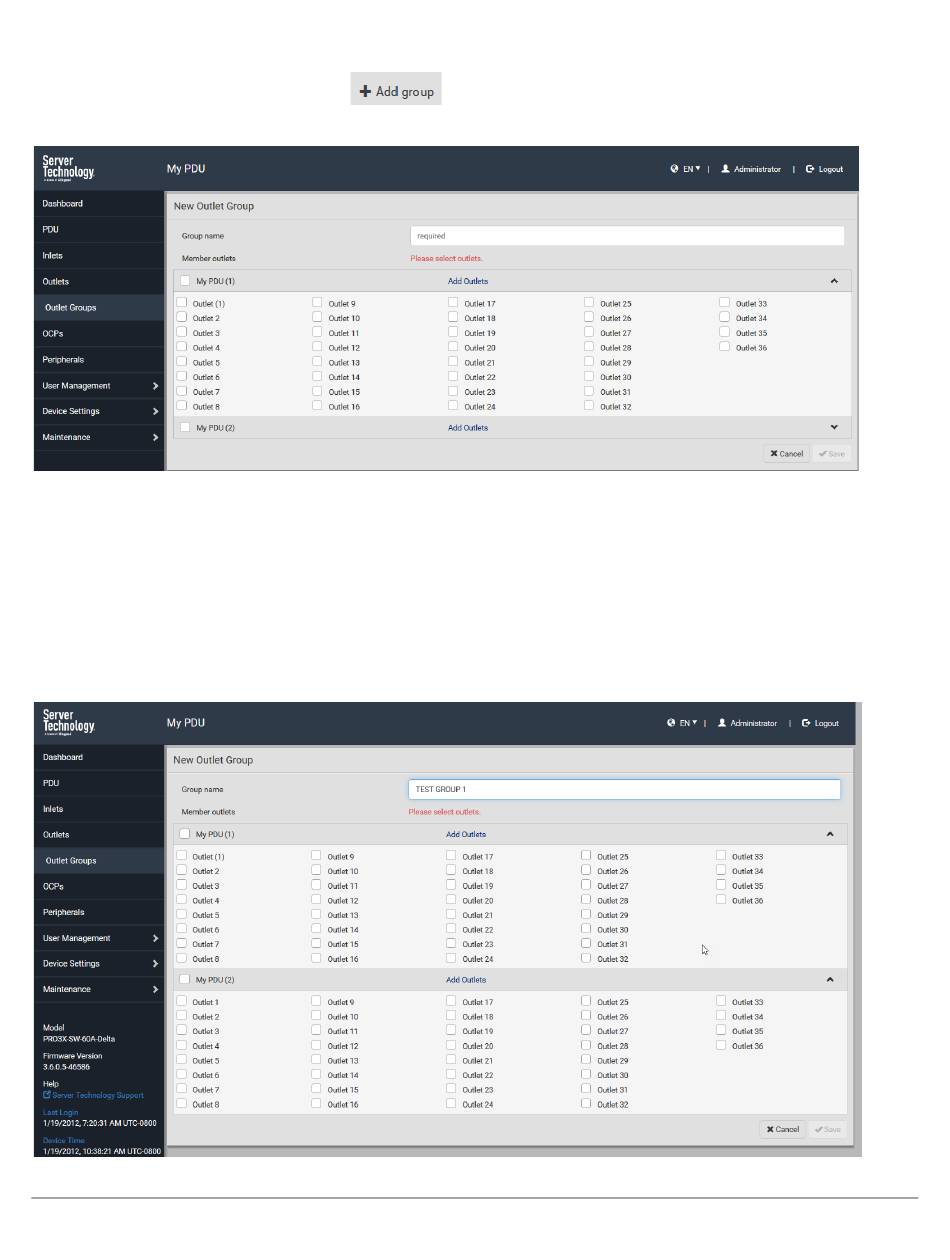

The following example shows the outlet group named "TEST 1" with all outlet members selected for the master
unit and outlet members 1-6 selected for the link unit.
. The New Outlet Group page displays, defaulting to the
Note: Link units have to be selected by name to display their outlets.
PRO3X User Guide – Features
46 of 61
