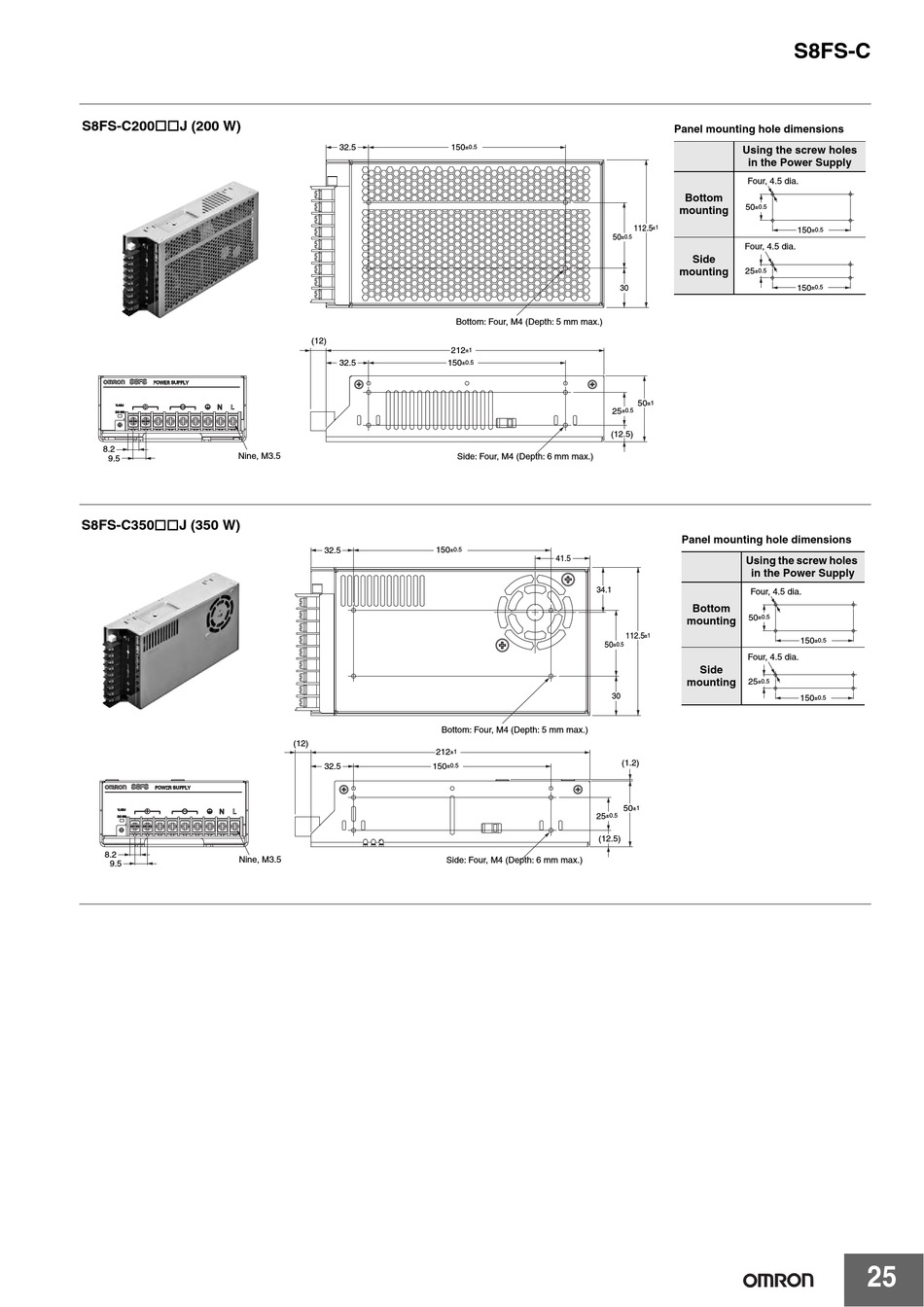

S8FS-C200J (200 W)
8.2
Nine, M3.5
9.5
S8FS-C350J (350 W)
8.2
Nine, M3.5
9.5
32.5 150 ±0.5
Bottom: Four, M4 (Depth: 5 mm max.)
(12)
212 ±1
150
32.5 ±0.5
Side: Four, M4 (Depth: 6 mm max.)
32.5 150
±0.5
Bottom: Four, M4 (Depth: 5 mm max.)
(12)
212 ±1
32.5 150
±0.5
Side: Four, M4 (Depth: 6 mm max.)
Panel mounting hole dimensions
Bottom
mounting
112.5 ±1
50
±0.5
Side
mounting
30
50
±1
25
±0.5
(12.5)
Panel mounting hole dimensions
41.5
34.1
Bottom
mounting
112.5
±1
50 ±0.5
Side
mounting
30
(1.2)
50 ±1
25 ±0.5
(12.5)
S8FS-C
Using the screw holes
in the Power Supply
Four, 4.5 dia.
50
±0.5
150
±0.5
Four, 4.5 dia.
25
±0.5
150
±0.5
Using the screw holes
in the Power Supply
Four, 4.5 dia.
50
±0.5
150
±0.5
Four, 4.5 dia.
25
±0.5
150
±0.5
