Omron S8FS-C Series Manual page 13

Connections

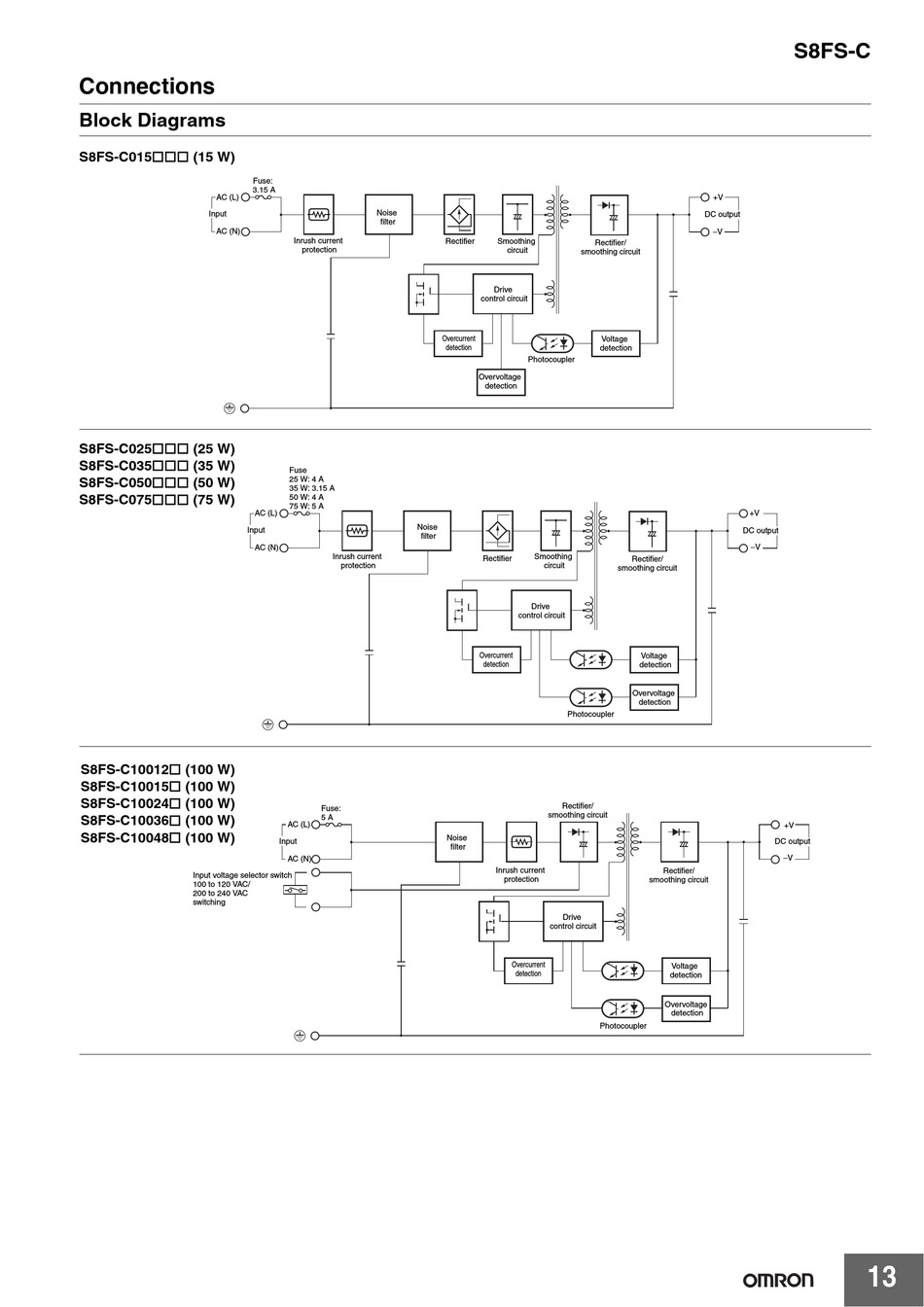

Block Diagrams
S8FS-C015 (15 W)
Fuse:
3.15 A
AC (L)
Input
AC (N)
S8FS-C025 (25 W)
S8FS-C035 (35 W)
S8FS-C050 (50 W)
S8FS-C075 (75 W)
Input
S8FS-C10012 (100 W)
S8FS-C10015 (100 W)
S8FS-C10024 (100 W)
S8FS-C10036 (100 W)
S8FS-C10048 (100 W)
Input voltage selector switch
100 to 120 VAC/
200 to 240 VAC
switching
Noise
filter
Inrush current
protection
Fuse
25 W: 4 A
35 W: 3.15 A
50 W: 4 A
75 W: 5 A
AC (L)
Noise
filter
AC (N)
Inrush current
protection
Fuse:
5 A
AC (L)
Input
AC (N)
Rectifier Smoothing
Rectifier/
circuit
smoothing circuit
Drive
control circuit
Overcurrent
Voltage
detection
detection
Photocoupler
Overvoltage
detection
Smoothing
Rectifier
circuit
Drive
control circuit
Overcurrent
detection
Photocoupler
Rectifier/
smoothing circuit
Noise
filter
Inrush current
protection
Drive
control circuit
Overcurrent
detection
Photocoupler
+V
DC output
−V
+V
DC output
−V
Rectifier/
smoothing circuit
Voltage
detection
Overvoltage
detection
+V
DC output
−V
Rectifier/
smoothing circuit
Voltage
detection
Overvoltage
detection
S8FS-C
